SW490-TH14 : 490MHz UHF Copper Spring Antenna
SW490-TH14, a copper spring antenna, designed specially for 490MHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 490±5 MHz
- VSWR: ≤ 1.8
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 5 W

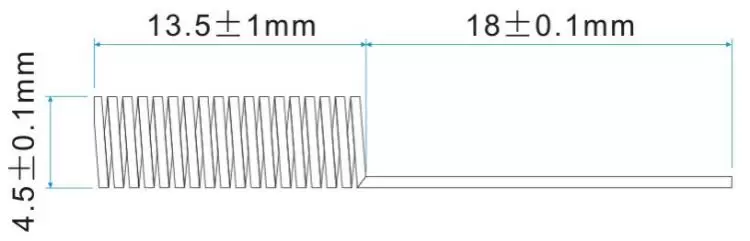

- Height: 13.5±1 mm
- Interface form: welding directly
- Antenna Color: copper
- Weight: 1.5 g
- Wire diameter: 0.5mm
| Frequency | 470/490MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 15 |
| Material & Technology | Copper |

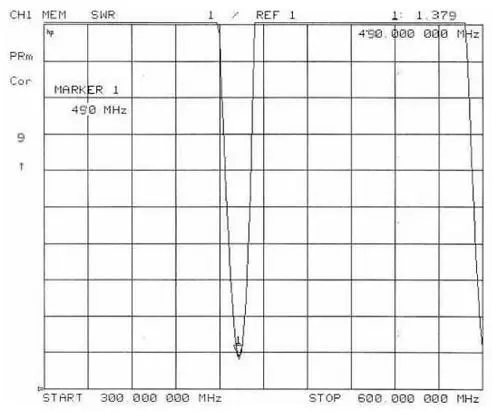

Antennas have been tested under wireless simulated environment by Network Analyzer.
