SW433-TH11 : 433MHz Copper Spring Antenna With Black Tube
SW433-TH11,copper spring antenna, designed specially for 433MHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Spring Antenna SW433-TH11
- Frequency Range: 433±5 MHz
- VSWR: ≤ 2.0
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Wire diameter: 0.5mm

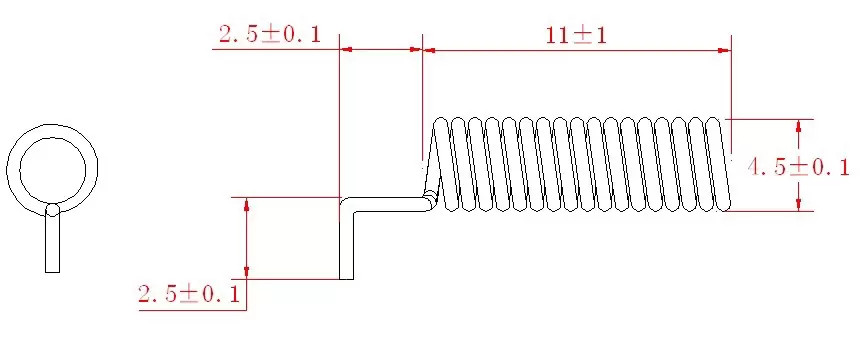

- Height: 11±1 mm
- Interface form: welding directly
- Antenna Color: copper(Black casing)
- Weight: 2 g
| Frequency | 433MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 15 |
| Material & Technology | Copper |
Antennas have been tested under wireless simulated environment by Network Analyzer.
