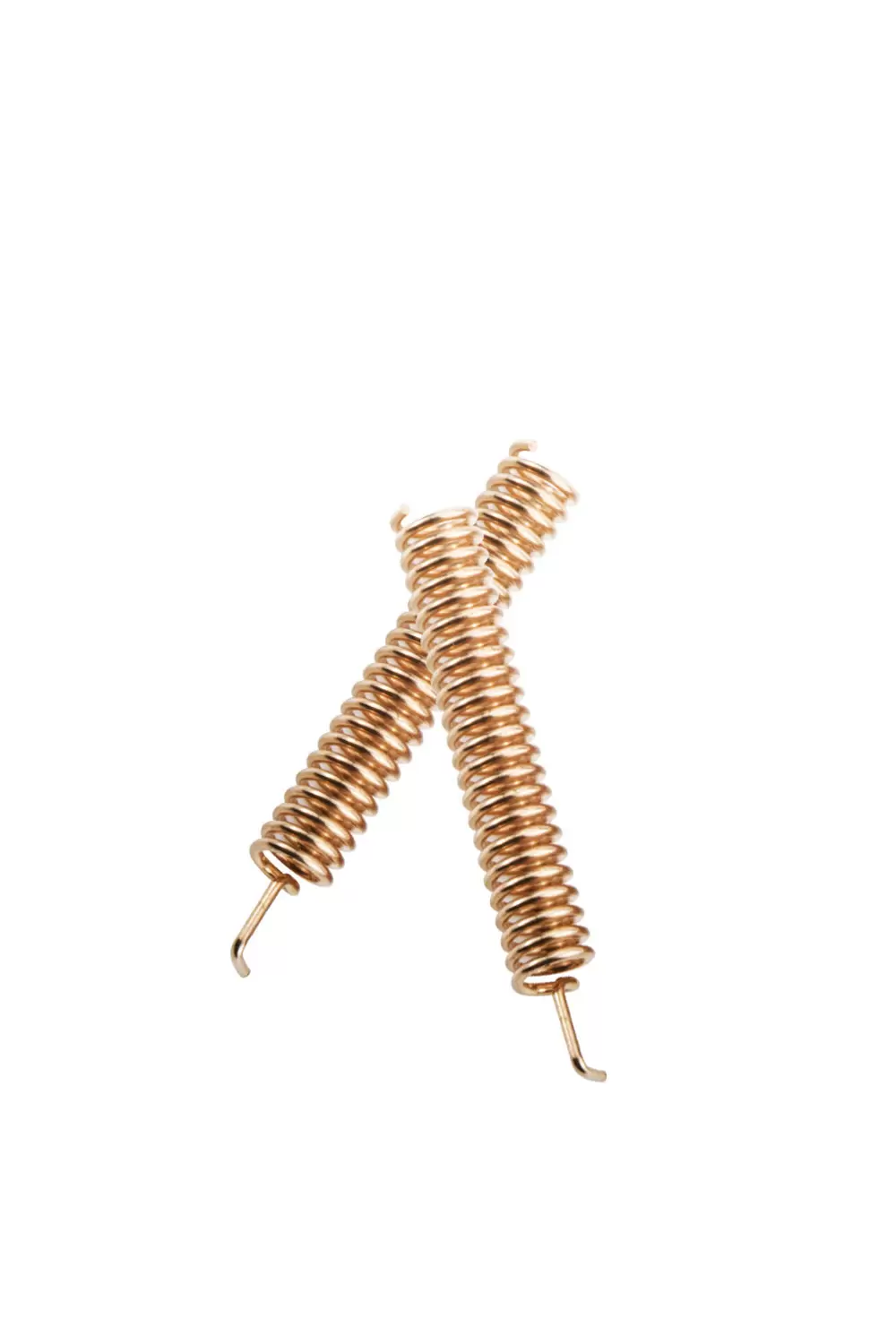

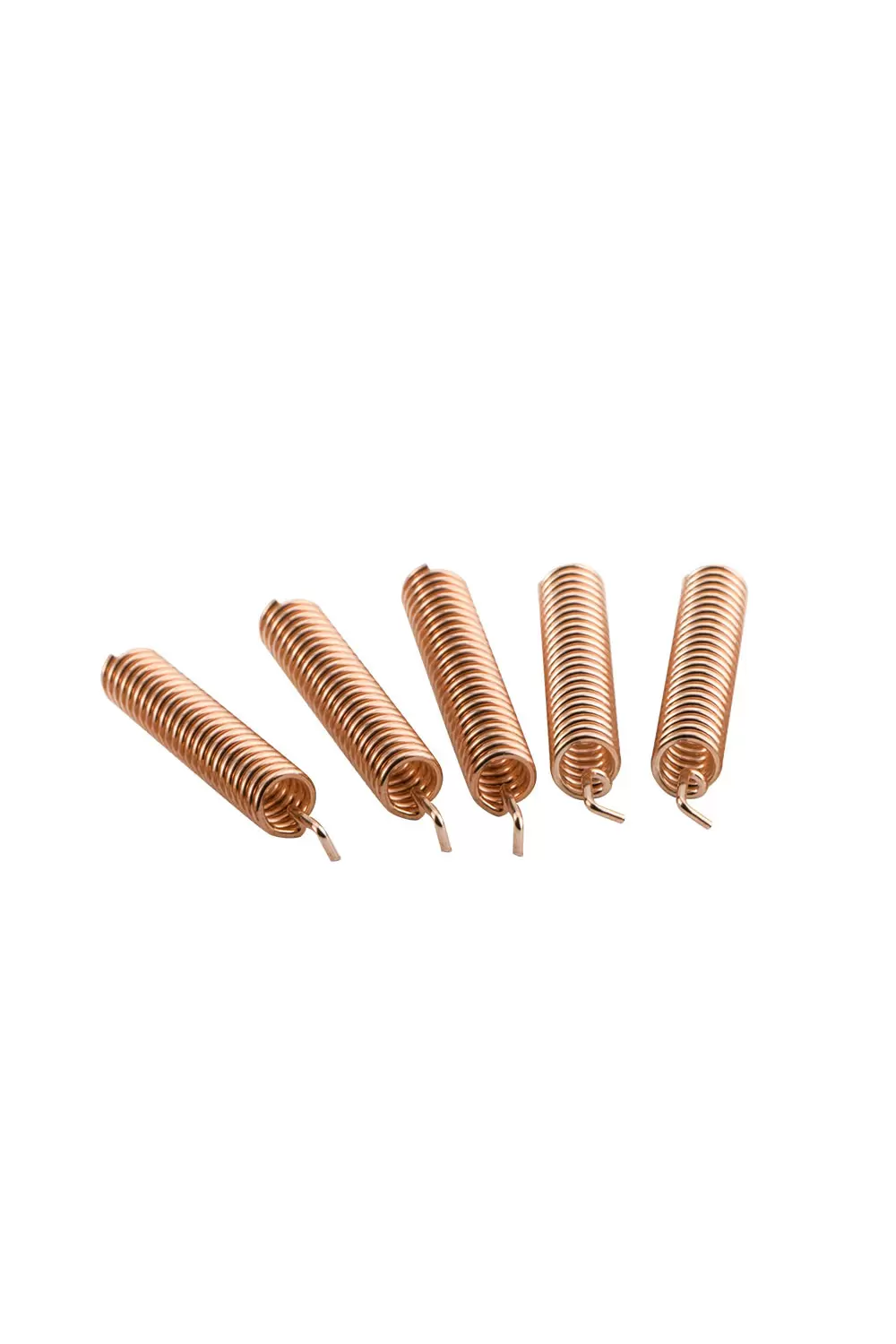

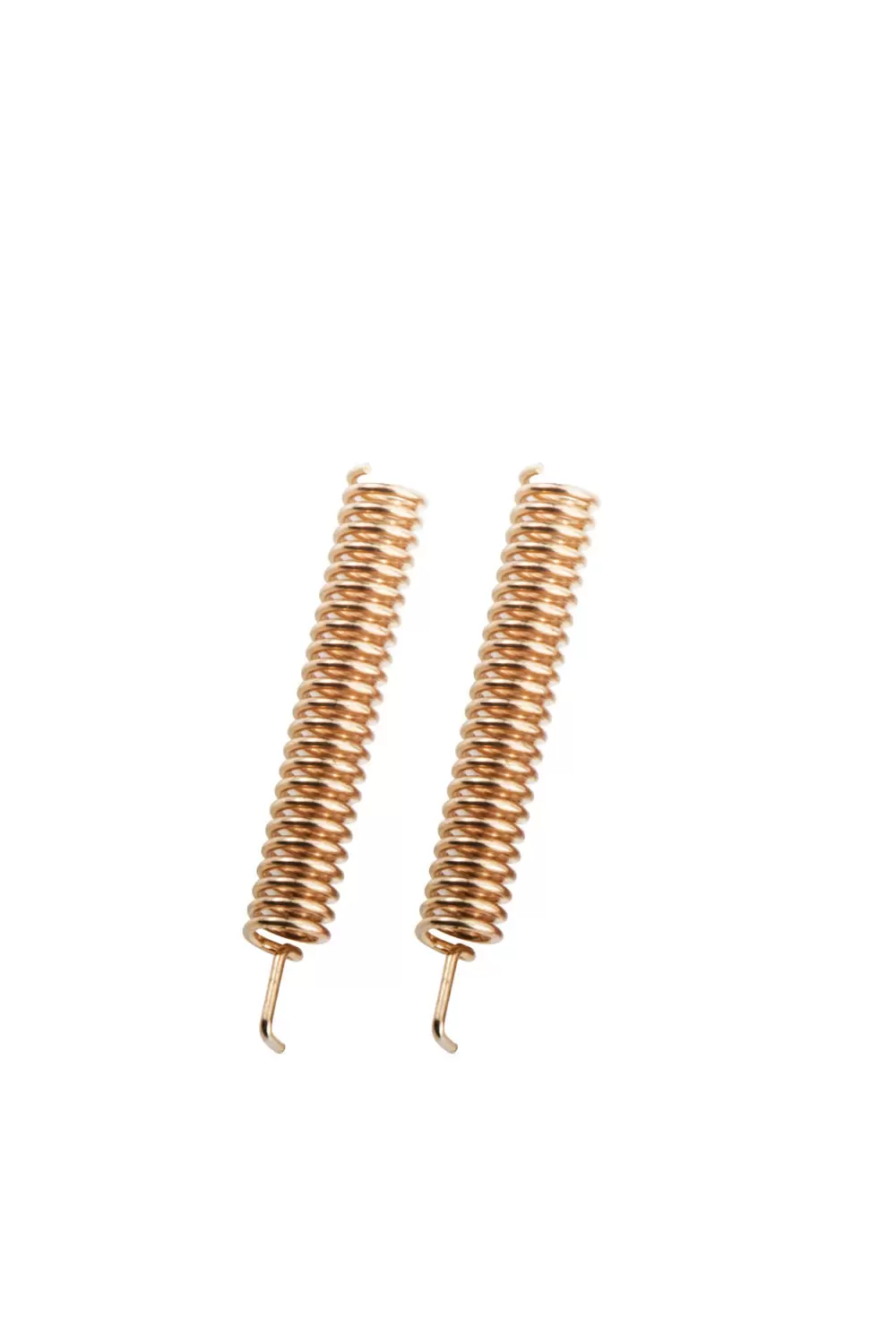

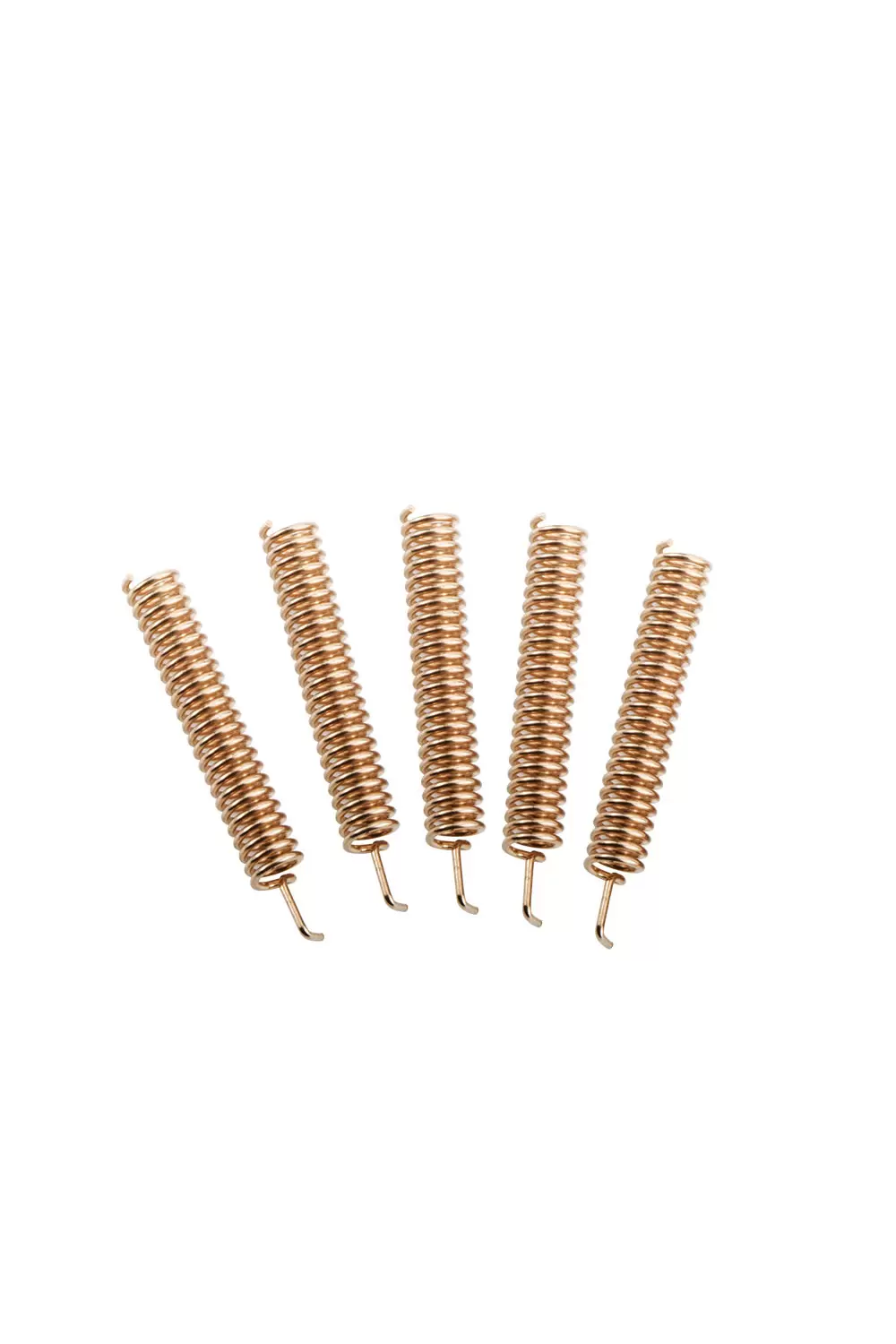

SW433-TH32 : 433MHz Copper Spring Antenna
SW433-TH32, copper spring antenna, designed specially for 433MHz wireless communication. It has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Spring Antenna SW433-TH32
- Frequency Range: 433 ±5 MHz
- VSWR: ≤ 1.5
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 5 W
- Height: 32±1 mm
- Interface form: welding directly
- Antenna Color: copper
- Weight: 2 g
- Wire diameter: 0.8mm
| Frequency | 433MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 40 |
| Material & Technology | Copper |
Antennas have been tested under wireless simulated environment by Network Analyzer.
Frequency：434 MHz RL:20.32dB SWR：1.062
