SW433-TH22 : 433MHz Gold Plated Helical Spring Antenna
SW433-TH22, gold plated spring antenna, designed specially for 433MHz wireless communication. it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Spring Antenna SW433-TH22
- Frequency Range: 433±8 MHz
- VSWR: ≤ 1.5
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Wire diameter: 0.5mm
- Max power: 5 W

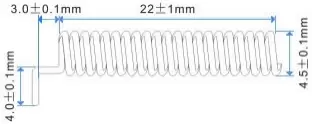

- Height: 22±1 mm
- Interface form: welding directly
- Antenna Color: gold
- Weight: 1g
| Frequency | 433MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 30 |
| Material & Technology | Gold plated |

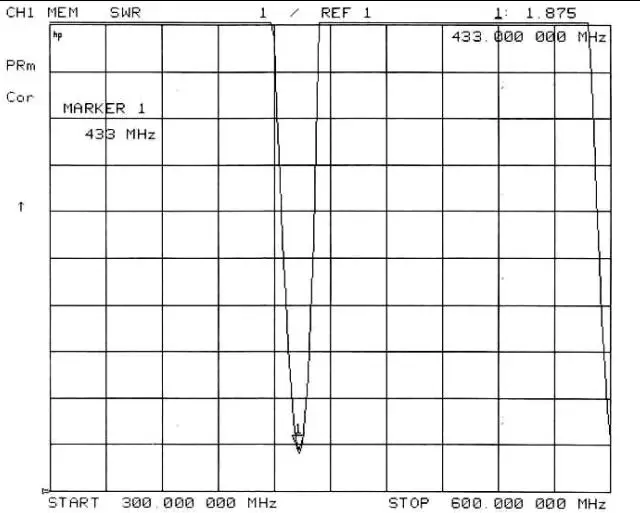

Antennas have been tested under wireless simulated environment by Network Analyzer.
Frequency：434 MHz RL:14.44dB SWR：1.464
