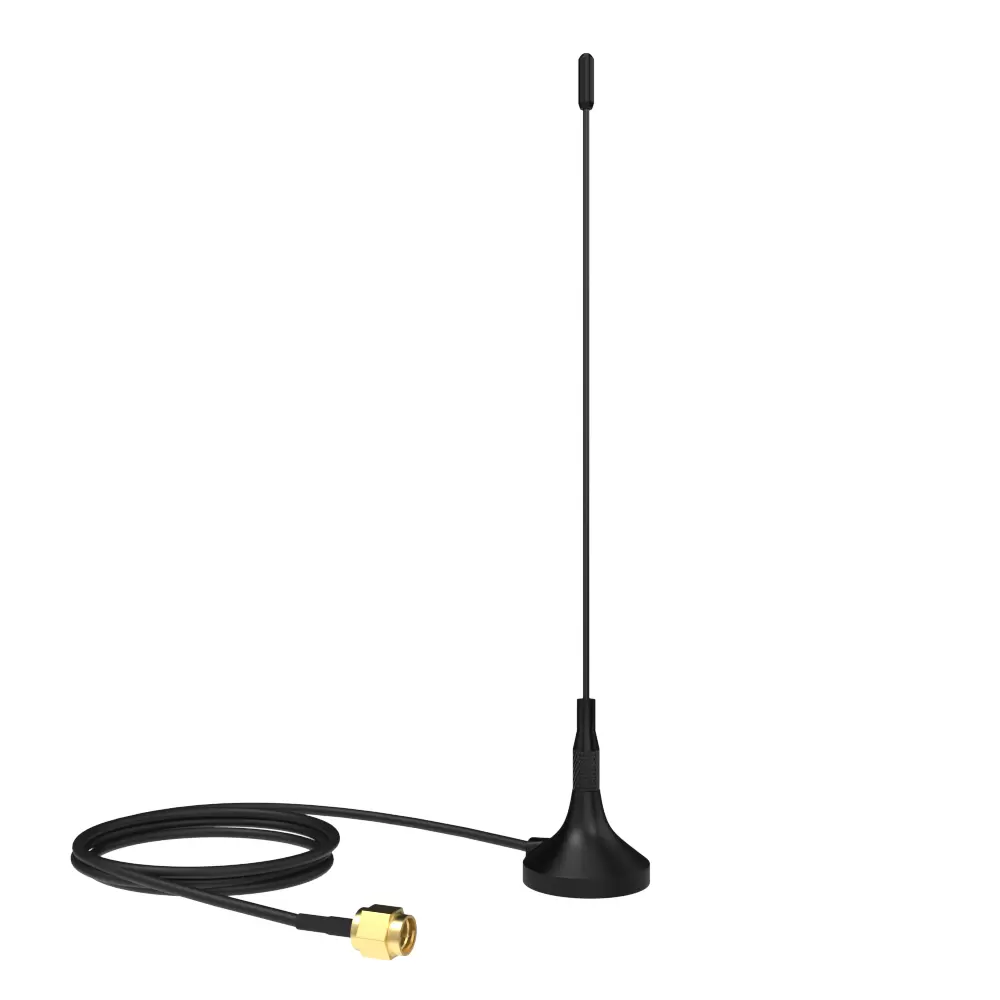

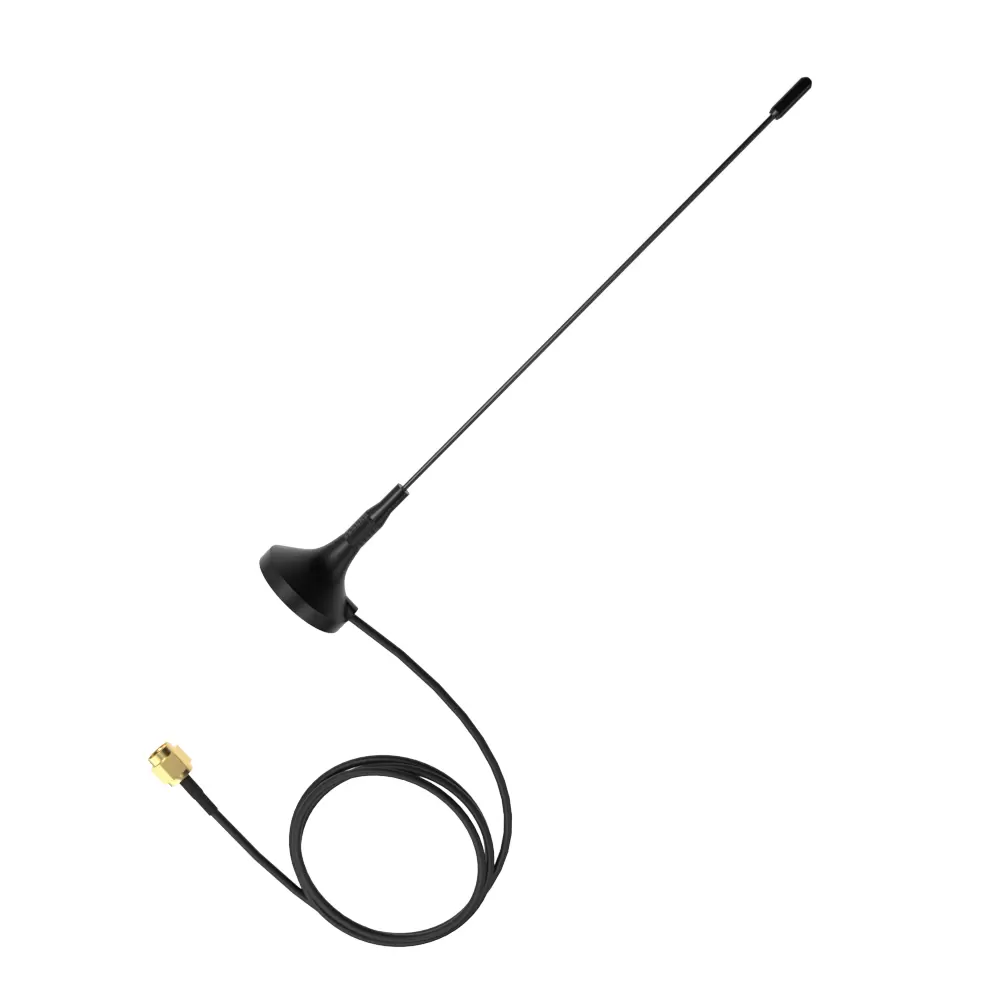

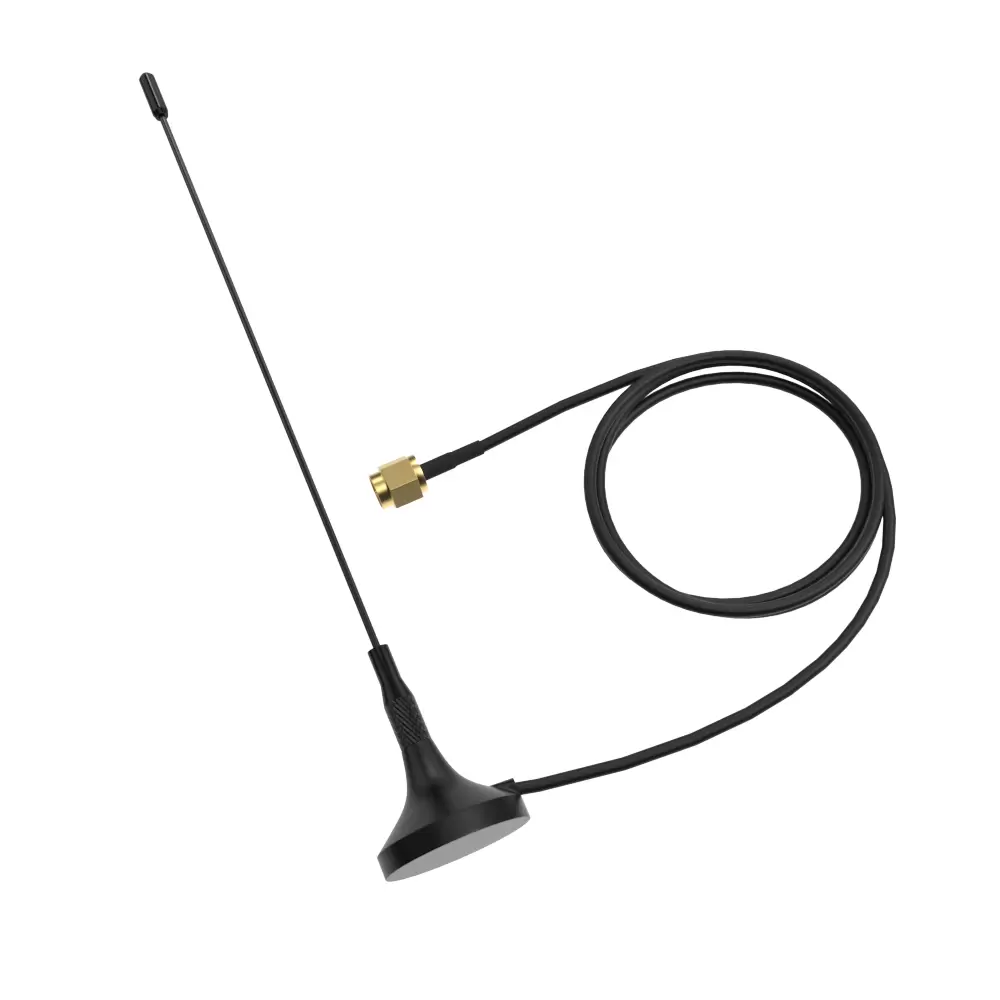

SW433-ZXPXM : 433MHz small sucker antenna

SW433-ZXPXM, small sucker antenna, designed specially for 433MHz wireless communication, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.


Contact us
Download


Frequency Range: 433±10 MHz

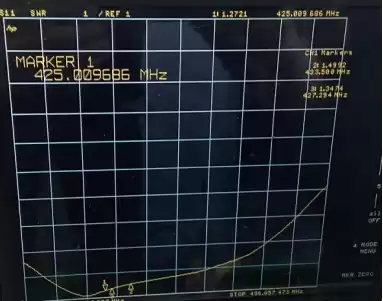

VSWR: ≤ 1.5

Gain: 3.0 dBi

Input impedance: 50 Ω

Max power: 10 W

Polarization: vertical polarization

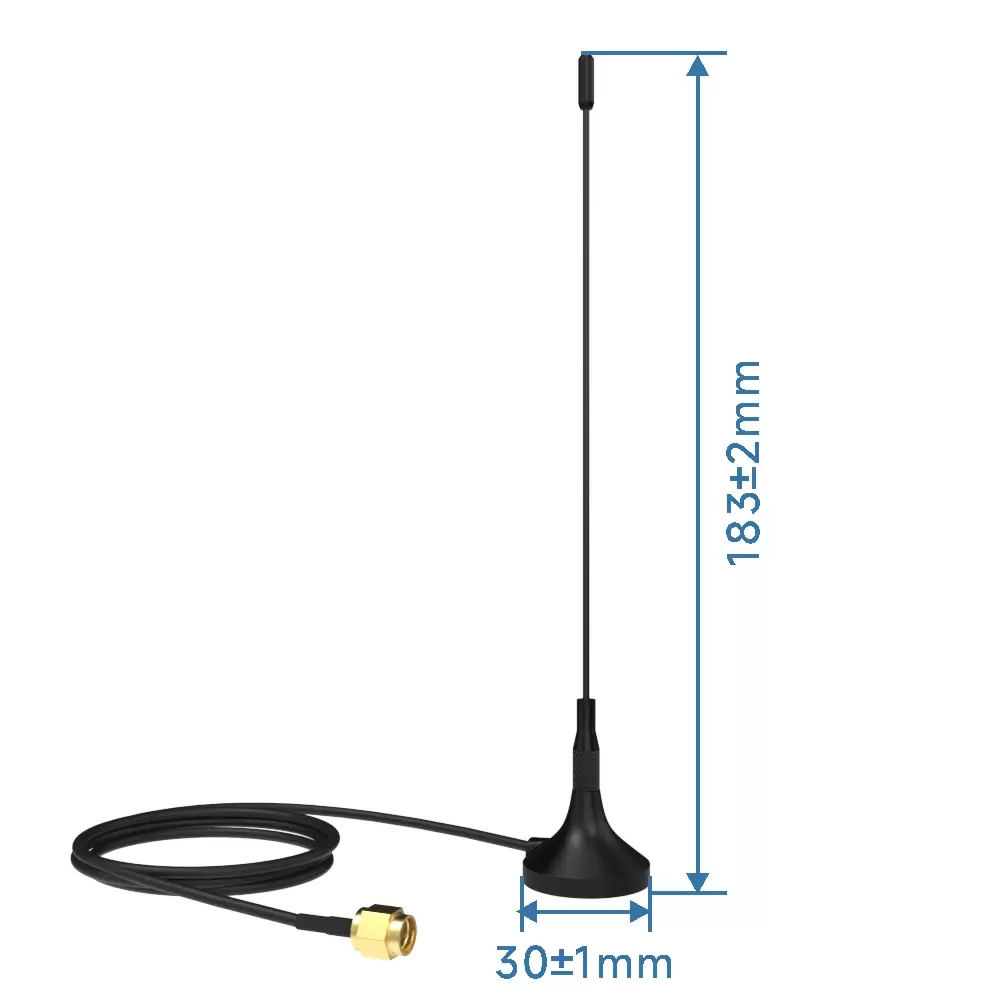

Height: 183 mm

Interface form: SMA-J

Cable length: 1~6m optional Antenna

Color: black
