SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna
SW433-ZD115 : 433MHz UHF Folding Rod Antenna

SW433-ZD115 : 433MHz UHF Folding Rod Antenna

SW433-ZD115, a folding rod antenna, designed specially for 433MHz wireless communication. It has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter of Rod Antenna SW433-ZD115

  • Frequency Range: 433±5 MHz
  • VSWR: ≤ 1.5
  • Gain: 2.15 dBi
  • Input impedance: 50 Ω
  • Max power: 10 W
  • Polarization: vertical polarization
  • Height: 116±1 mm
  • Interface form: SMA
  • Lead wire: none
  • Antenna Color: black
  • Weight: 10 g
Frequency 433MHz
Type Rod
Gain 2.15dBi
Size (mm) 100~150

Sizes of Rod Antenna SW433-ZD115

Antennas have been tested under wireless simulated environment by Network Analyzer.

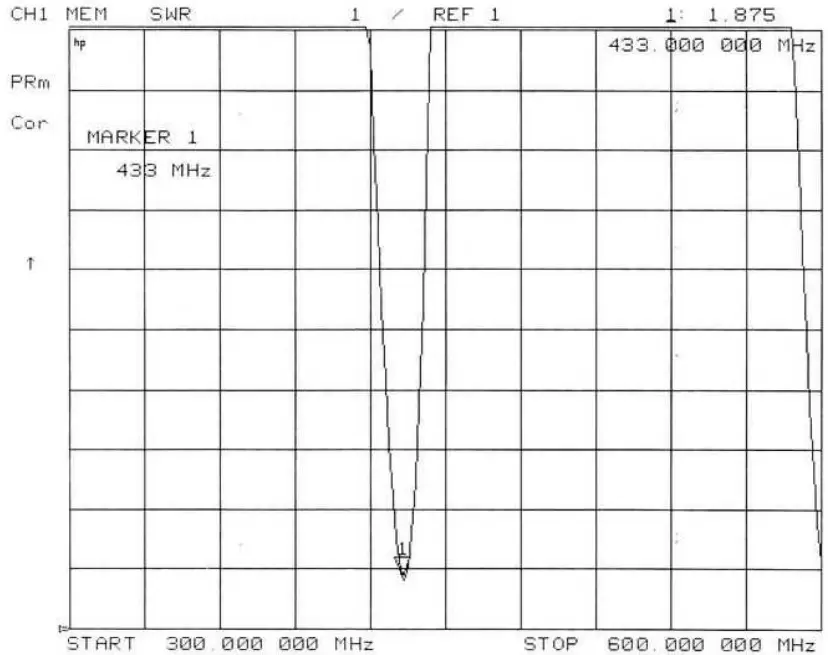

VSWR Chart of Rod Antenna SW433-ZD115
