SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna
SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna

SW433-MAX-XPXM : 433MHz High Gain Big Sucker Antenna

SW433-MAX-XPXM is a big dedicated high gain sucker antenna, is designed for 433MHz wireless communication, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter

  • Frequency Range: 433 ±8MHz
  • VSWR: ≤1.5
  • Gain: 5.5 dBi
  • Input impedance: 50 Ω
  • Max power: 50 W
  • Weight:150 g
  • Interface form: SMA-J
  • Cable length: 1/3/5/10mm optional
  • Antenna Color: black
  • Working temperature range:-40~+60 ℃
  • Working humidity range:5%~95%



Frequency 433MHz
Type Magnetic
Gain 5.5dBi
Size (mm) > 150

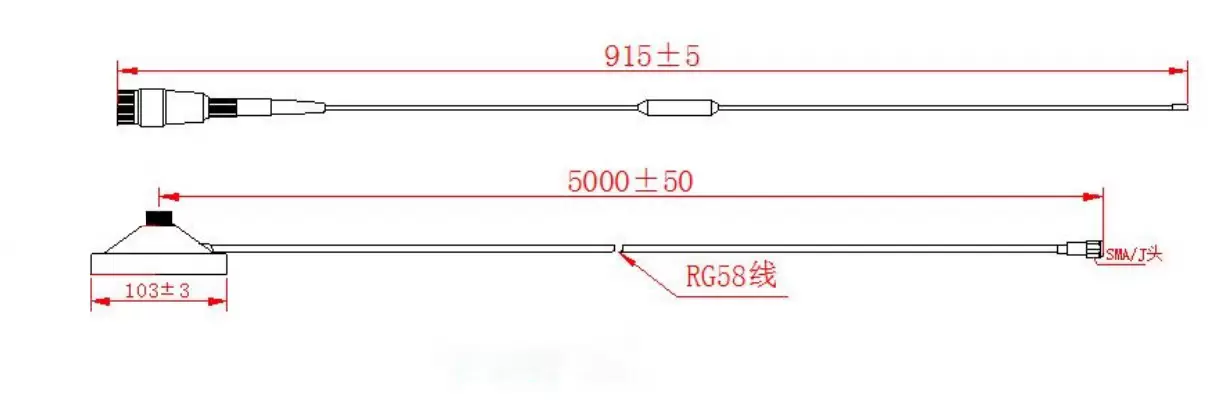

Size of high gain big sucker antenna SW433-MAX-XPXM

Antennas have been tested under wireless simulated environment by Network Analyzer.

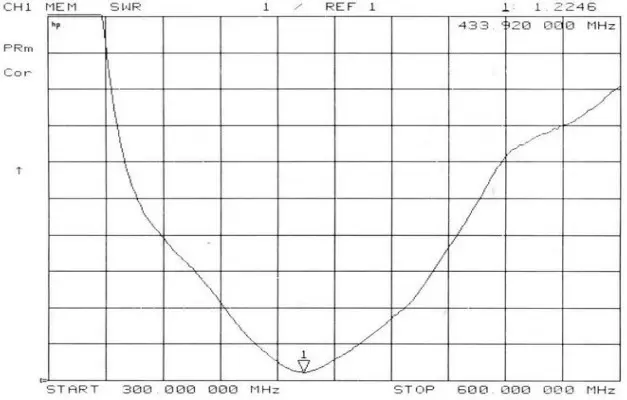

VSWR Chart of high gain big sucker antenna SW433-MAX-XPXM
