SW433-ZT28 : 433MHz UHF Straight Rod Antenna
SW433-ZT28, a folding rod antenna, designed specially for 433MHz wireless communication. It has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Rod Antenna SW433-ZT28
- Frequency Range: 433±5 MHz
- VSWR: ≤ 2.0
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

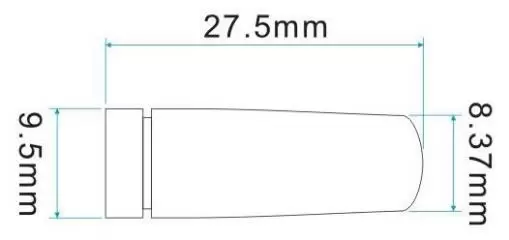

- Height: 27.5 mm
- Interface form: SMA（build-in）
- Lead wire: none
- Antenna Color: black
- Weight: 3 g
| Frequency | 433MHz |
| Type | Rod |
| Gain | 2.15dBi |
| Size (mm) | < 50 |

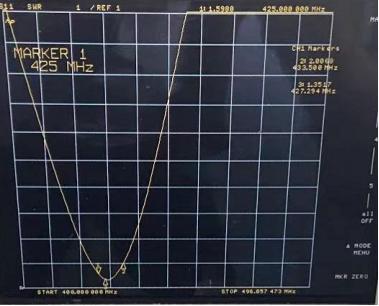

Antennas have been tested under wireless simulated environment by Network Analyzer
Frequency：434 MHz RL:14.44dB SWR：1.464
