SW868-WT100 : 868MHz Elbow Rod Antenna
SW868-WT100, an elbow rod wireless antenna, designed specially for 868/915MHz wireless communication, it has good VSWR, ingenious structure, easy installation, and stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 850~950 MHz
- VSWR: ≤ 2.0
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization
- Height: 106±1 mm
- Interface form: SMA-JW
- Lead wire: none
- Antenna Color: black
- Weight: 15 g
| Frequency | 868MHz |
| Type | Rod |
| Gain | 2.15dBi |
| Size (mm) | 100~150 |

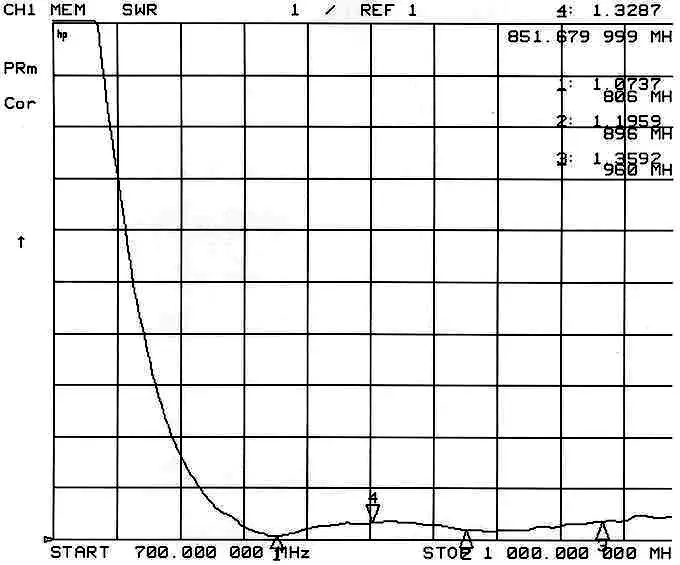

Antennas have been tested under wireless simulated environment by Network Analyzer.
