SW433-WT100 : 433MHz Elbow Rod Antenna
SW433-WT100, an elbow rod antenna, designed specially for 433MHz wireless communication. It has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Rod Antenna SW433-WT100
- Frequency Range: 433±5 MHz
- VSWR: ≤5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

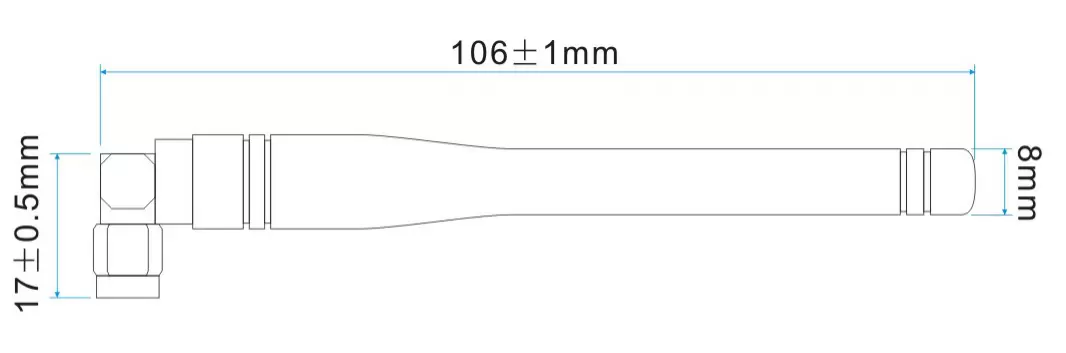

- Height: 106±1 mm
- Interface form: SMA-JW
- Lead wire: none
- Antenna Color: black
- Weight: 15 g
| Frequency | 433MHz |
| Type | Rod |
| Gain | 3dBi |
| Size (mm) | < 100 |

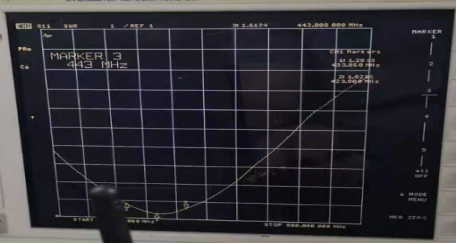

Antennas have been tested under wireless simulated environment by Network Analyzer.
Frequency：434MHZ RL: 20.98dB SWR:1.195
