SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna
SW490-WT100 : 490MHz UHF Elbow Rod Antenna

SW490-WT100 : 490MHz UHF Elbow Rod Antenna

SW490-WT100, an elbow rod antenna, designed specially for 490MHz wireless communication and Meter Reading Communication System, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter

  • Frequency Range: 490±5 MHz
  • VSWR: ≤ 1.5
  • Gain: 2.15 dBi
  • Input impedance: 50 Ω
  • Max power: 10 W
  • Polarization: vertical polarization
  • Height: 106±1 mm
  • Interface form: SMA-JW
  • Lead wire: none
  • Antenna Color: black
  • Weight: 11 g
Frequency 470/490MHz
Type Rod
Gain 2.15dBi
Size (mm) 100~150

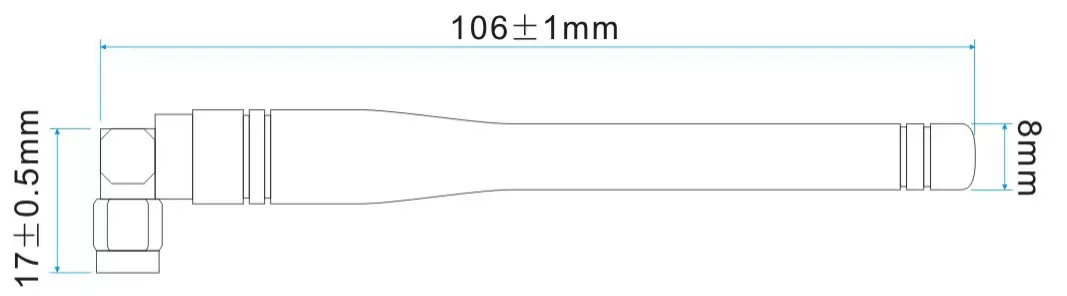

Mechanical sizes of rod antenna SW490-WT100

Antennas have been tested under wireless simulated environment by Network Analyzer.

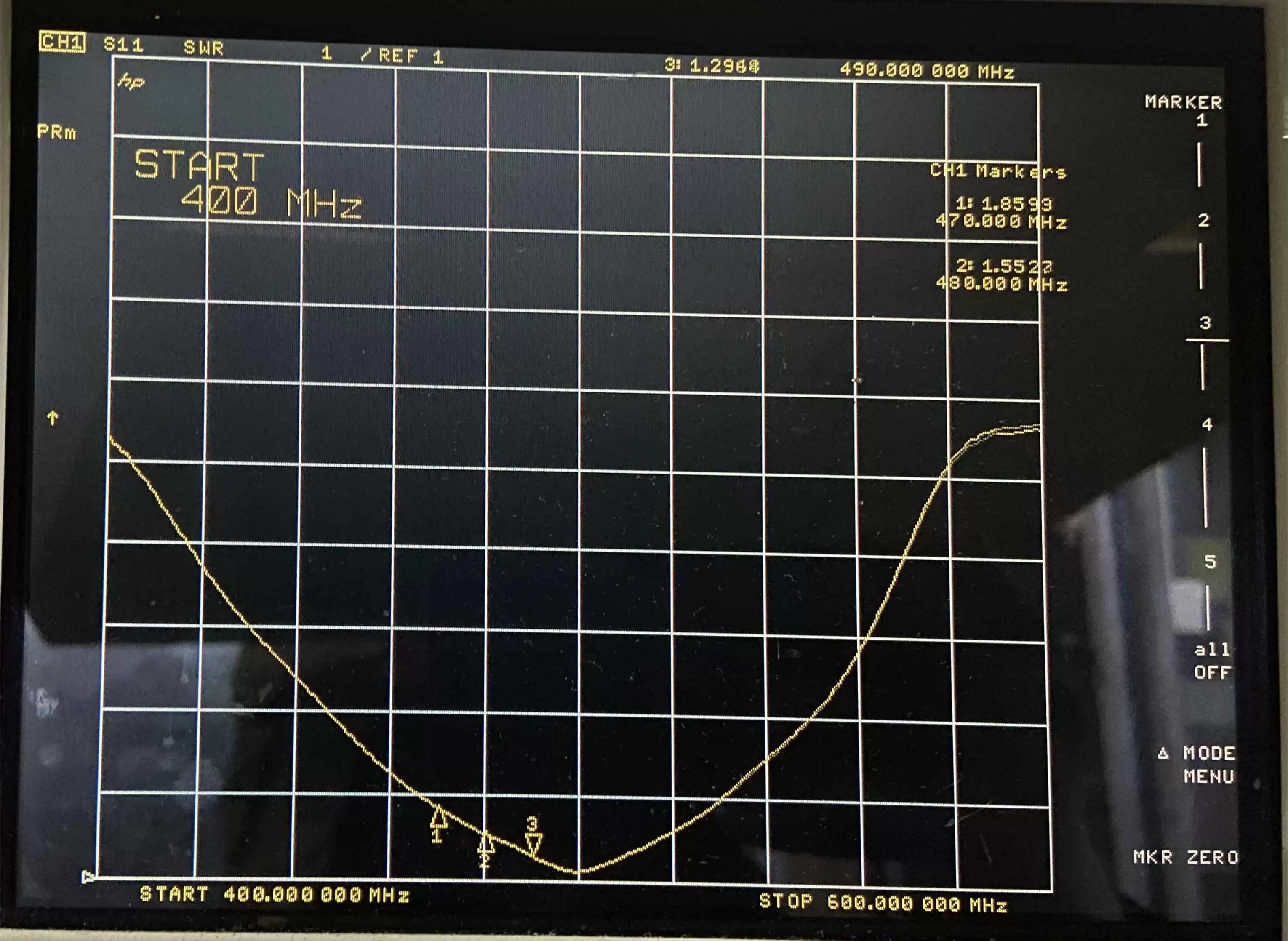

SW490-WT100 VSWR Chart
