SW490-TH10 : 490MHz UHF Copper Spring Antenna
SW490-TH10,copper spring antenna, designed specially for 470/490MHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 490±10 MHz
- VSWR: ≤ 2.0
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Wire diameter: 0.5mm
- Max power: 5 W

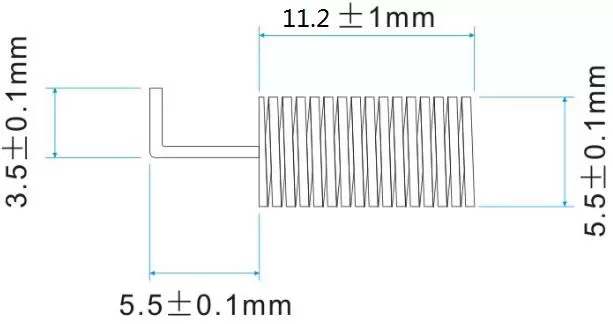

- Height: 11.2±1 mm
- Interface form: welding directly
- Antenna Color: copper
- Weight: 2 g
| Frequency | 470/490MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 15 |
| Material & Technology | Copper |

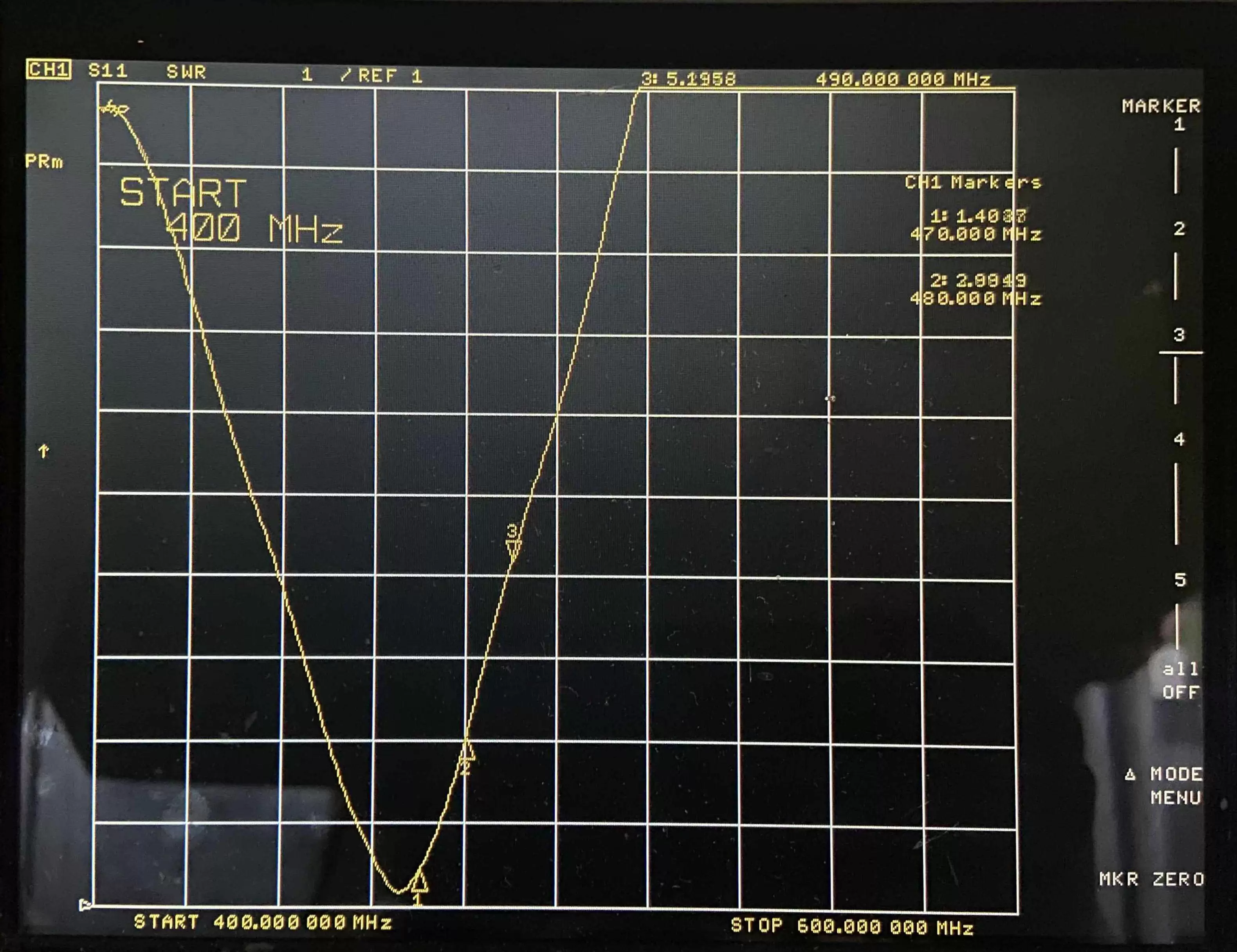

Antennas have been tested under wireless simulated environment by Network Analyzer.
