SW490-TH32 : 470/490MHz Copper Spring Antenna
SW490-TH32, copper spring antenna, designed specially for 470/490MHz wireless communication. It has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Spring Antenna SW490-TH32
- Frequency Range: 470±10MHz
- VSWR: ≤ 1.5
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 5W

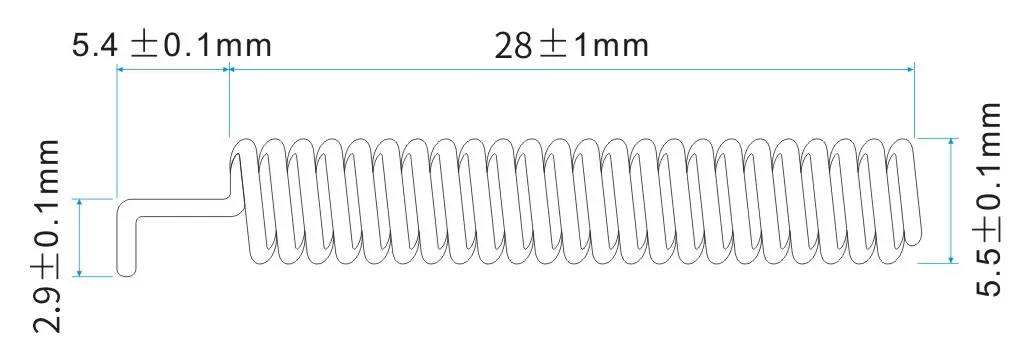

- Height: 33±1 mm
- Interface form: welding directly
- Antenna Color: copper
- Weight: 1.5g
- Wire diameter: 0.8mm
| Frequency | 470/490MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 20 |
| Material & Technology | Copper |

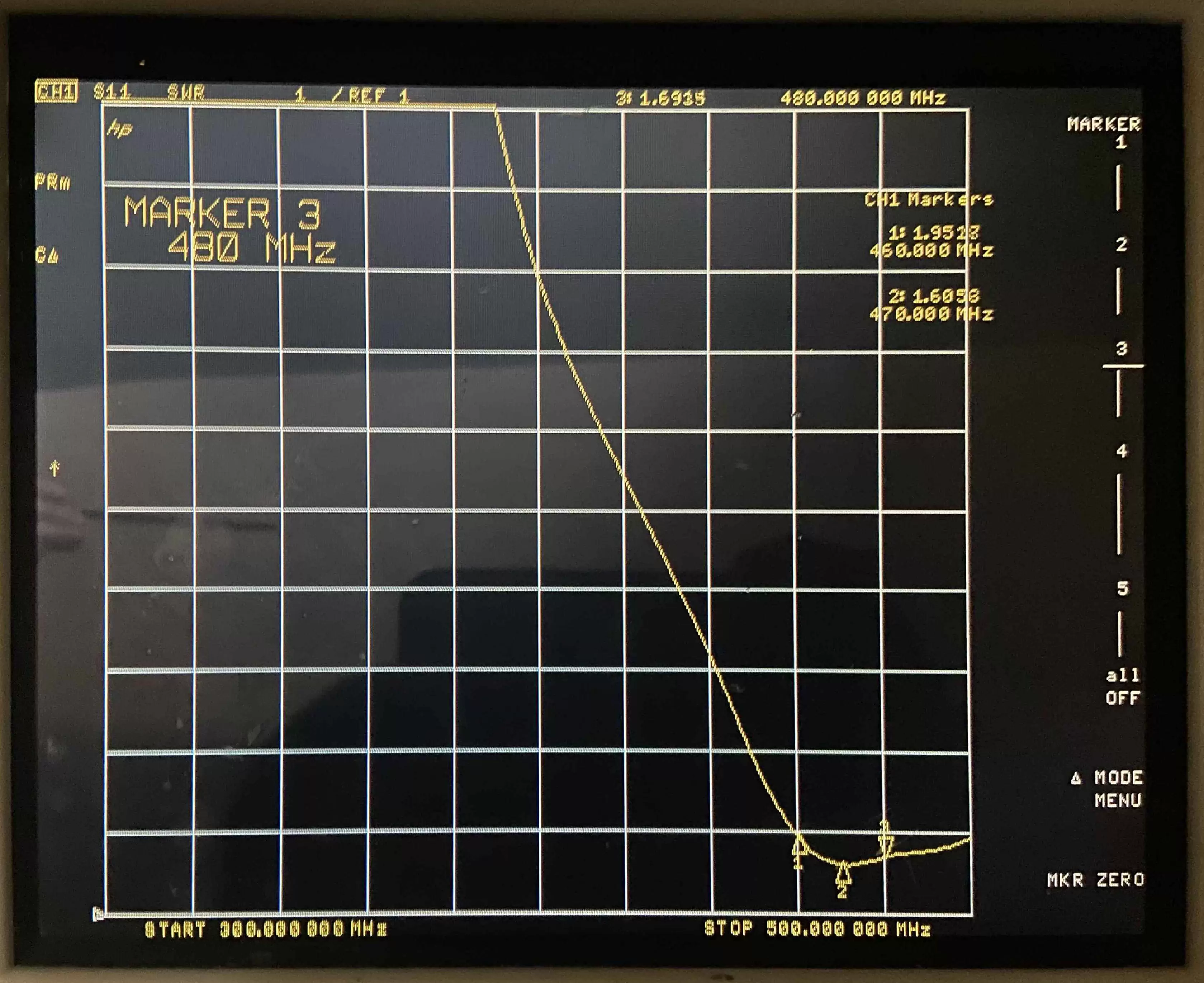

Antennas have been tested under wireless simulated environment by Network Analyzer.
