SW315-TH23 : 315MHz Gold Plated Spring Antenna
SW315-TH23, gold plated spring antenna, is designed specially for 315MHz wireless communication. It has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 315 ±5 MHz
- VSWR: ≤ 1.5
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 5 W
- Wire diameter: 0.5mm
- Height: 23.5±1mm
- Interface form: welded directly
- Antenna Color: gold
- Weight: 1 g
| Frequency | 315MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 30 |
| Material & Technology | Gold plated |

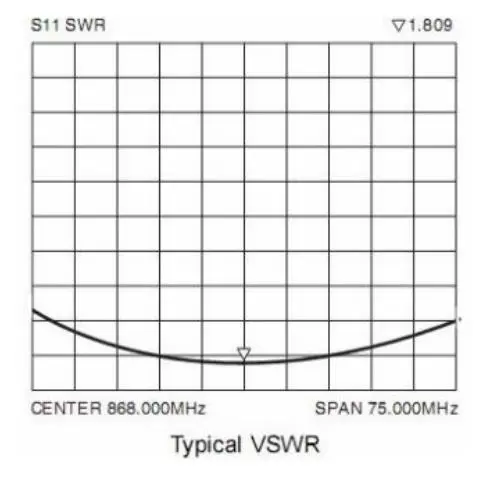

Antennas have been tested under wireless simulated environment by Network Analyzer.
