SW4G-XPXM : 4GHz High Gain Small Sucker Antenna
SW4G-XPXM small sucker antenna is for 4G LTE band mobile communication Special antenna for system design. The antenna has good standing wave ratio performance, small size, ingenious structure and convenient installation，Stable performance, good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 821~2700 MHz
- VSWR: ≤ 1.5
- Gain: 5.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Weight(g) : 70±5

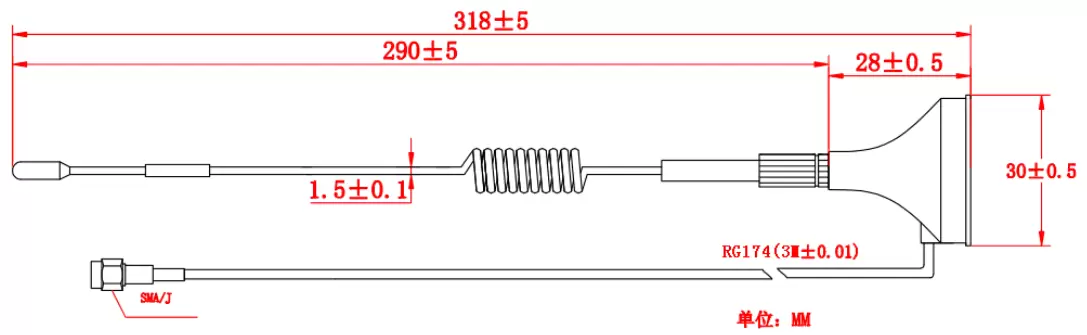

- Height(mm) : 318±5mm
- Interface form: SMA-J
- Cable Length(m) : 3±1
- Color: black
2.4 GHz High Gain RF Antenna - Omni Antenna - SW2400-WT100
| Frequency | 4GHz |
| Type | Magnetic |
| Gain | 5dBi |
| Size (mm) | > 150 |

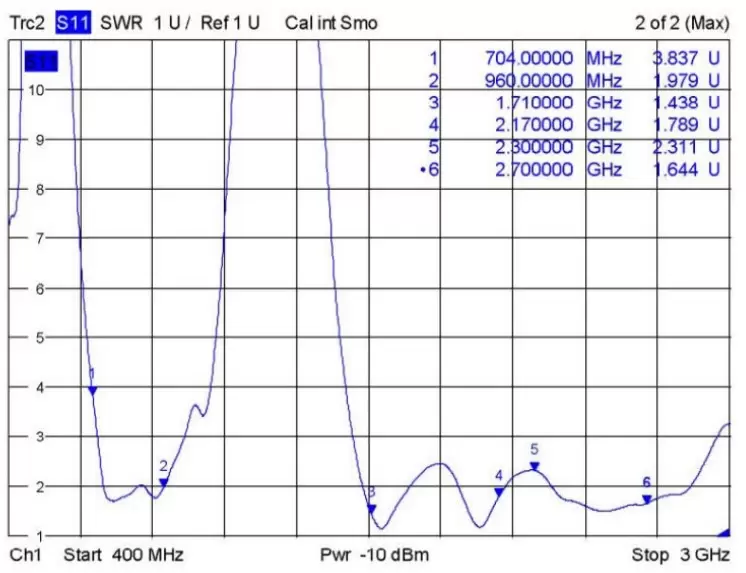

Antennas have been tested under wireless simulated environment by Network Analyzer.
