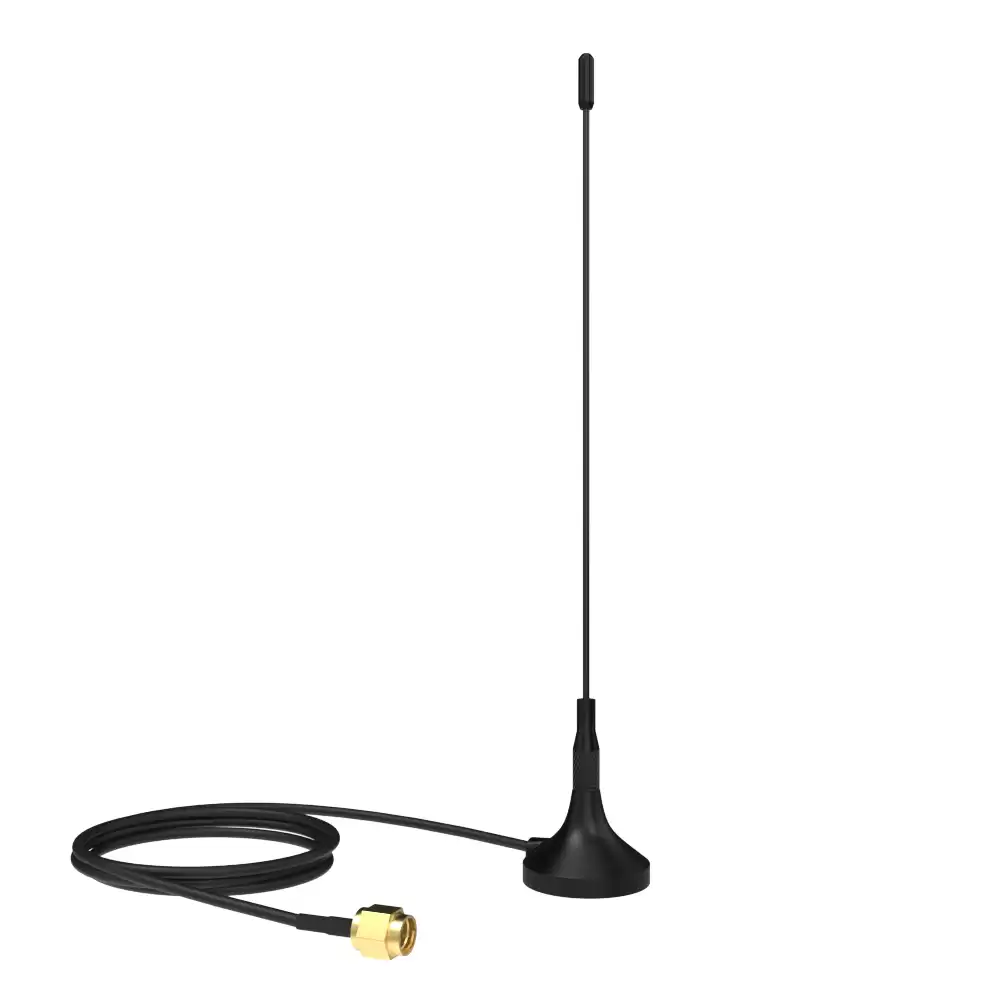

SW433-ZXPXM : 433MHz small sucker antenna
Type: Sucker
Frequency: 433 MHz
Gain: 2.16~3dBi
Size(mm): >150
Material&Technology: Others
HOME > PRODUCTS > RF ANTENNAS > SW915-MAX-XPXM : 915MHZ BIG SUCKER ANTENNA

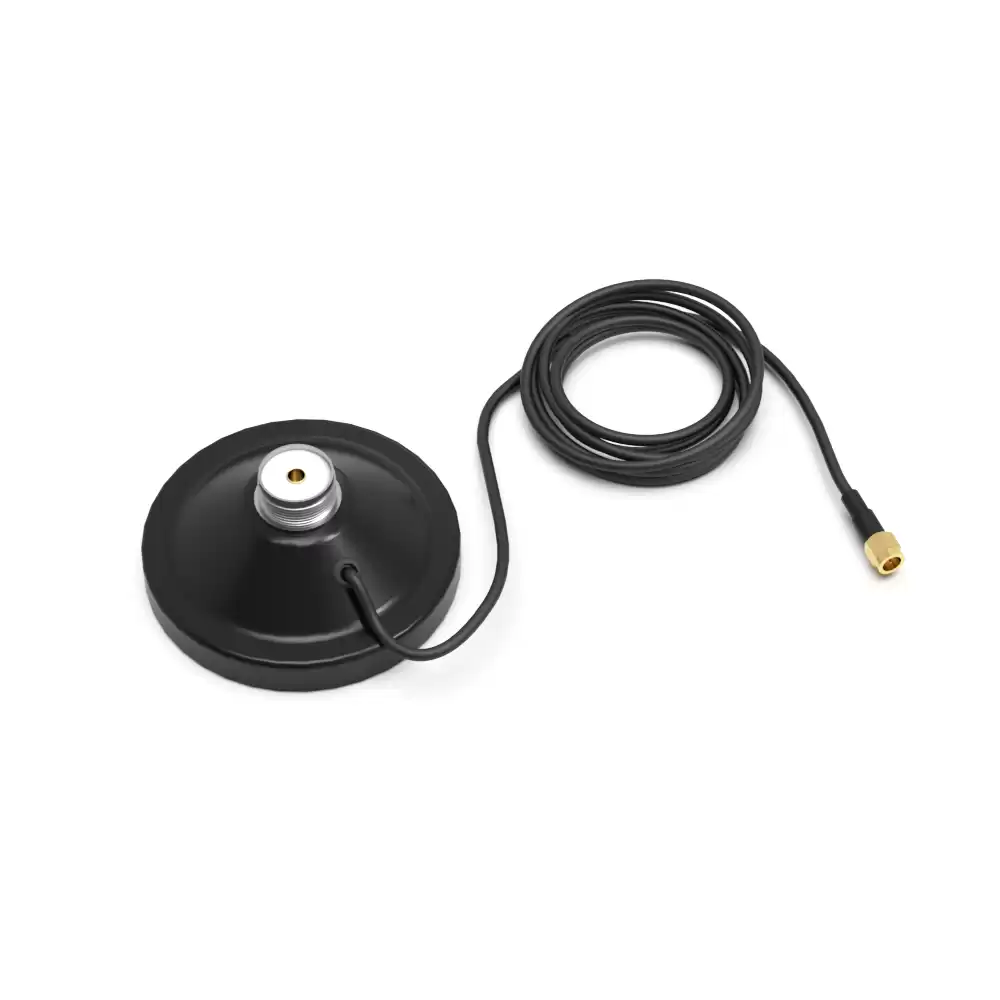

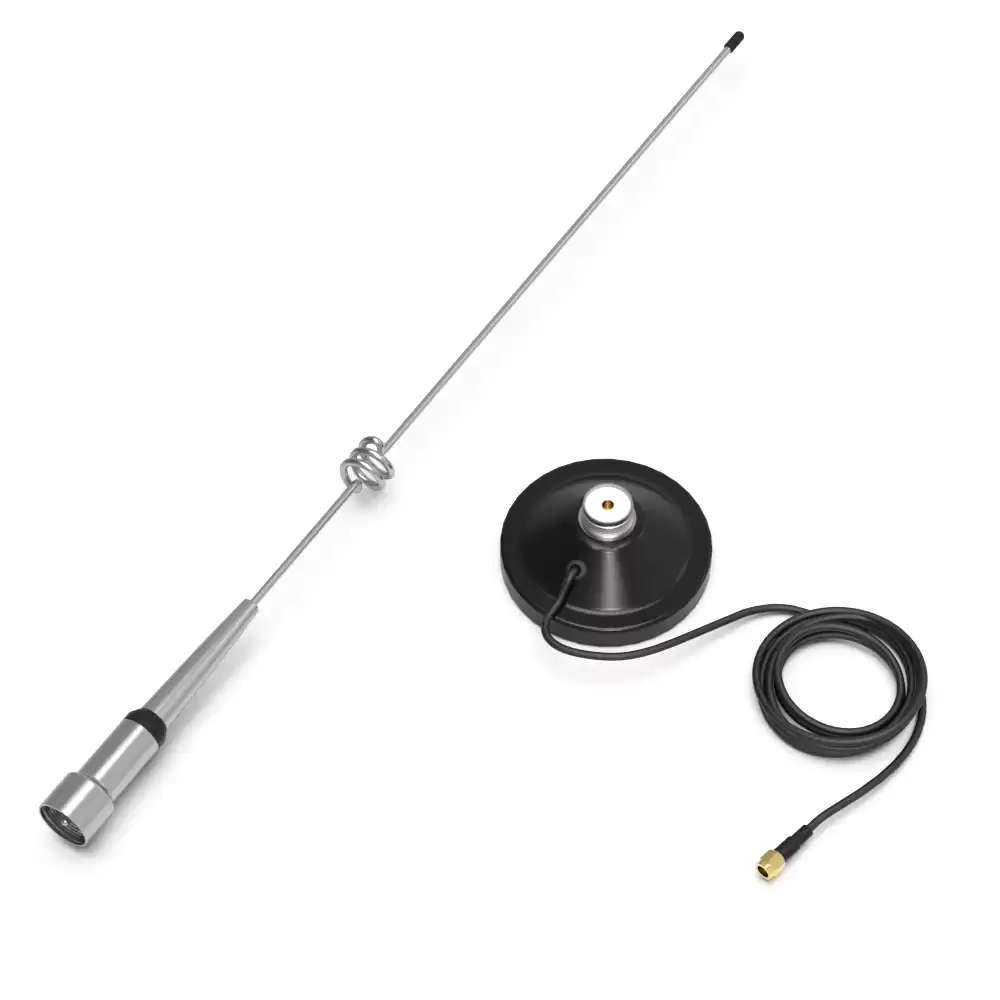

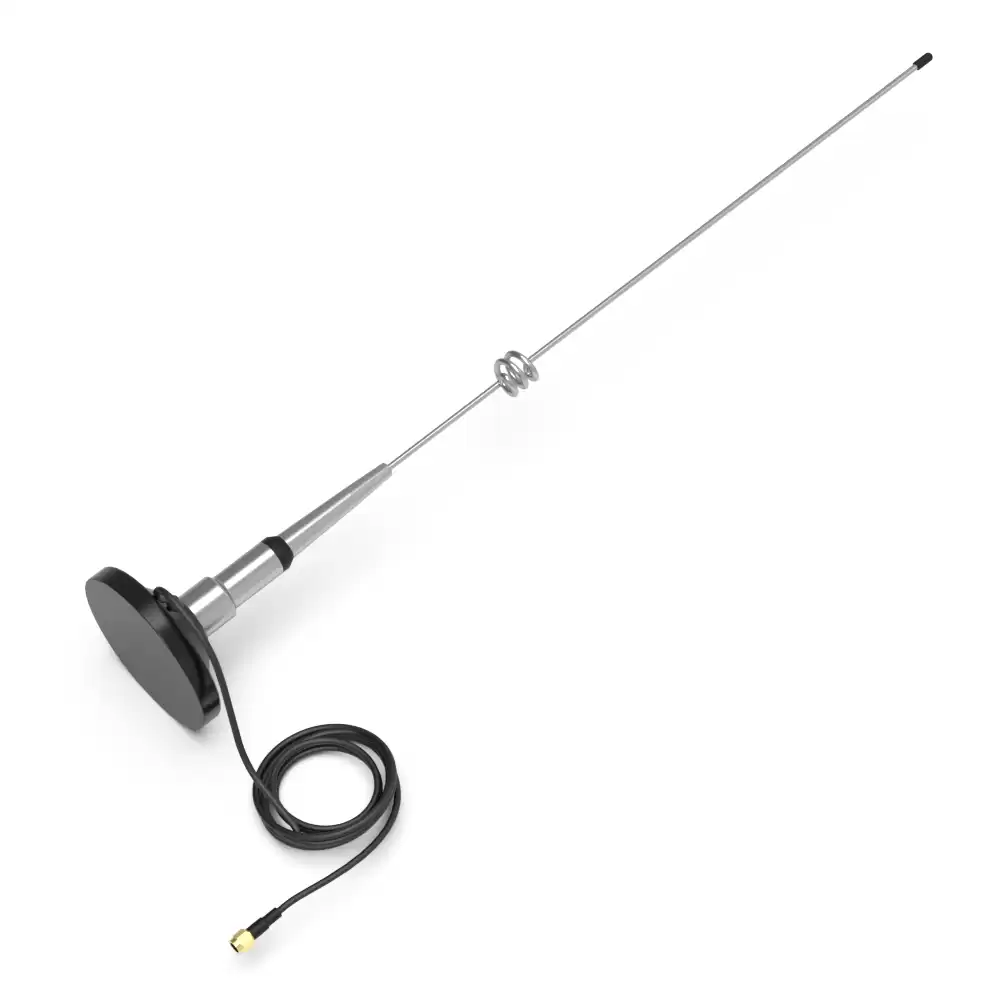

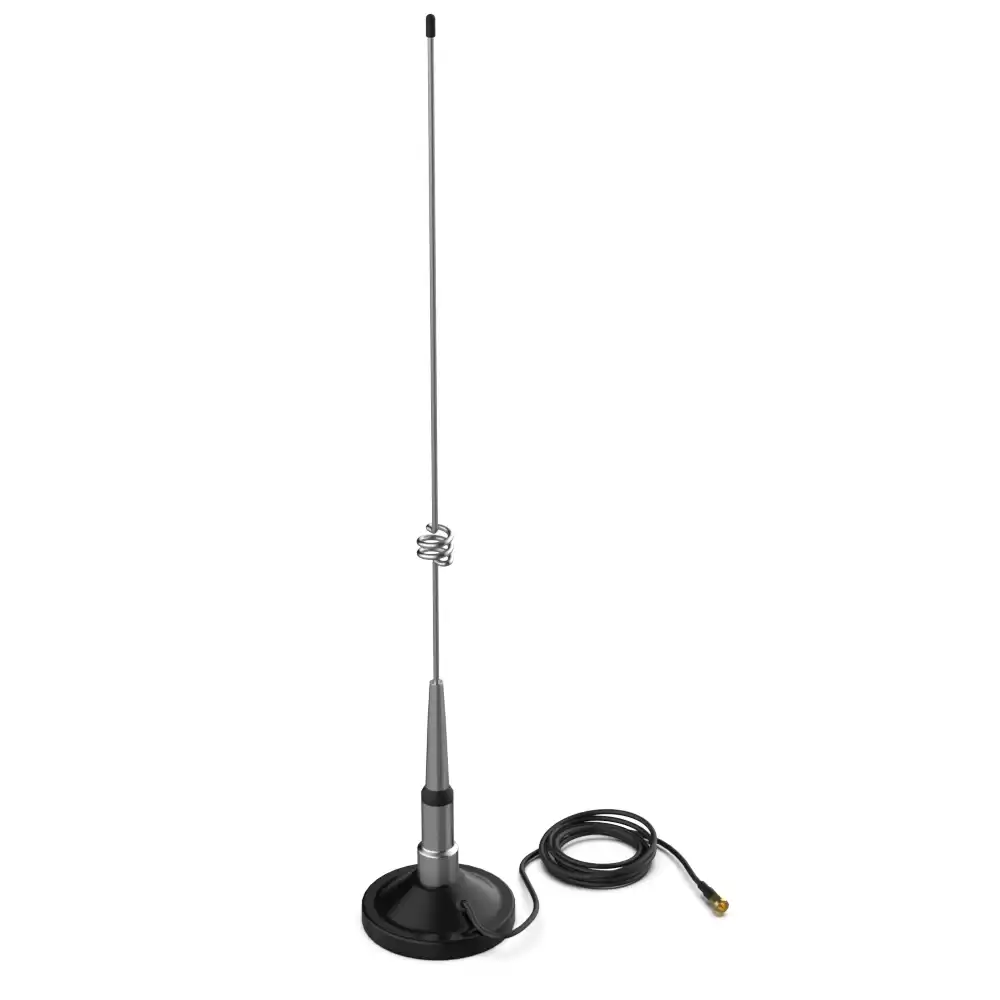

SW915-MAX-XPXM : 915MHz big sucker antenna
SW915-MAX-XPXM is a big dedicated high gain sucker antenna, is designed for 915MHz wireless communication, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
• Frequency Range: 915 ±10 MHz

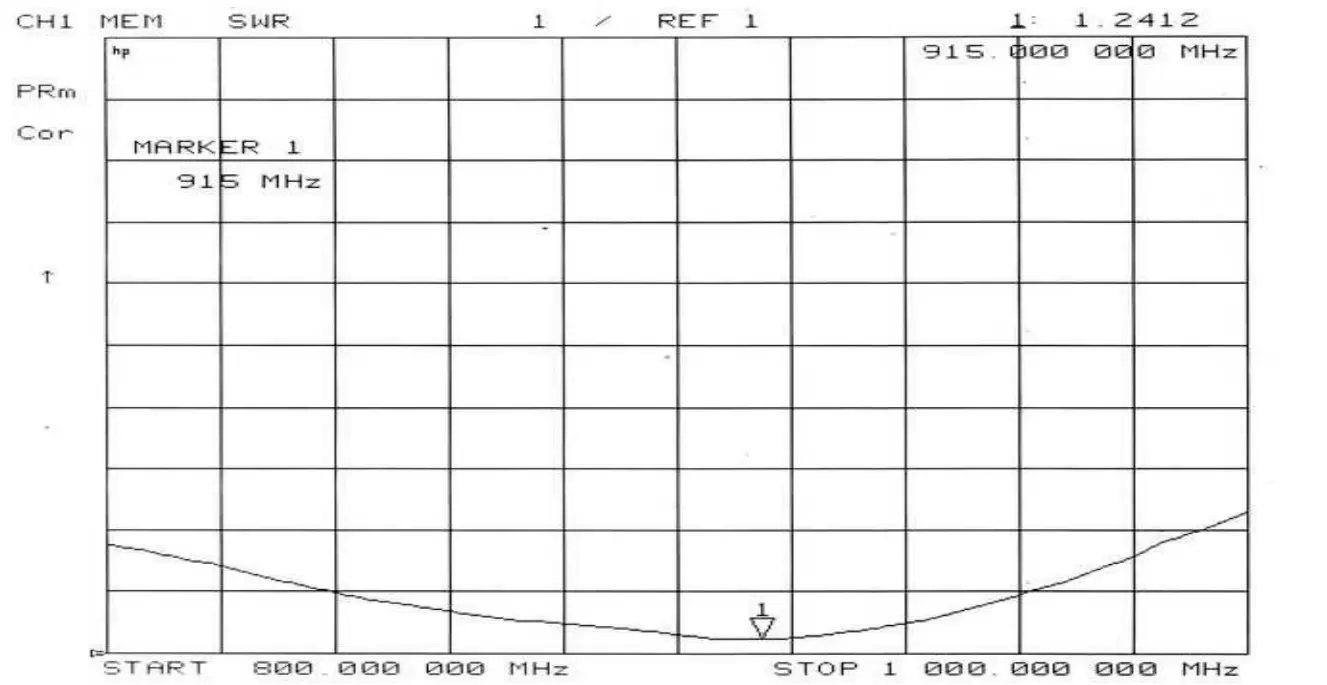

• VSWR: ≤ 1.5
• Gain: 5.5 dBi
• Input impedance: 50 Ω
• Max power: 50 W
• Weight：720±20g

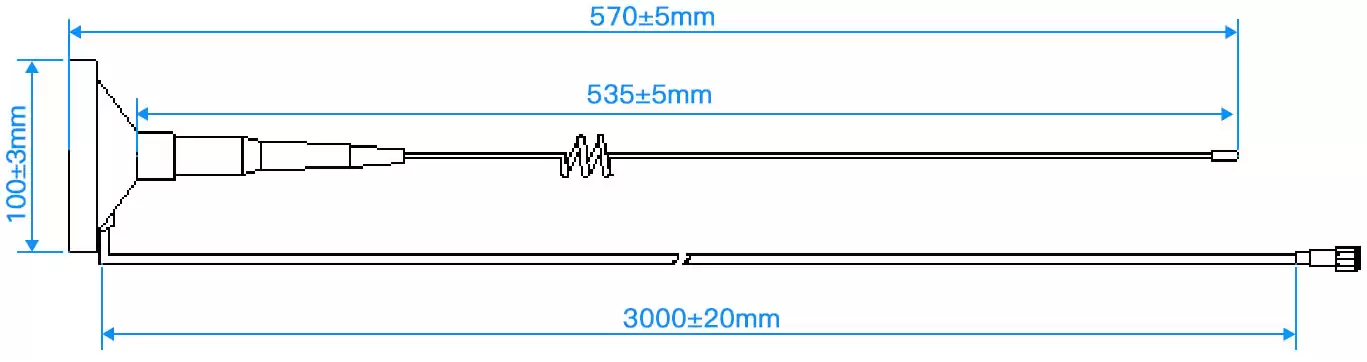

• Height: 57±0.5 cm
• Interface form: SMA-J
• Cable length: default 3M(optional)
• Antenna Color: black
• Working temperature range：-40~+60 ℃
• Working humidity range：5%~95%
Antennas have been tested under wireless simulated environment by Network Analyzer.
