SV6300 : 3W Industrial High Power & Highly-Integrated RF Modem With ESD Protection

SV6300 is an ultra long distance & highly-integrated rf modem, which adopts the high performance Si4432 from Silicon Labs and industrial micro-controller. TTL / 232 /485 can be chosen corresponding to SV6300-TTL / SV6300-232 / SV6300-485. SV6300 has good sensitivity and 1W output power to achieve long RF range and reliable RF communication. To avoid the interference, SV6300 provides 40 frequency channels and configurable Net ID. SV6300 is flexible but easy to use, it comes with many parameters, such as: frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device.
SV6300 strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.

DOWNLOAD

Features of RF Modem SV6300

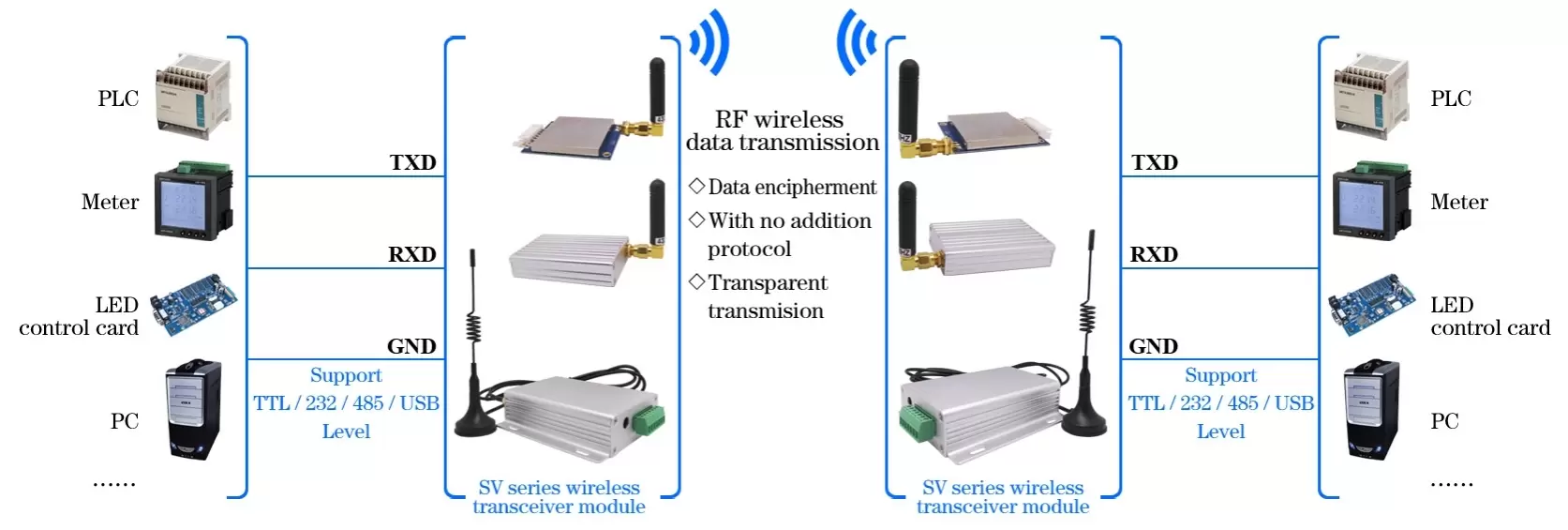

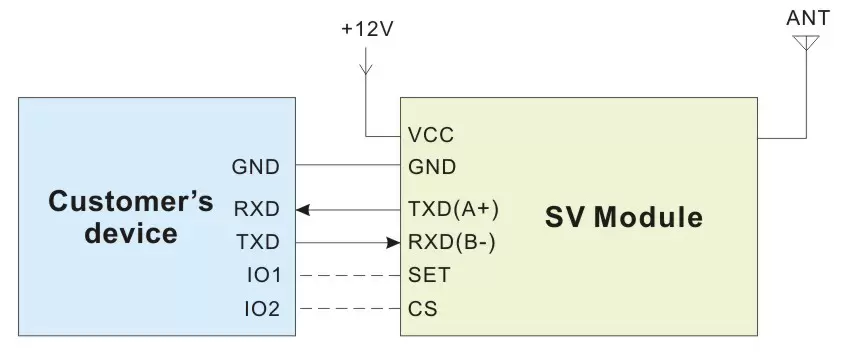

Typical Application Circuit of RF Modem SV6300

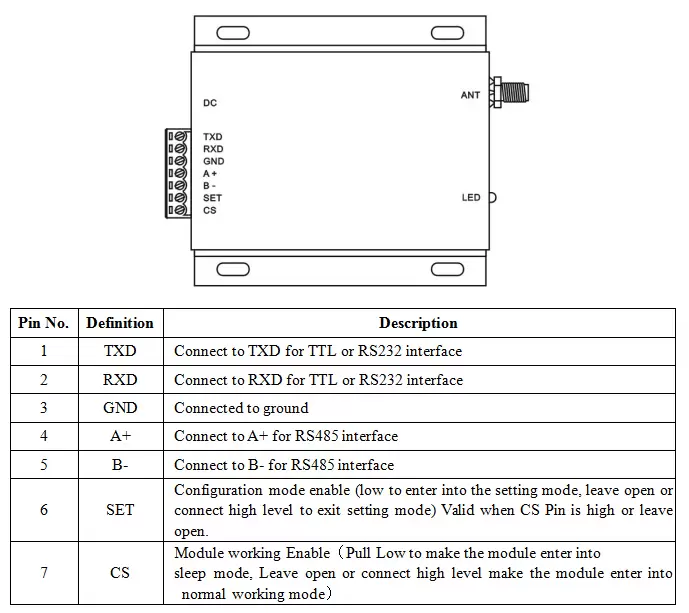

Pins of RF Modem SV6300

Pin No.	Definition	Description
1	TXD	TXD of the module and connect to external RXD
2	RXD	RXD of the module and connect to external TXD
3	GND	Connected to ground
4	A+	Connect to A+ for RS485 interface
5	B-	Connect to B- for RS485 interface
6	SET	Configuration mode enable (low to enter into the setting mode, leave open or connect high level to exit setting mode) Valid when CS Pin is high or leave open.
7	CS	For the default version of the module, this pin needs to be left floating (the module has a built-in anti-crash self-reset circuit) Note: Customers can customize the sleep version of the program (without self-reset function), low level sleep, current lower than 5uA, default high level output.

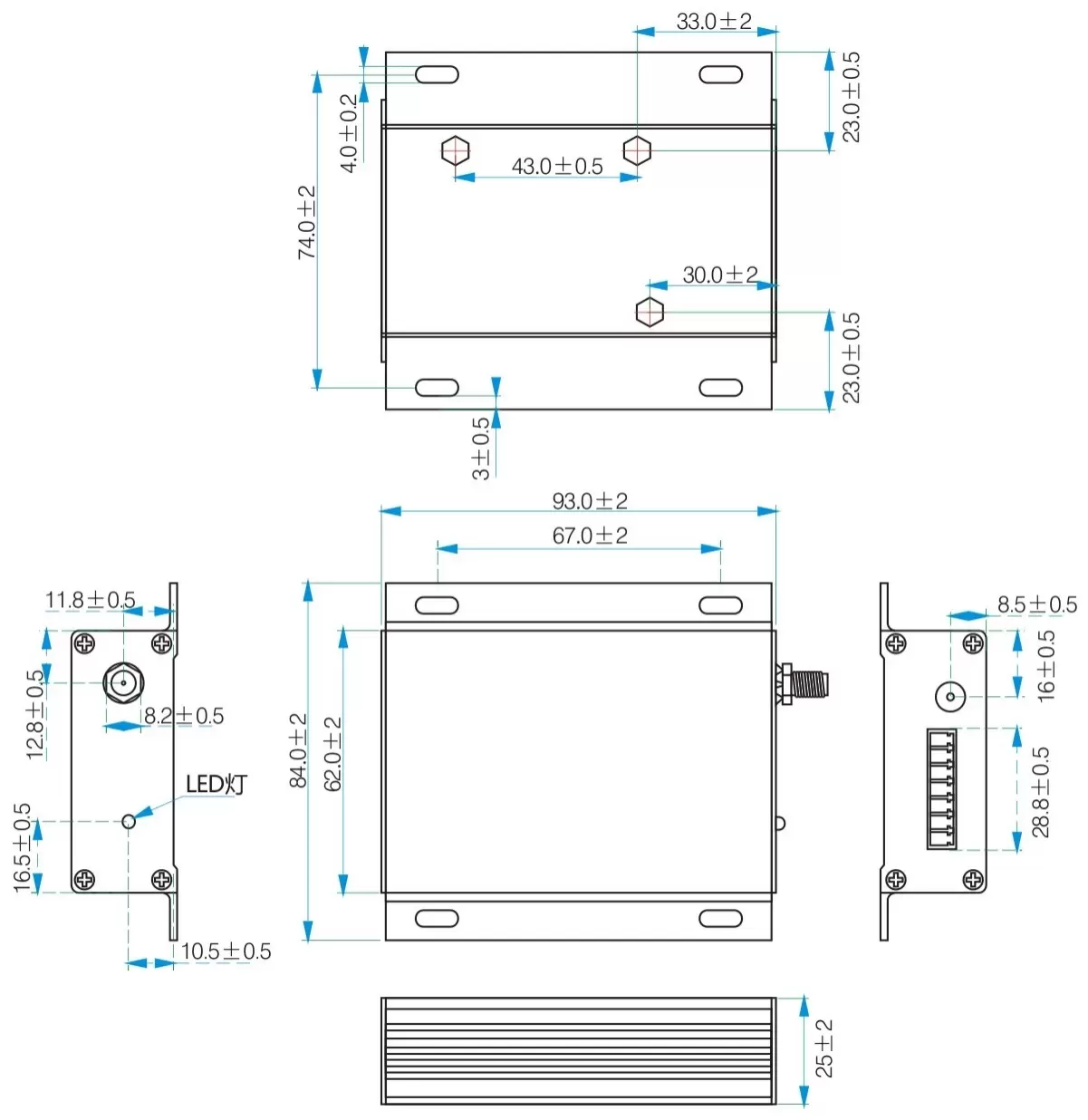

Mechanical Dimensions of RF Modem SV6300
