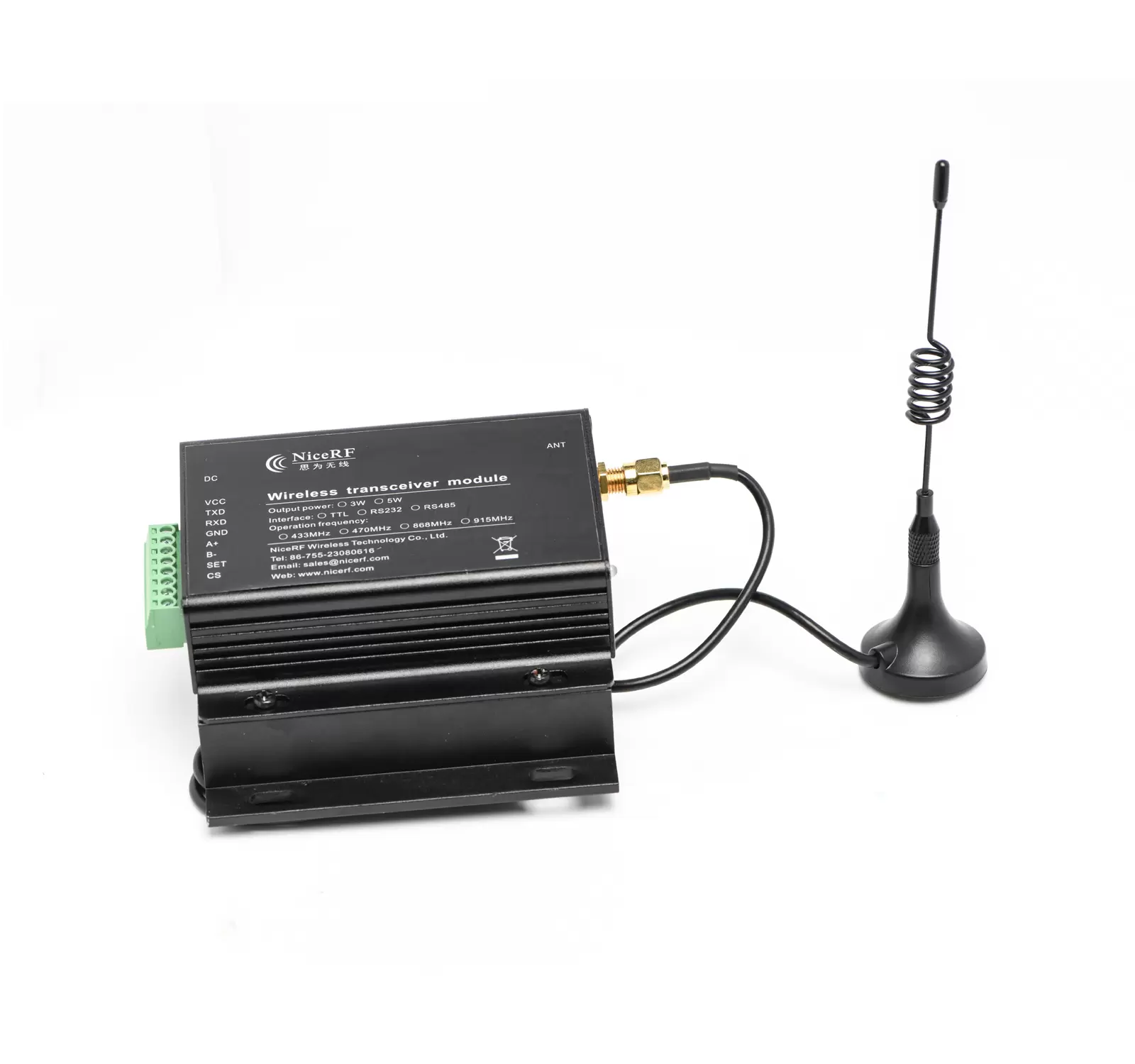

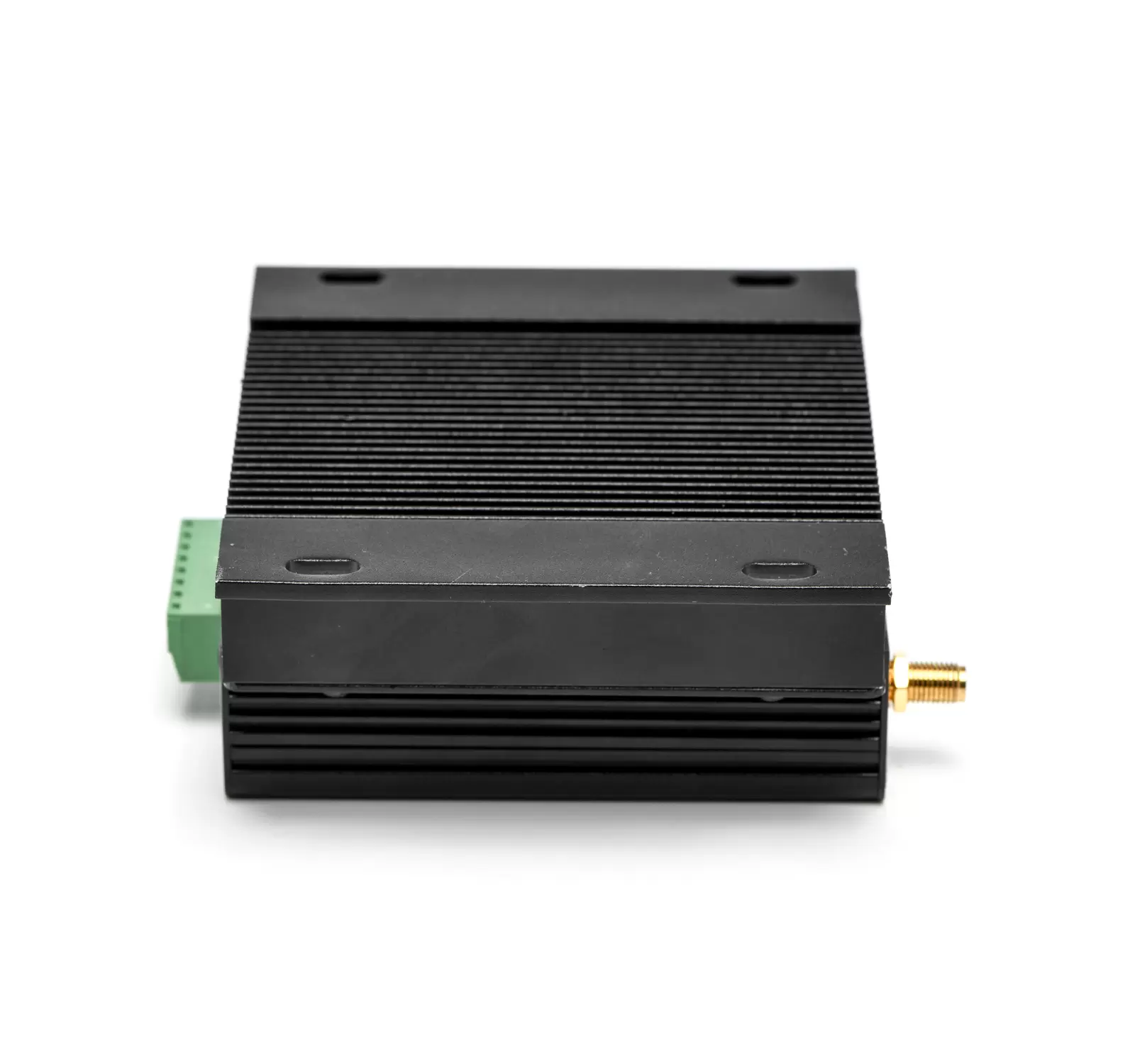

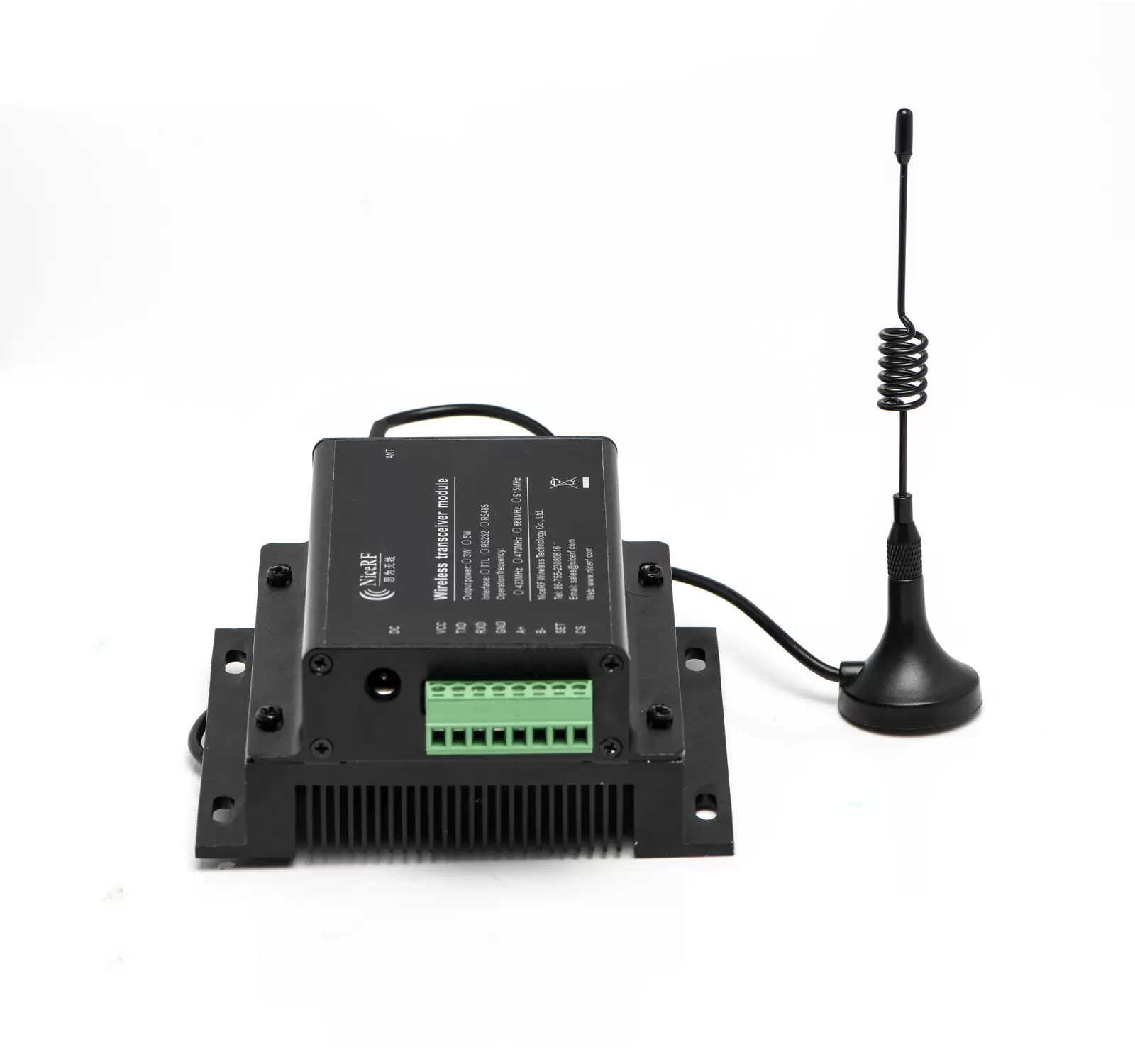

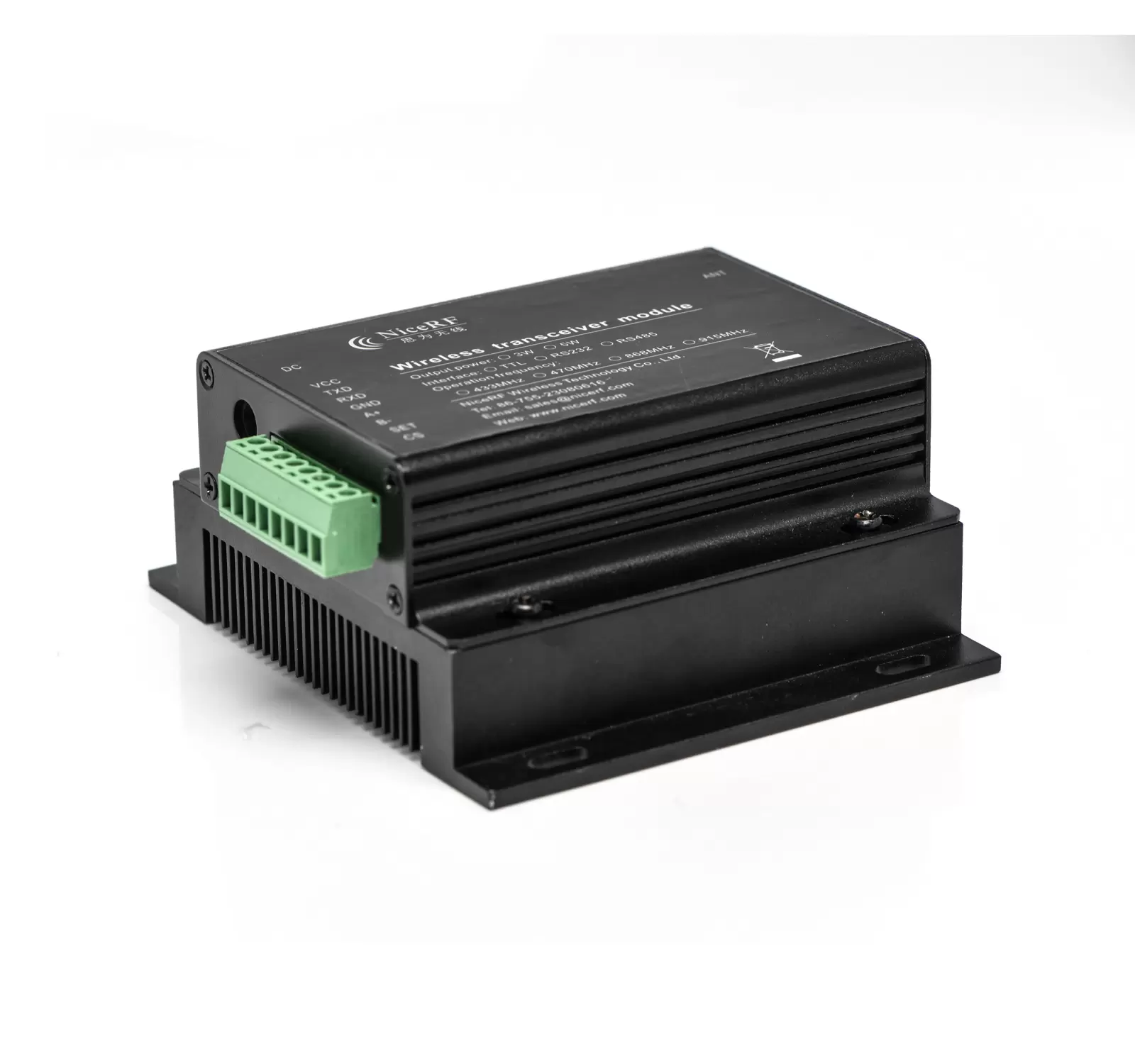

LoRa6500Pro : 5W Wide Voltage & Long Range LoRa RF Modem With Mesh Capability And ESD Protection

The LoRa Pro module is a new series of upgraded networking LoRa modules from Wireless. It adopts Semtech's SX127X chip.
In order to meet the application needs of different customers, we design the module software of this series as an all-in-one way. Users can switch between different working modes through the PC software configuration module. In MESH mode, the routing module has automatic routing. Function, the user can form a network transmission without blind zone without distance limitation by means of multi-module combination. At the same time, users can also encrypt AES128 wireless data through PC software or serial port instructions, making data transmission more secure.
LoRa6500Pro is designed for 5W output power and is available in TTL/RS232/RS485 levels. It is widely used in wireless remote transmission control.
The RF modem LoRa6500Pro strictly uses lead-free process for production and testing, and meets RoHS and Reach standard.
Note: The LoRa Pro series can be configured to be compatible with our previous LoRa RF modems.
Hardware Features:
1. Ultra-long distance, metal shell, plus a separate radiator, can work reliably and stably for a long time.
2. Built-in hardware anti-crash self-reset circuit to resist strong external interference signals.
3. Built-in overcurrent and overvoltage reverse connection protection circuit.
Software Features:
AES128 data encryption method.
LBT (Listen Before Talk) function is optional.
Node/route/node+route optional in MESH mode.

Download

Features of LoRa RF modem LoRa6500Pro

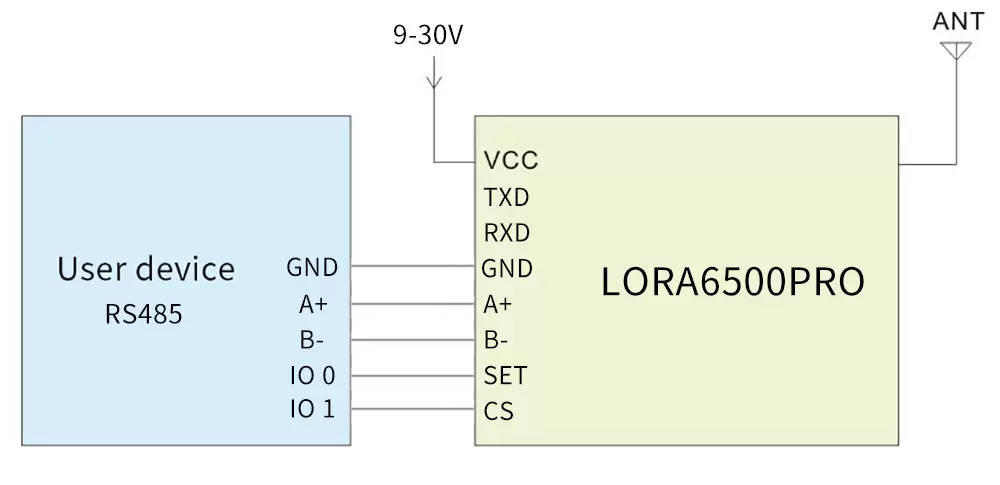

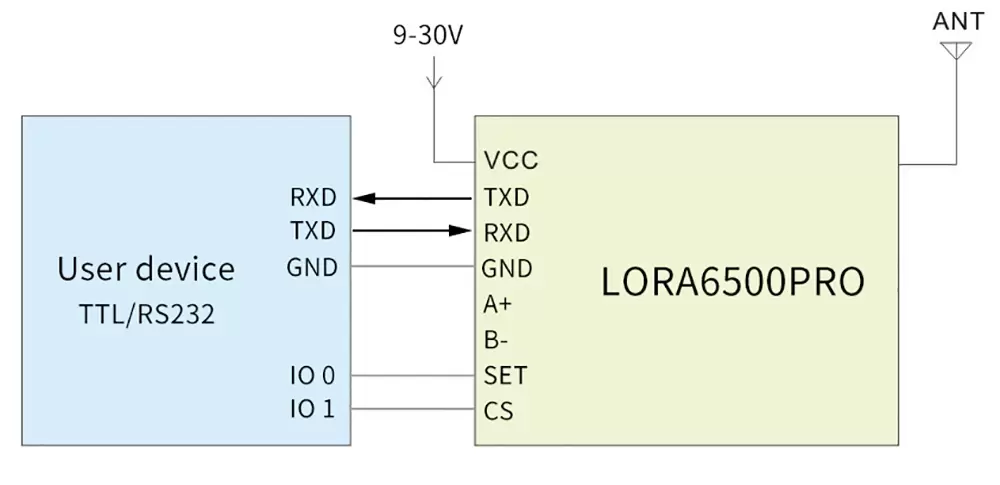

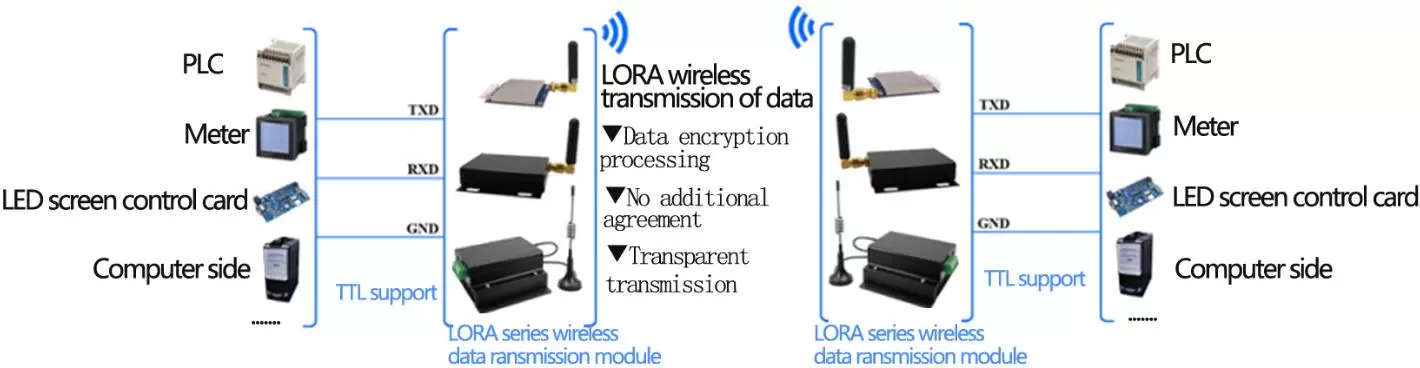

Typical application circuit of LoRa RF modem LoRa6500Pro

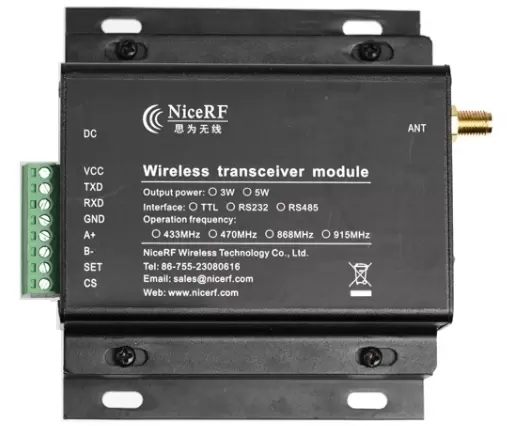

Pins of LoRa RF modem LoRa6500Pro

Pin No.	Definition	Description
1	VCC	Connected to the positive power supply (typical 12V)
2	TXD	Connect to TXD for TTL or RS232 interface
3	RXD	Connect to RXD for TTL or RS232 interface
4	GND	Connected to ground
5	A+	Connect to A+ for RS485 interface
6	B-	Connect to B- for RS485 interface
5	SET	Configuration mode enable (low to enter into the setting mode, leave open or connect high level to exit setting mode) Valid when CS Pin is high or leave open.
6	CS	Module working Enable（Pull Low to make the module enter into sleep mode, Leave open or connect high level make the module enter into normal working mode）

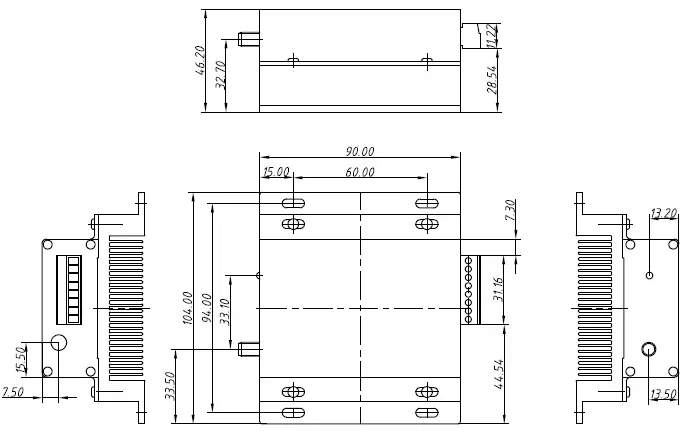

Mechanical dimensions of LoRa RF modem LoRa6500Pro
