LoRa6200Pro : 2W Small Size Wide Voltage Uart LoRa Modem With ESD Protection

The LoRa Pro module is a new series of upgraded networking wireless communication modules from Wireless. It is based on Semtech's SX127X chip and uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity. The penetrating power and communication distance are far superior to the current FSK and GFSK products, and have stronger anti-interference. In order to meet the application needs of different customers, we design the module software of this series as an all-in-one way. Users can switch between different working modes through the PC software configuration module. In MESH mode, the routing module has automatic routing. Function, the user can form a network transmission without blind zone without distance limitation by means of multi-module combination. At the same time, users can also encrypt AES128 wireless data through PC software or serial port instructions, making data transmission more secure.
The LoRa modem LoRa6200Pro is designed for 2W output power and is available in TTL/RS232/RS485 levels. It is widely used in wireless remote transmission control.
LoRa6200Pro strictly uses lead-free process for production and testing, and meets RoHS and Reach standard.

Download

Features of LoRa Modem LoRa6200Pro

Size: small
Wide voltage: 9 ~ 30 V
easy to Install and Fix
AES128 data encryption
Mesh network， No blind zone, no distance limit(The open transmission distance of a single module is more than 8Km @low rate)
Working frequency band: 433/470 MHz optional
Maximum output power: 2W (+33dBm)
Hop level in MESH mode
CRC encryption optional
Overvoltage and overcurrent, reverse protection
Node/route/node+route optional in MESH mode
Built-in hardware reset protection circuit
LoRa modulation
TTL/RS232/RS485 Interface
Up to 40 communication channels in the same frequency band
Diversified serial parameter settings
Sensitivity up to -139 dBm
LBT (Listen Before Talk)
Operating temperature range: -40 ~ +85 °C

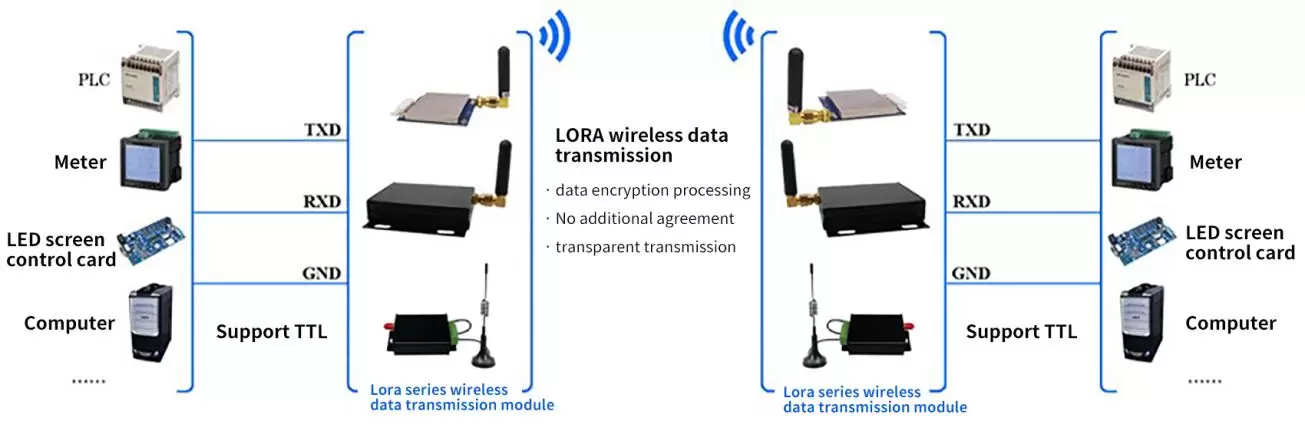

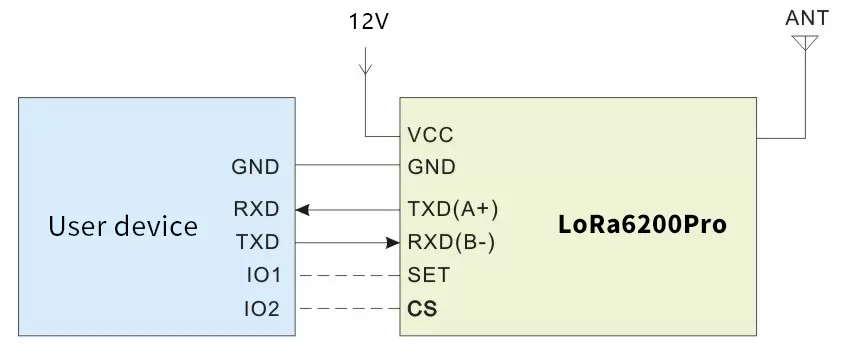

Typical application circuit of LoRa Modem LoRa6200Pro

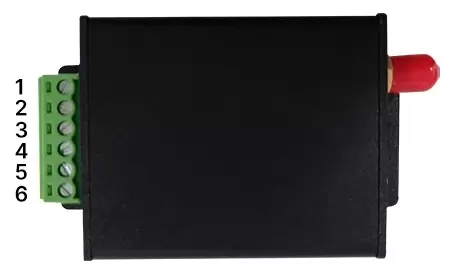

Pins of LoRa Modem LoRa6200Pro

Pin No.	Definition	Description
1	VCC	Connected to the positive power supply (typical 12V)
2	GND	Connected to ground
3	TXD/A	Serial communication data transmission
4	RXD/B	Serial communication data reception
5	SET	Configuration parameter enable (low level enable parameter configuration, default high level output)
6	CS	Module enable (low-level sleep, default high-level output)

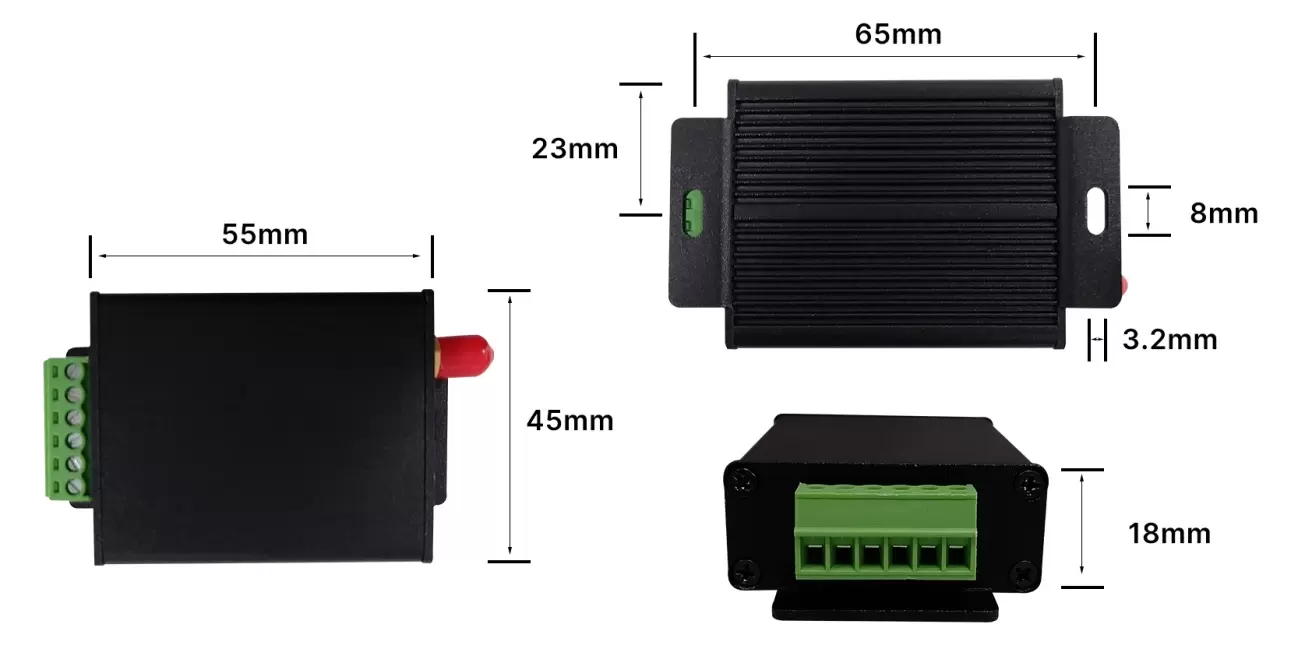

Mechanical dimensions of LoRa Modem LoRa6200Pro
