SK200 : 1W LoRa Industrial Anti Interference Wireless Switch Module
- SK200 is an industrial grade remote single-channel wireless switch module. It consists of the transmitter module SK200-TX-1W and the receiver SK200-RX with a transmission power of 1W. The design adopts LoRa spread spectrum modulation frequency hopping technology, which has high receiving sensitivity and superior anti-interference performance. Its communication distance and receiving sensitivity far exceed FSK and GFSK modulation. The module provides a single signal input and a single control output interface. It has the characteristics of simple interface and reliable operation. Users can configure the internal parameters of the modified module in combination with our PC interface. Many pairs of simultaneous communication will not interfere with each other, and the use is flexible and convenient. The system can easily replace the original wired environment with wireless control, which greatly reduces the cost of manual wiring and is widely used in industry.
- SK200 strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
The electrical parameters of SK200-TX module are as follows:
| Model | SK200-TX-1W |
| Transmit power | 29.5dBm |
| Working voltage (range) | 5V(3.3V～6.5V) |
| Sleep current | 250uA |
| Quiescent Current | 16mA |
| Emission current | 600mA |
| Size (mm) | 61.5*59*14 |
| Range of working temperature | -40℃～85℃ |
The electrical parameters of SK200-RX module are as follows:
| Parameter | Smallest | Typical | Largest | Unit | Condition |
| Operating Conditions | |||||
| Working voltage range | 5 | 12 | 30 | V | |
| Relay load | < 10 | A | @220V | ||
| Radio Frequency Parameter | |||||
| Receive current | < 10 | mA | @12V | ||
| Receiving sensitivity | -132 | dBm | |||
| Interface | I/O,Uart |
| Channel | 1 channel |
| Communication | One-way |
| Open distance (km) | 6~7 |
Features of Wireless Switch Module SK200
- Working frequency band: 433/490/868/915 MHz optional
- Transmitter power 1W
- Transceiver frequency can be freely configured
- Multiple working modes are available
- LoRa Modulation mode
- Sensitivity up to -132 dBm
- Range of working temperature：-40 ~ +85 °C
Application of Wireless Switch Module SK200
- Digital remote control
- Security system
- Wireless pump control
- Wireless remote access control
The interface description of the receiver module SK200-RX is shown in the following figure:

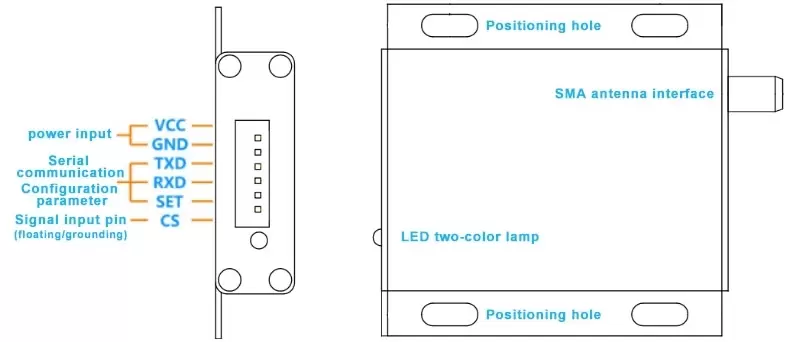

The interface description of the transmitter module SK200PRO-TX is shown in the following figure:
SK200-TX-1W:
| Pin definition | Description |
| VCC | Connect to positive pole |
| GND | Ground |
| TXD | For configuration mode parameter setting |
| RXD | For configuration mode parameter setting |
| SET | Configuration parameter enable (low level enable parameter configuration, default high level output) |
| CS | Switch signal input pin (with internal pull-up) |
Transmitter module
SK200-TX-1W
Receiver module SK200-RX
