SW490-ZT100 : 490MHz UHF Straight Rod Antenna
SW490-ZT100, a gold plated straight rod antenna, designed specially for 470/490MHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Rod Antenna SW490-ZT100
- Frequency Range: 490±5 MHz
- VSWR: ≤ 1.5
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

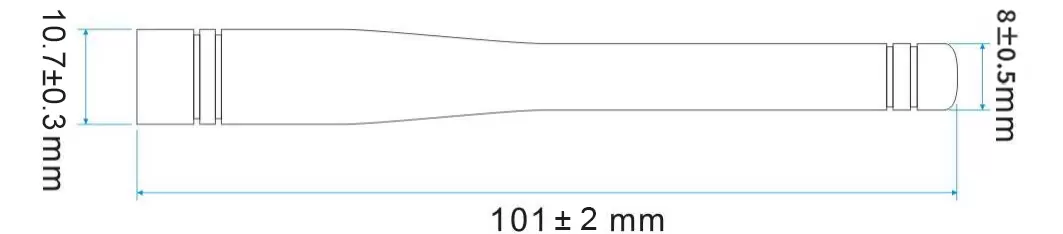

- Height: 101±2 mm
- Interface form: SMA
- Lead wire: none
- Antenna Color: black
- Weight: 9 g
| Frequency | 470/490MHz |
| Type | Rod |
| Gain | 2.15dBi |
| Size (mm) | 100~150 |

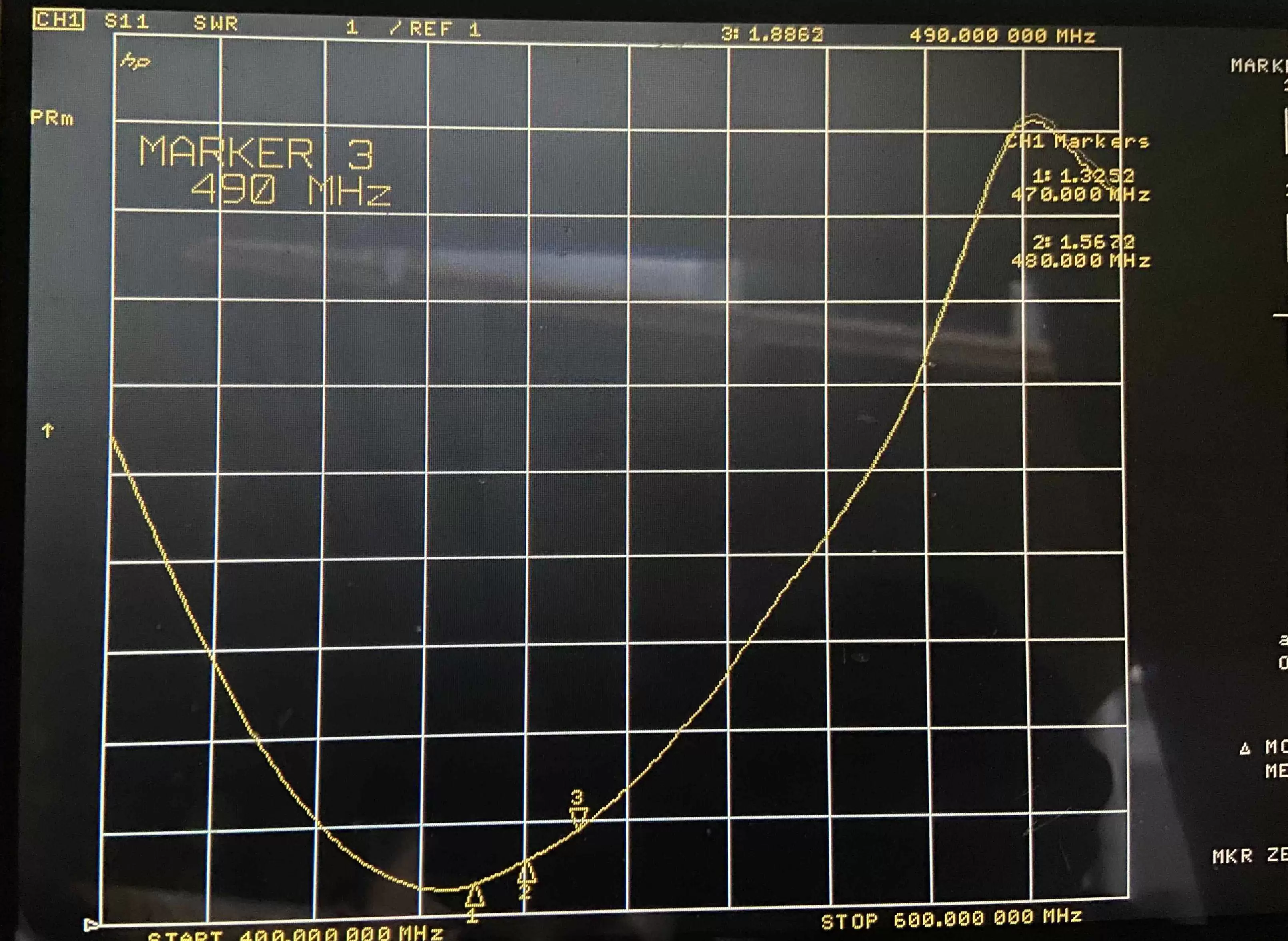

Antennas have been tested under wireless simulated environment by Network Analyzer.
