SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna
SW433-ZT100 : 433MHz UHF Straight Rod Antenna

SW433-ZT100 : 433MHz UHF Straight Rod Antenna

SW433-ZT100, a straight rod antenna, designed specially for 433MHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter

  • Frequency Range: 433±5 MHz
  • VSWR: ≤ 1.5
  • Gain: 3.0 dBi
  • Input impedance: 50 Ω
  • Max power: 10 W
  • Polarization: vertical polarization
  • Height: 101±2 mm
  • Interface form: SMA
  • Lead wire: none
  • Antenna Color: black
  • Holster, biggest diameter Φ 11 mm
  • Weight: 10 g
Frequency 433MHz
Type Rod
Gain 3dBi
Size (mm) 100~150

Mechanical sizes of rod antenna SW433-ZT100

Antennas have been tested under wireless simulated environment by Network Analyzer.

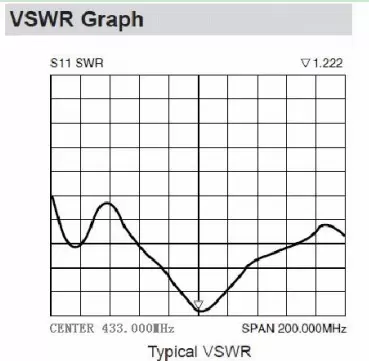

SW433-ZT100 VSWR Chart
