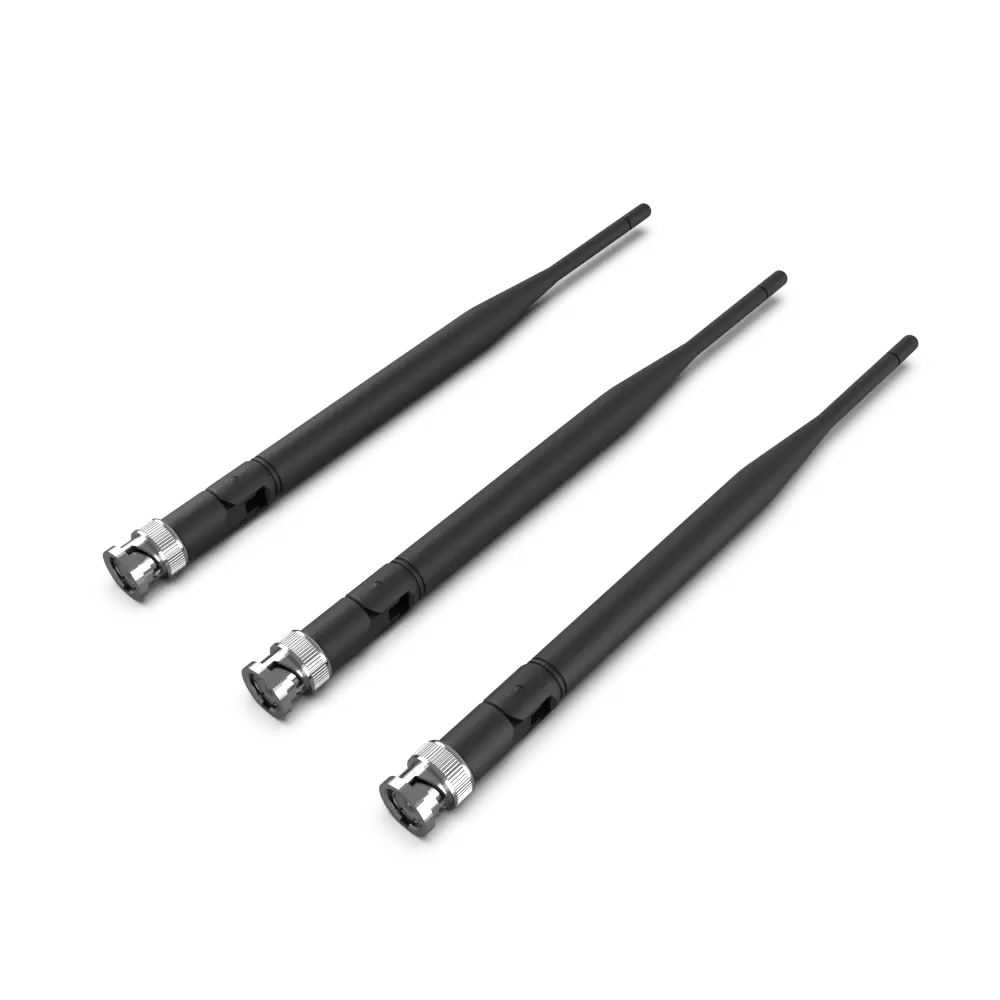

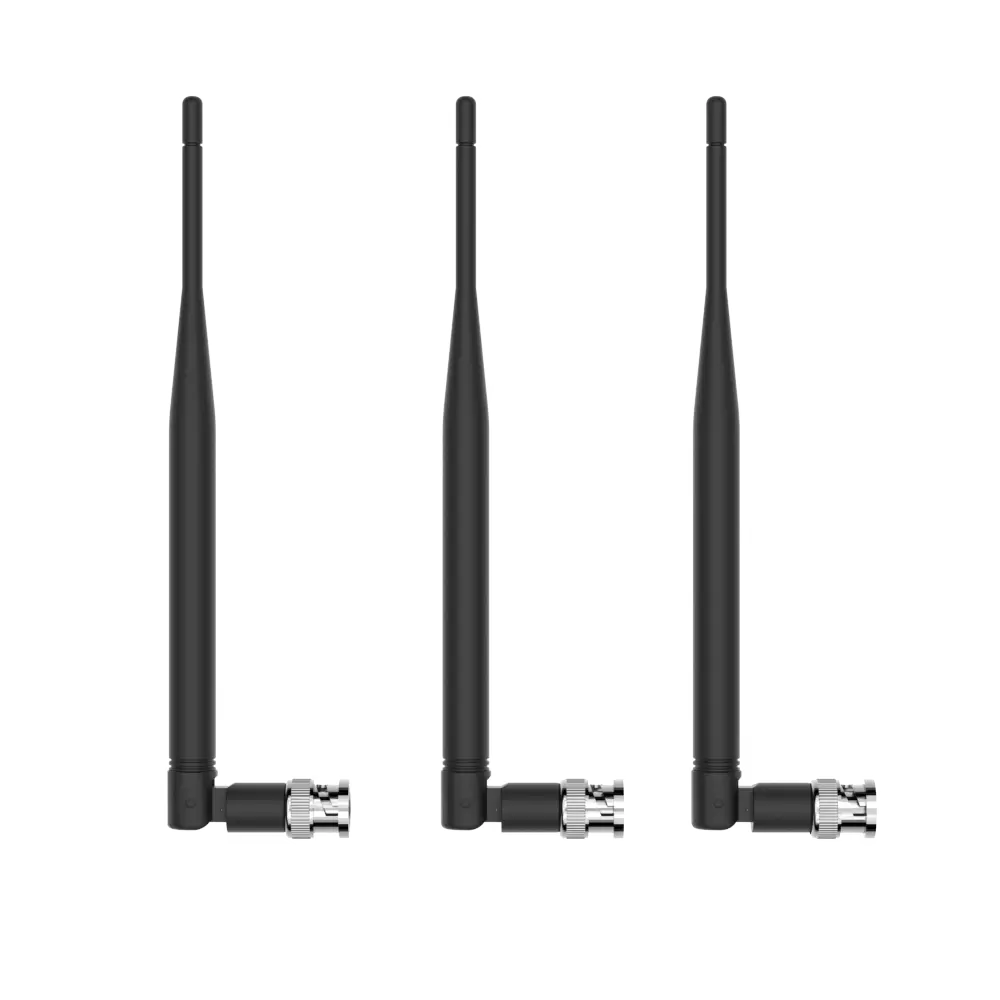

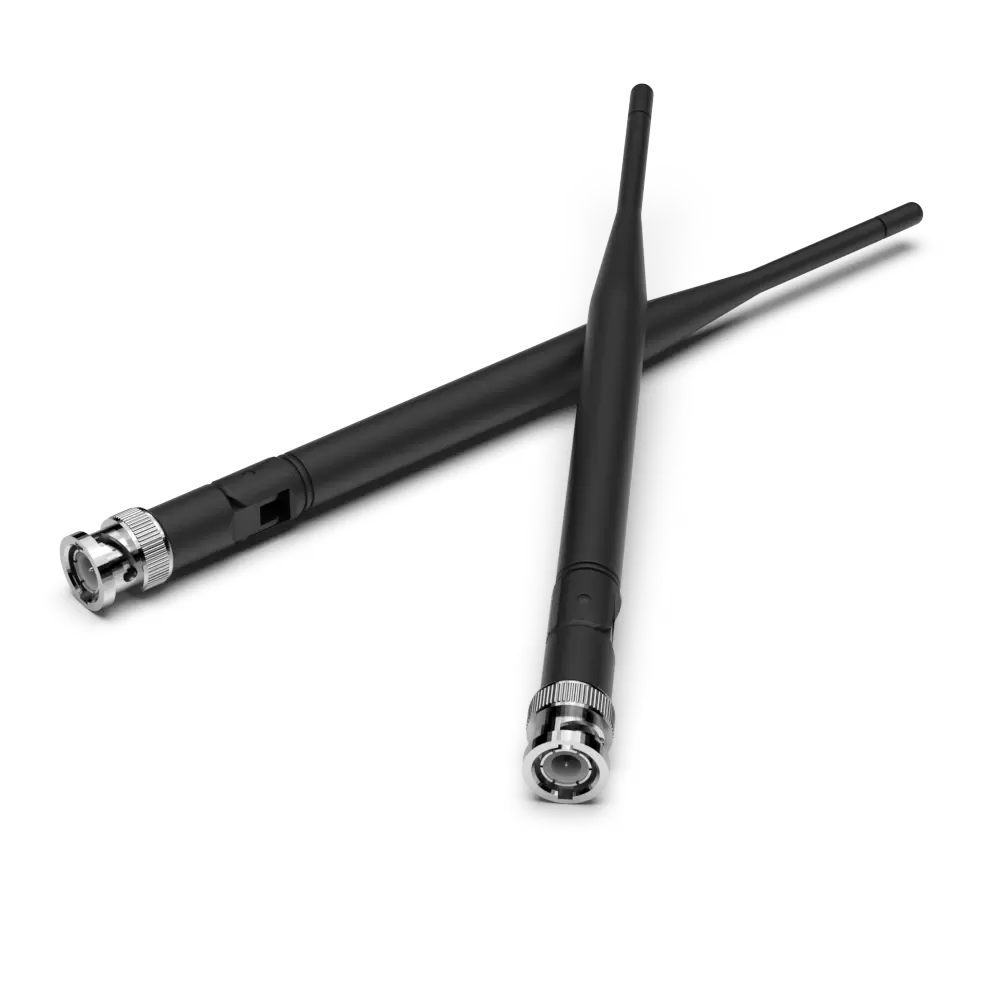

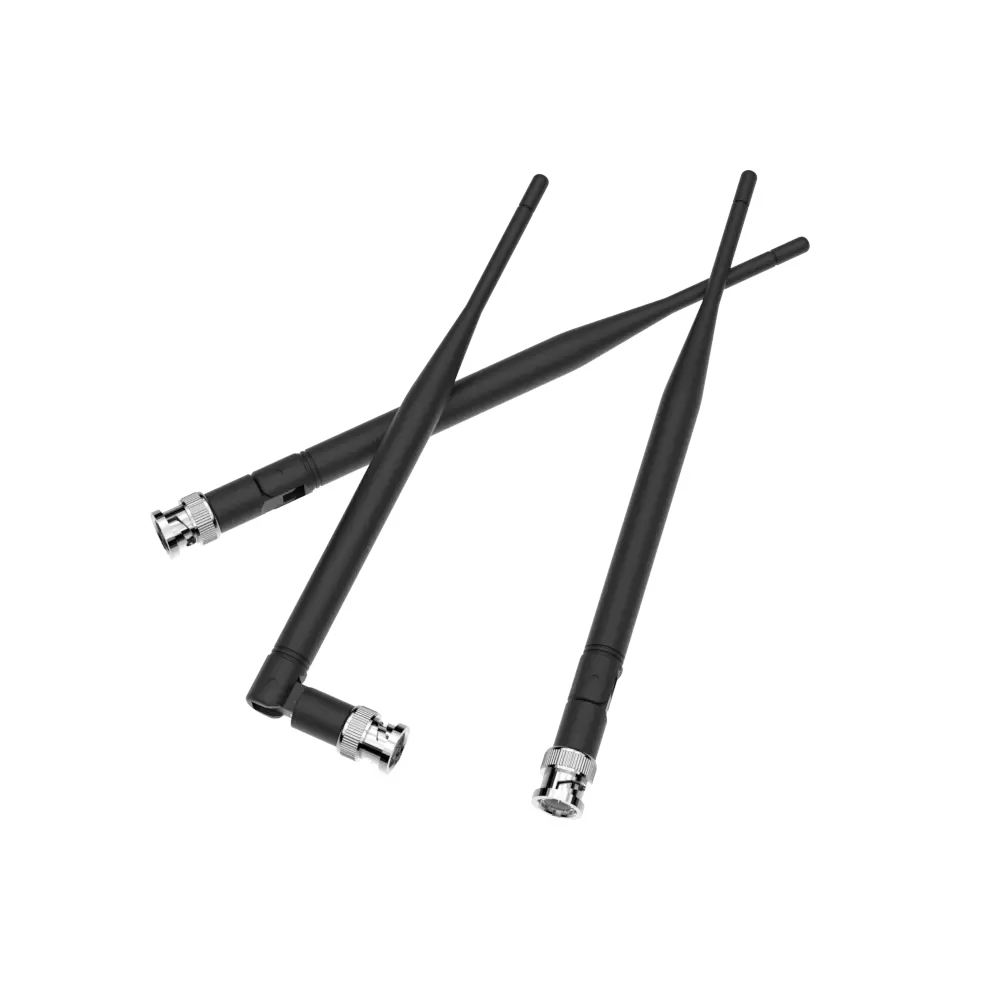

SW868-ZD210-BNC : Foldable Rod Antenna 868MHz Vibration-Proof And Aging-Resistant Capability
SW868-ZD210-BNC, a folding rod antenna, designed specially for 868MHz wireless communication. It has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
Frequency Range: 850~880 MHz

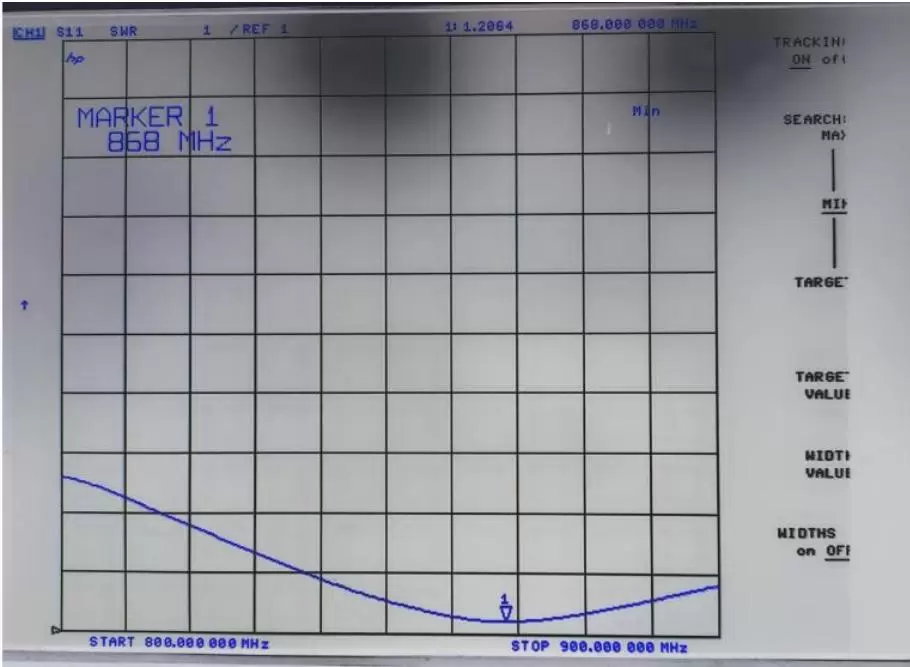

VSWR: ≤ 1.5
Gain: 3.0 dBi
Input impedance: 50 Ω
Max power: 10 W
Polarization: vertical polarization

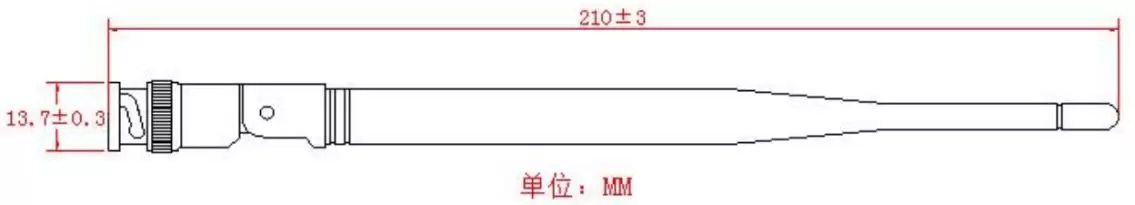

Height: 210±3 mm
Interface form: BNC/J
Lead wire: none
Antenna Color: black
Weight: 32 ±2 g
| Frequency | 868MHz |
| Type | Rod |
| Gain | 3dBi |
| Size (mm) | > 150 |
