SW868-ZD210-BNC : Foldable Rod Antenna 868MHz Vibration-Proof And Aging-Resistant Capability
Type: Rod
Frequency: 868MHz
Gain: 2.16~3dBi
Size(mm): >150
Material&Technology: Others
HOME > PRODUCTS > RF ANTENNAS > SW868-ZD210 : 868MHZ FOLDING ROD ANTENNA
SW868-ZD210 : 868MHz Folding Rod Antenna
SW868-ZD210, a folding rod antenna, designed specially for 868MHz wireless communication. It has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 850~880 MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

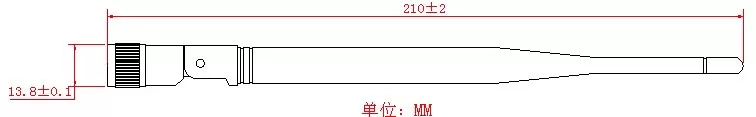

- Height: 210±2 mm
- Interface form: SMA-J
- Lead wire: none
- Antenna Color: black
- Weight: 32 g
| Frequency | 868MHz |
| Type | Rod |
| Gain | 3dBi |
| Size (mm) | > 150 |

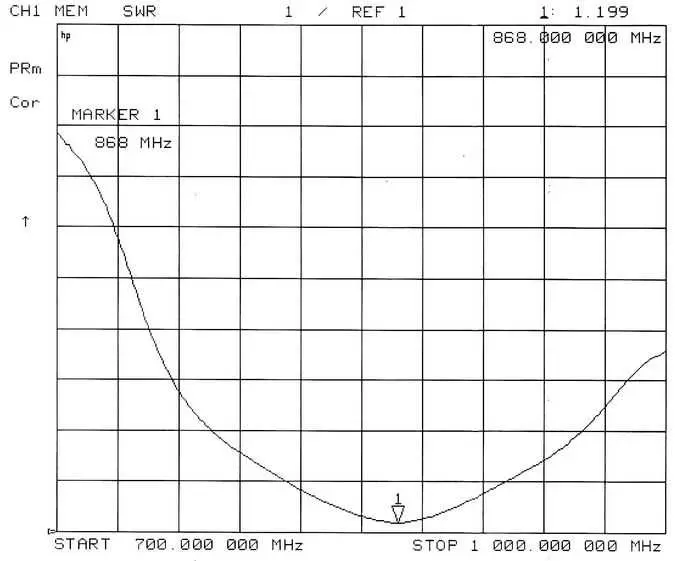

Antennas have been tested under wireless simulated environment by Network Analyzer.
