SW490-XP1M : 490MHz High Gain Small Sucker Antenna
SW490-XP1M, a small sucker antenna, designed specially for 470/490MHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 490±10 MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W

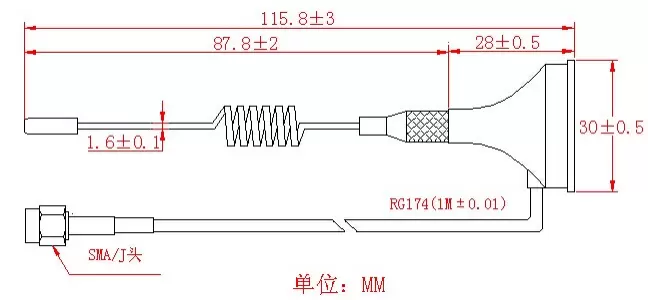

- Height: 115.8±3 mm
- Interface form: SMA-J
- Lead wire: 1m
- Antenna Color: black
| Frequency | 470/490MHz |
| Type | Magnetic |
| Gain | 3dBi |
| Size (mm) | 100~150 |

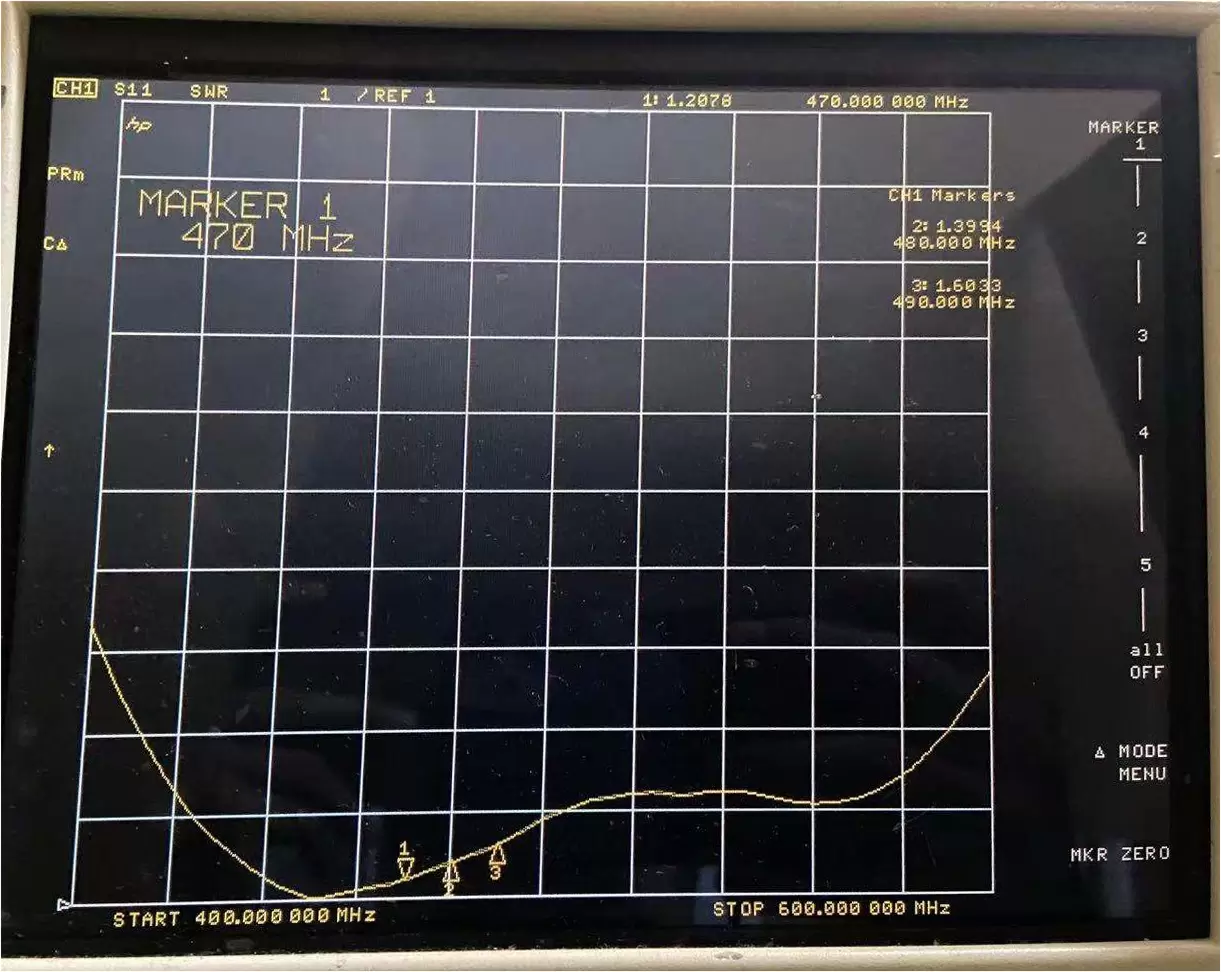

Antennas have been tested under wireless simulated environment by Network Analyzer.
