SW315-XP1M : 315MHz High Gain Small Sucker Antenna
SW315-XP1M, a small sucker antenna, designed specially for 315MHz wireless communication, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency range: 315 ±10MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Weight：40 g

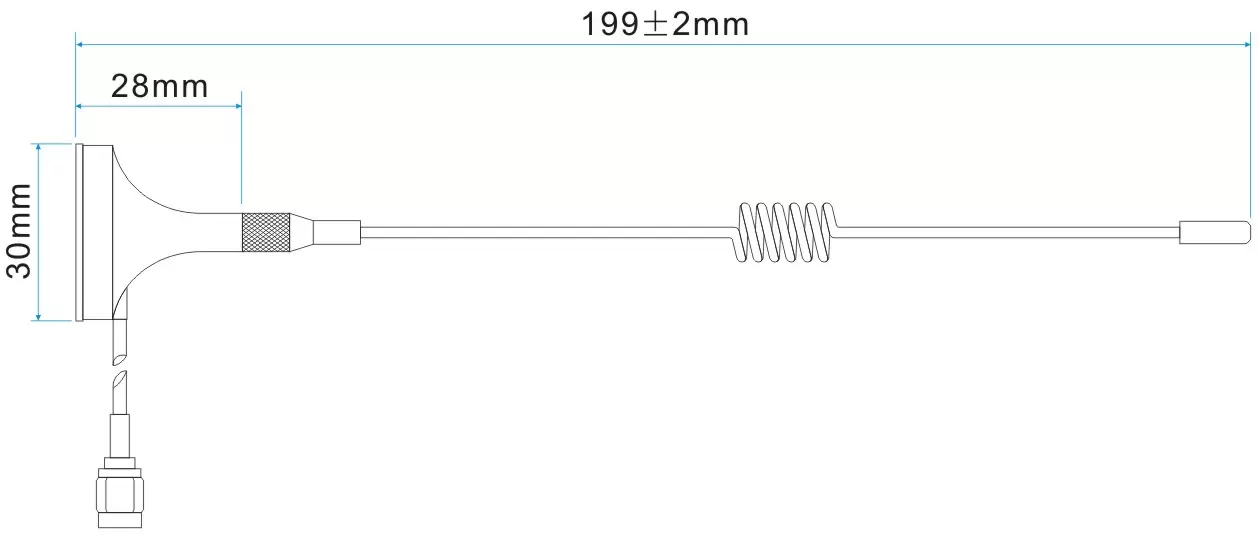

- Height: 199±2mm
- Interface form: SMA-J
- Cable Length: 1m
- Antenna Color: black
| Frequency | 315MHz |
| Type | Magnetic |
| Gain | 3dBi |
| Size (mm) | > 150 |

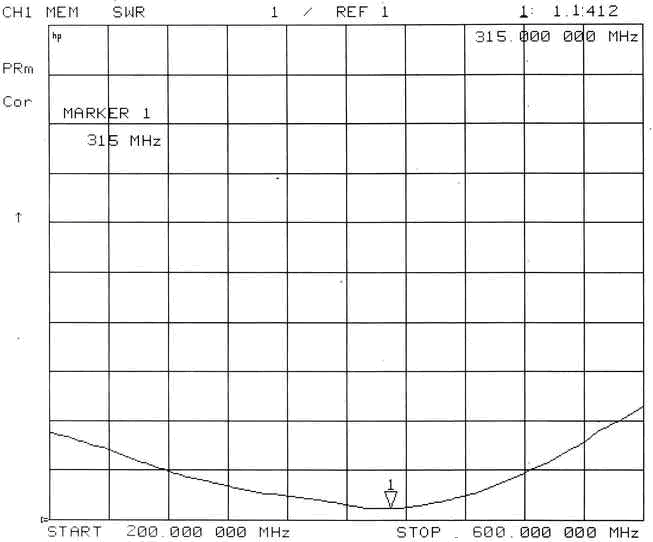

Antennas have been tested under wireless simulated environment by Network Analyzer.
