LoRa6200II : 2W High Rate & Wide Voltage Uart LoRa Modem With ESD Protection

The LoRa II module is a new series of upgraded networking LoRa Modems. It is based on Semtech's LLCC68 chip and uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity. The penetrating ability and communication distance are much better than the current FSK and GFSK products, and have stronger anti-interference.We design the module as all-in-one way to meet the different customer’s requirement. Users can switch between different working modes through the PC software or commands. In MESH mode, the routing module has automatic routing function, user can form a network without blind zone without distance limitation. At the same time, users can enable encrypt AES128 wireless data through PC software or serial instructions, which makes wireless data communication more safety.
LoRa6200II is designed for 2W output power and embedded small size, which is widely used in wireless remote control industries.
LoRa6200II strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.

Download

Features of LoRa Modem LoRa6200II

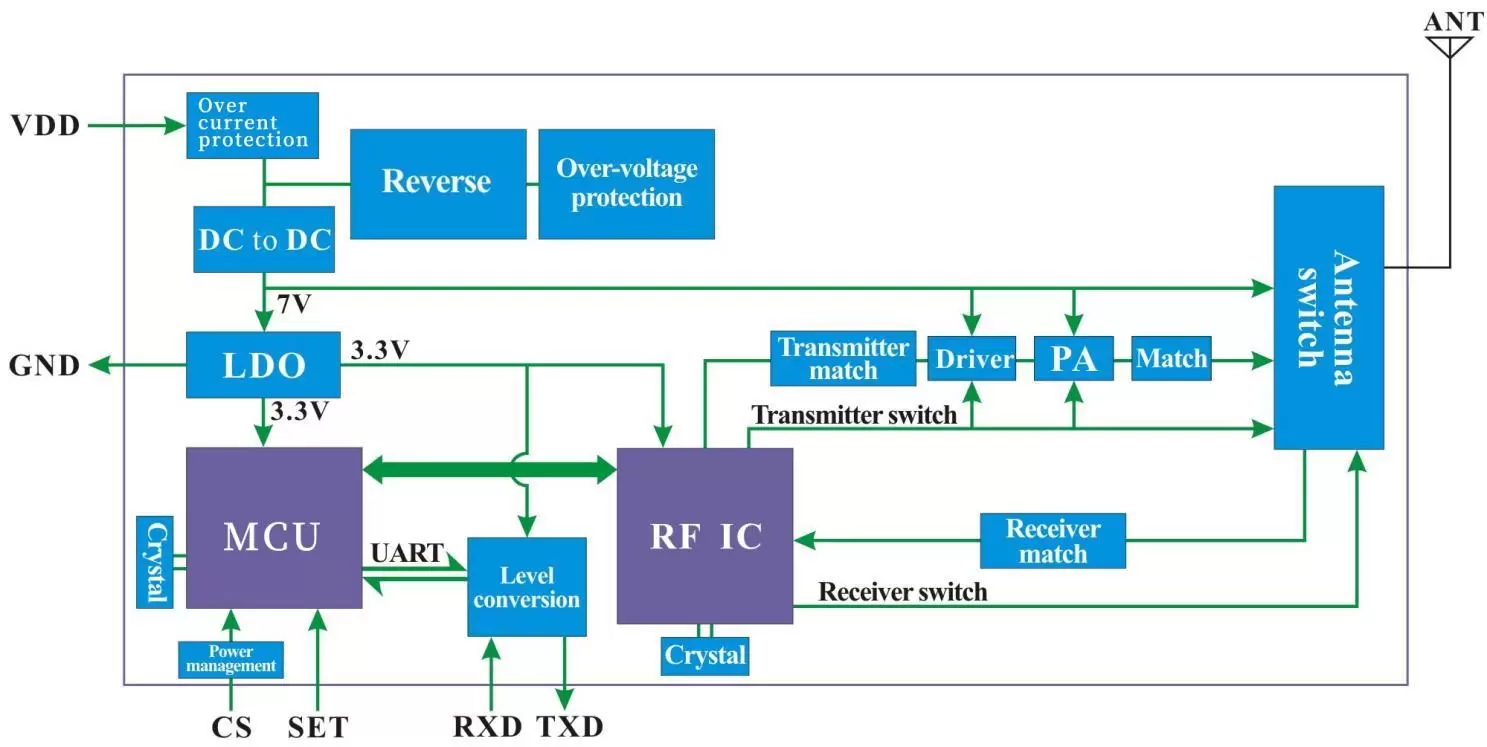

Block Diagram of LoRa Modem LoRa6200II

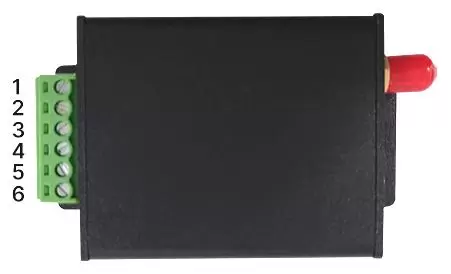

Pins of LoRa Modem LoRa6200II

NO.	PIN	Description
1	VCC	VCC (external 9-30V)
2	GND	Power ground
3	TXD/A+	TXD of Serial Interface
4	RXD/B-	RXD of Serial Interface
5	SET	Setting mode enable when CS is pulled high (0: setting mode, 1: normal working mode)
6	CS	Module enable (sleep at low level, default high level output)

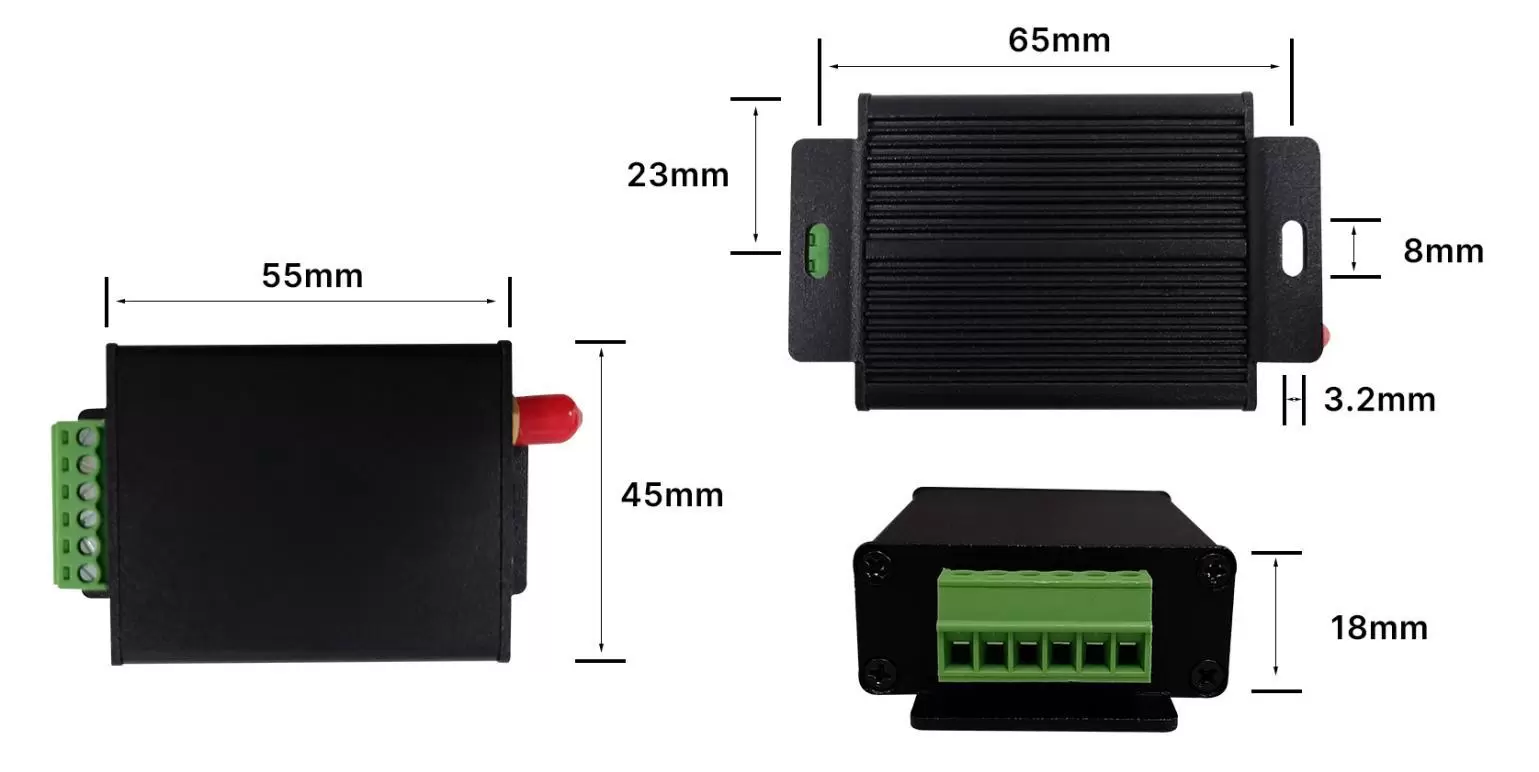

Mechanical dimensions of LoRa Modem LoRa6200II
