LoRa6100DZ : 1W Small Size MESH Network LoRa Modem For Industrial Terminals

The LoRa6100Pro LoRa modem is designed for 1w output power and is available in TTL/RS232/RS485 levels. It is widely used in wireless remote transmission control.
LoRa6100Pro strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
Note: The LoRa Pro series can be configured to be compatible with our previous Uart LoRa modules.
Hardware Features:
1. Small size, long-distance, metal shell, three-level interface optional TTL, RS232, RS485.
2. Built-in hardware anti-crash self-reset circuit to resist strong external interference signals.
3. Overcurrent, overvoltage and reverse connection protection circuit.
Software Features:
1. AES128 data encryption.
2. LBT (Listen Before Talk).
3. Node/route/node+route optional in MESH mode.

Download

Note: The module is internally regulated by 3.3V LDO. The CS pin and SET pin control are 3.3V levels. TXD and RXD are also 3.3V levels.

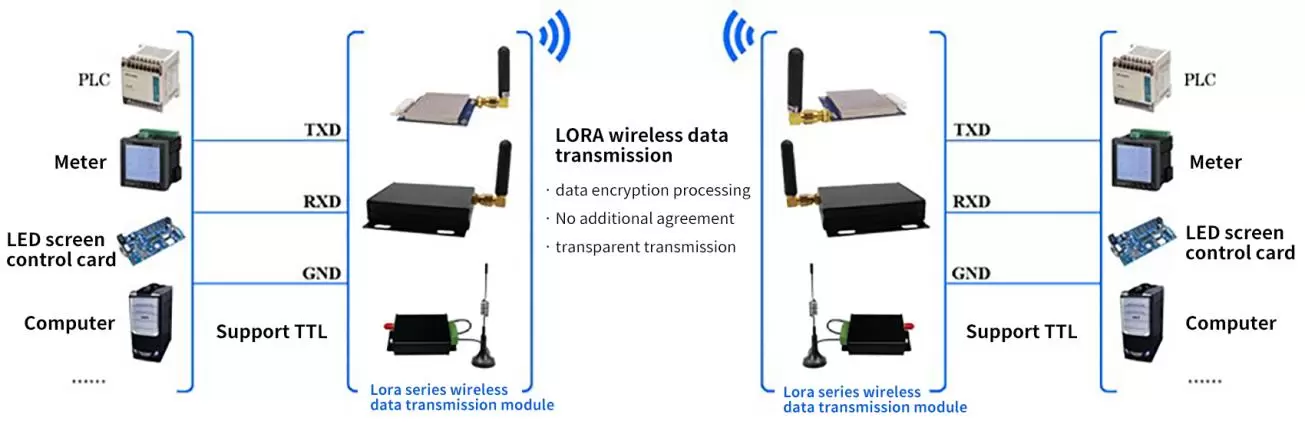

Features of LoRa Modem LoRa6100DZ

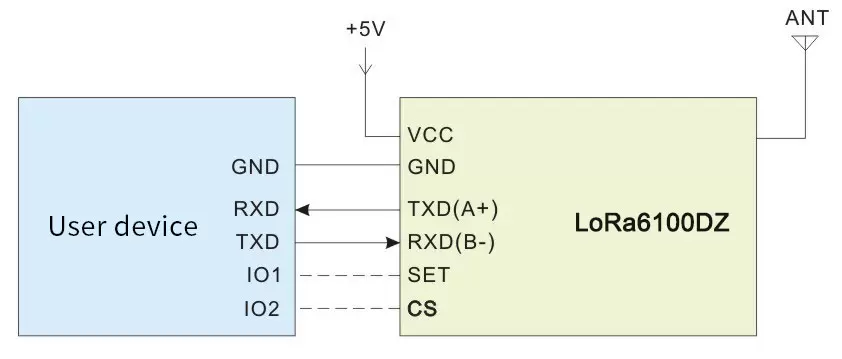

Typical application circuit of LoRa Modem LoRa6100DZ

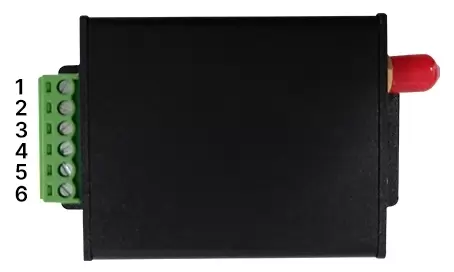

Pins of LoRa Modem LoRa6100DZ

Pin No.	Definition	Description
1	VCC	Connected to the positive power supply (typical 12V)
2	GND	Connected to ground
3	TXD/A	Serial communication data transmission
4	RXD/B	Serial communication data reception
5	SET	Configuration parameter enable (low level enable parameter configuration, default high level output)
6	CS	Module enable (low-level sleep, default high-level output)

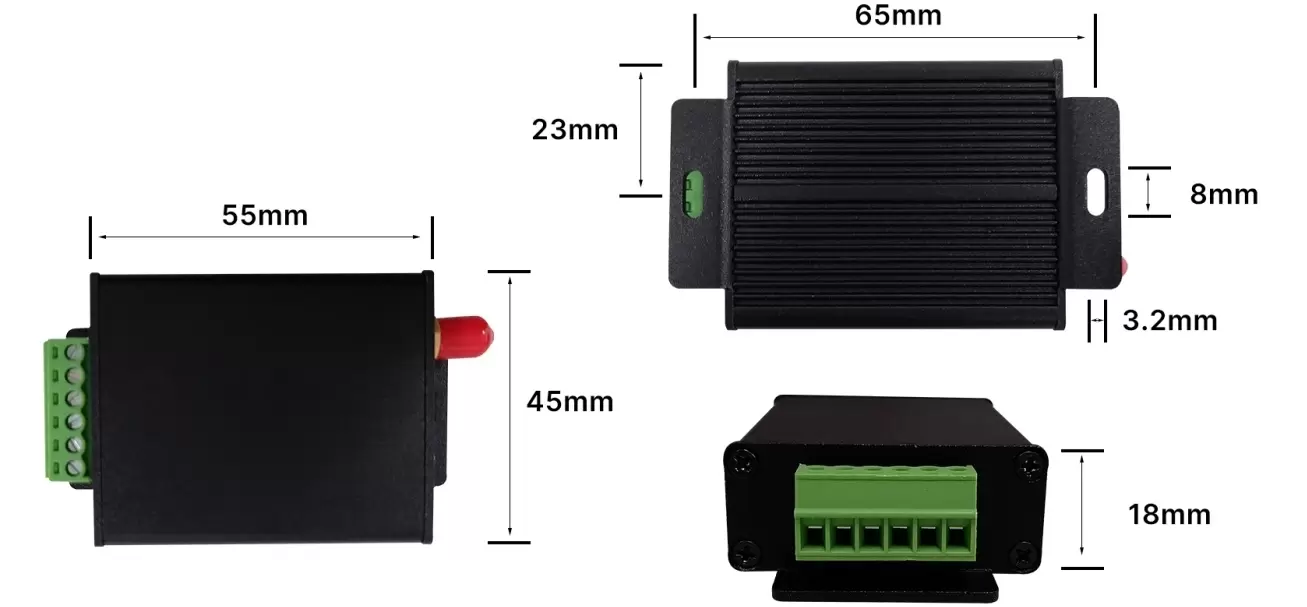

Mechanical dimensions of LoRa Modem LoRa6100DZ
