  • STP200M is 3D pedometer module with functional IC chipset which include a G-sensor and MCU. It has adopted the standard IIC interface, with the 3D MEMS sensor (G sensor) and high precision of 3D pedometer algorithm, it can give a precisely pedometer in any direction. This chipset has the characteristics of small size, low power consumption and etc. The standard I2C digital interface ensures it can be easily embedded in various kinds of pedometer functional system.
  • ★Note:The algorithm of our pedometer is adjustable according to customer’s requirement. We can provide the pedometer for shoes, table class pedometer and bracelet pedometer wearing on wrist, pedometer wearing on waist and pedometer putting inside the pocket. Pls indicate clearly when purchasing.
Parameters Condition   Performance   Unit
Min. Typ. Max.
Working voltage   2.3 3 3.6 V
Working current @3V   60    uA
Sleep current     < 5   uA
Step resolution     1   Step
Pedometer wrror Uniform Working   ± 3%   Step
Working temperature   -10   50
Storage temperature   -10   50
Special Function Pedometer module

Features of 3D Pedometer Module STP200M

  • IIC interface
  • High precision 3D pedometer algorithm
  • Low sleep current
  • Ultra-small size

Applications of 3D Pedometer Module STP200M

  • 3D pedometer
  • MP3 pedometer
  • Pedometer shoes
  • Outdoor handheld
  • Healthcare products

Pins of 3D Pedometer Module STP200M

Pin NO. Pin name Description
1 GND Connect ground
2 GND Connect ground
3 VCC Connect positive power 2.3-3.6V
4 GND Connect ground
5 SCK I2C clock output
6 SDA I2C data output
7 STEP Puls-output pin

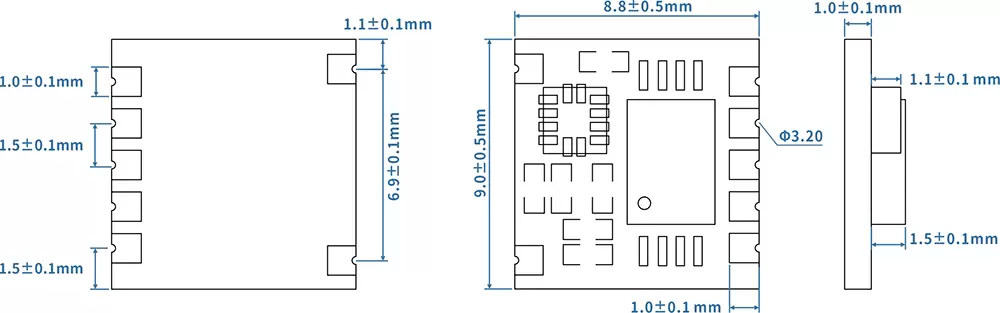

Mechanical Dimensions of 3D Pedometer Module STP200M
