SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection
SV653 : 700mW Industrial USB RF Modem With ESD Protection

SV653 : 700mW Industrial USB RF Modem With ESD Protection

  • SV653 is an Industrial class & highly-integrated RF modem with USB interface. SV653 has good sensitivity and 700mW output power to achieve long RF range and reliable RF communication. To avoid the interference, SV653 provides 40 frequency channels and configurable Net ID. SV653 is flexible but easy to use, it comes with many parameters, such as: frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device.
  • SV653 strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
Contact us
Download
Parameter  Min. Typ. Max. Unit Conditions
Operation Conditions
Supply Voltage 4.5 5.0 5.5 V
Operating Temperature -40 25 +85 ℃
Current Consumption
RX Current   26   mA
TX current   750   mA @28dBm
RF Parameters
Frequency 414.92 433.92 453.92 MHz @433MHz
470.92 490.92 509.92 MHz @490MHz
849.92 868.92 888.92 MHz @868MHz
895.92 914.92 934.92 MHz @915MHz
Air data rate 1.2 9.6 115.2 Kbps GFSK
Output power 10 / +28 dBm
Sensitivity   -121   dBm @1.2Kbps
Interface USB
Network STAR,Point-to-point
Frequency 433MHz,470MHz,868MHz,915MHz
Modulation (G)FSK
Output Power 700mW

Features of RF Modem SV653

  • 433/490/868/915 MHz (Customizable240-930 MHz)
  • Industrial class
  • 40 channels
  • 4 bytes Net ID &2 bytes Node ID
  • Series Data Rate: 1200 ~ 115200 bps
  • Air Data Rate: 1200 ~ 115200 bps
  • GFSK modulation
  • RSSI
  • Interface: USB
  • Antenna matching automatically
  • Bi-directional & Half duplex
  • Sensitivity: -121 dBm
  • Max output power: 700 mW(+28 dBm)
  • Working voltage: 4.5~ 5.5V
  • Working temperature: -40 ~ +85 °C
  • Weight: 47g
  • Parameters save automatically

Applications of RF Modem SV653

  • Remote control telemetry
  • Security system
  • Industrial data acquisition
  • Home automation
  • Wireless data communication
  • Access system
  • Robot control
  • Wireless PC peripherals

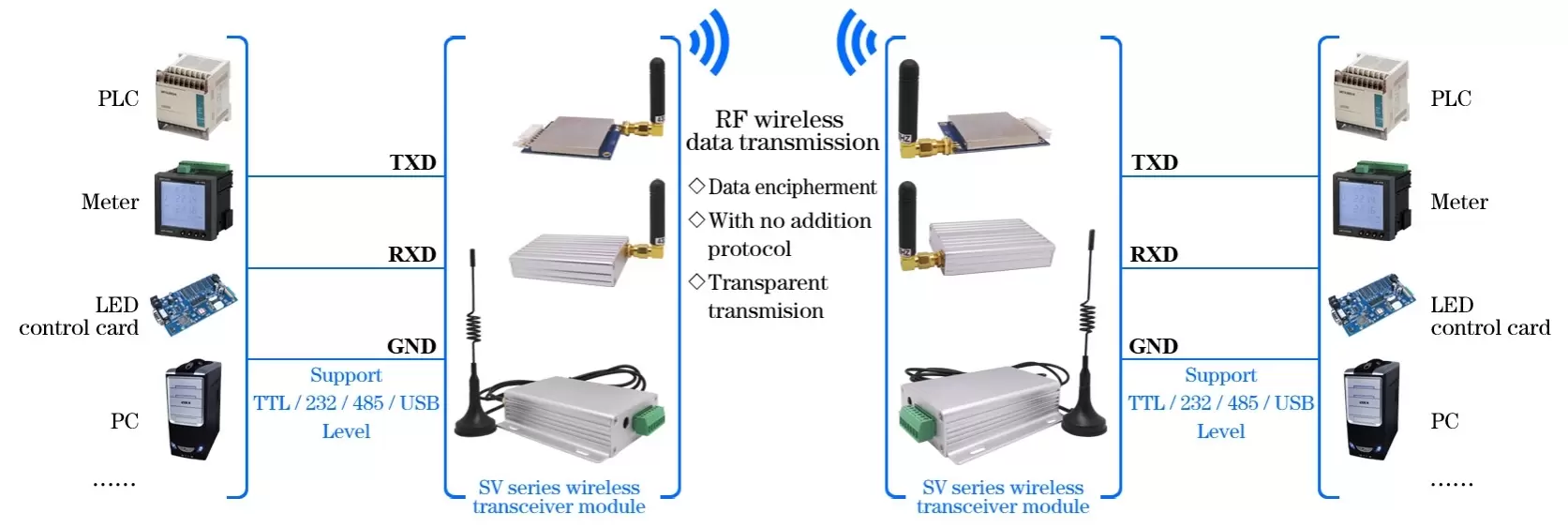

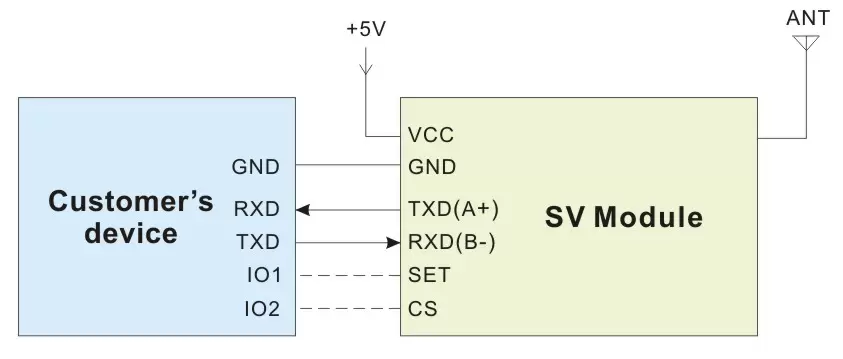

Typical Application Circuit of RF Modem SV653

Pins of RF Modem SV653

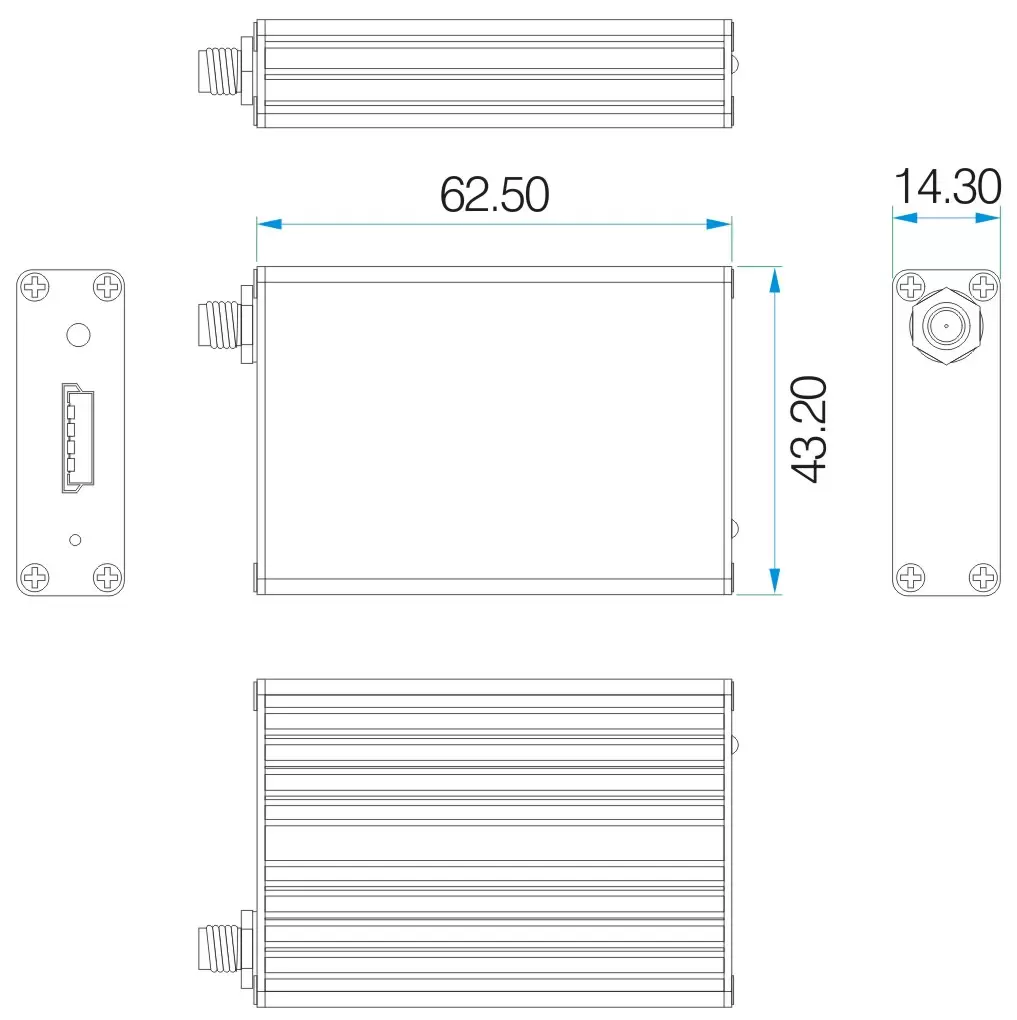

Mechanical Dimensions of RF Modem SV653
