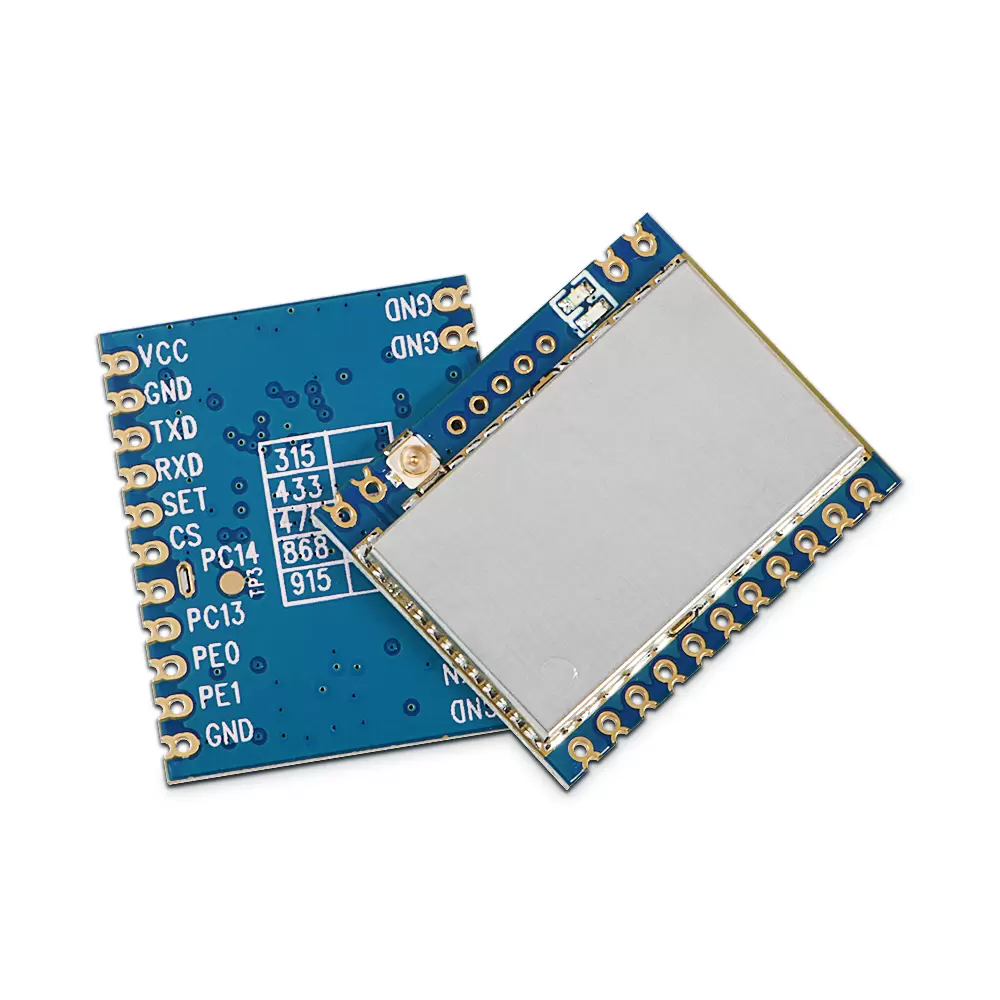

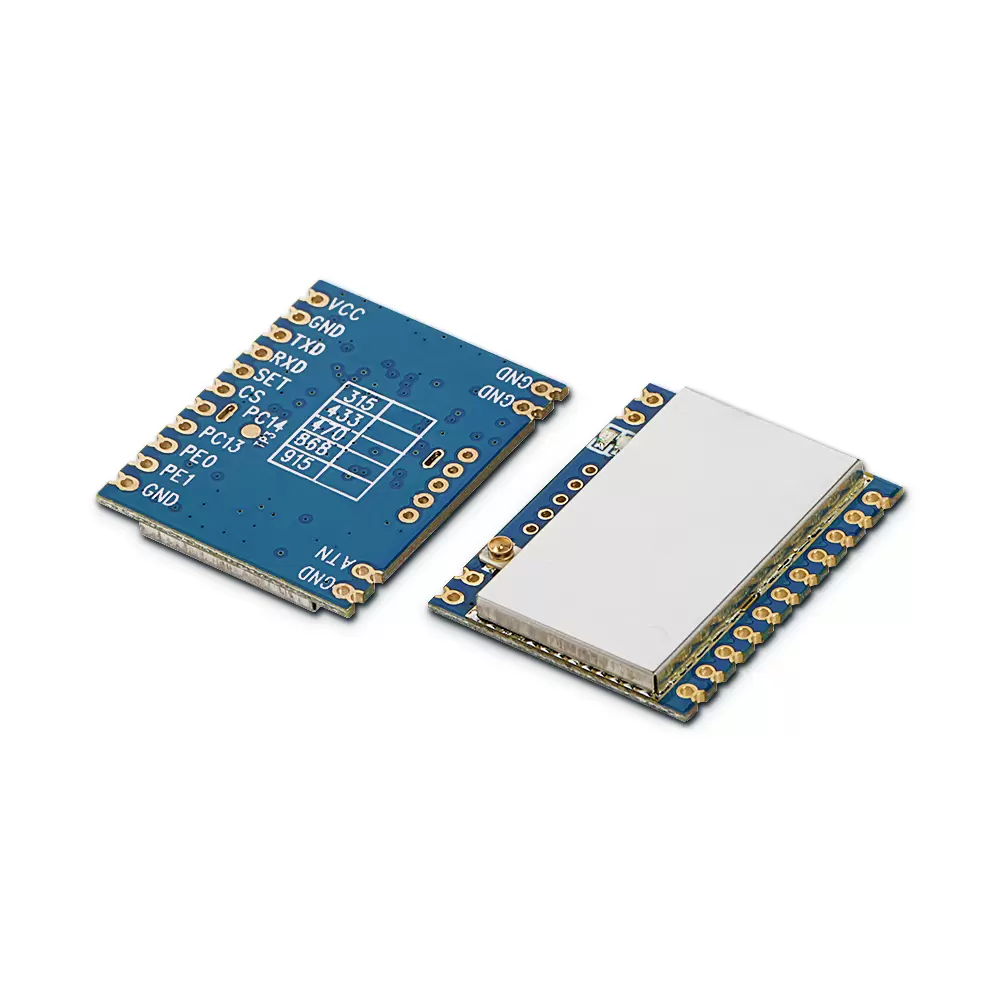

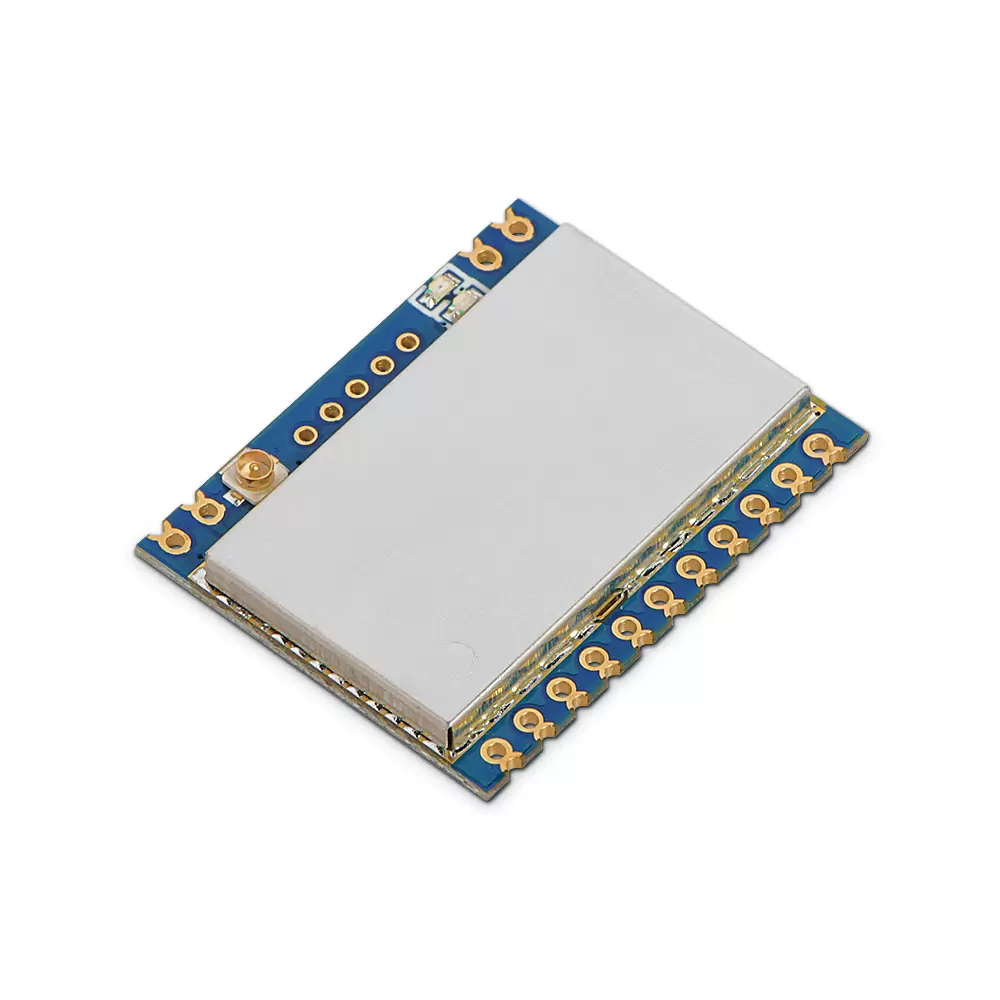

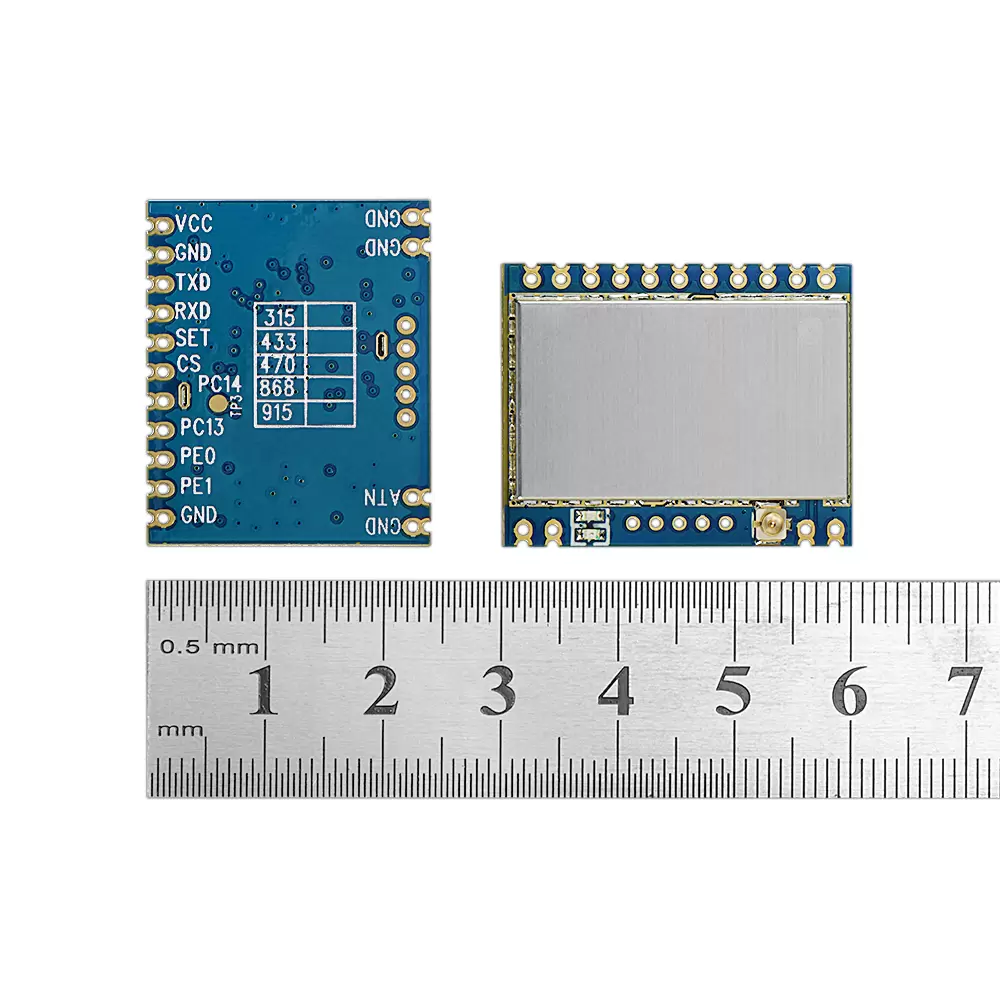

SV610PRO 100mW High Integration Wireless Transmission Module
The SV610Pro is an industrial-class, highly-integrated RF transceiver module that offers a standard TTL interface for seamless integration with customer devices.
It incorporates a high-performance narrow-band RF chip from Silicon Lab, USA.
The module's exceptional low sensitivity and 100mW output power ensure superior communication performance.
Additionally, it provides multiple frequency channels and a configurable network ID to minimize wireless interference during transmission.
Users can read or modify the internal parameters through our provided PC software or by sending specific serial commands.
The compact size and convenient settings of the SV610Pro make it extensively used in industrial control applications.
The SV610Pro is manufactured and tested using a strict lead-free process, complying with RoHS and Reach standards.
Parameters | Min. | Typ. | Max. | Unit | Condition |
Working Condition | |||||
Voltage range | 3.3 | 4 | 6 | V | |
Operating Temperature | -40 | 25 | +85 | ℃ | |
Power Consumption | |||||
Rx current | < 22 | mA | |||
Tx current | < 95 | mA | |||
RF Parameters | |||||
Frequency range
| 414.92 | 433.92 | 453.92 | MHz | @433MHz |
470.92 | 490.92 | 509.92 | MHz | @490MHz | |
849.92 | 868.92 | 888.92 | MHz | @868MHz | |
895.92 | 914.92 | 934.92 | MHz | @915MHz | |
Data rate | 1.2 | 9.6 | 1000 | Kbps | FSK |
Output power | -1 | 20 | dBm | software-configurable | |
Sensitivity | -123 | dBm | @1.2Kbps | ||
Features
n Transmission distance in open area up to 2000 meters @ 1.2kbps
n 433/470/868/915 MHz(Customizable)
n 40 channels
n 4-bytes Network ID
n Serial parameters configurable
n FSK modulation mode
n RSSI signal strength monitoring available
n Interface: TTL
n Max air rate: up to 1Mbps
n Automatic antenna matching and
bidirectional switch control
n Sensitivity: -123 dBm
n Maximum output power:
100 mW (+20 dBm)
n Working voltage: 3.3 ~ 6.0
n Working temperature: -40 ~ +85 °C
n Weight: 2.0g
Application
Smart Industry
n Security Systems
n Emergency Fire Communication
n Sensor Data Collection
n Industrial Remote Data Transmission
n Power Line Inspection
n LED Screen Data Transmission
n PLC (Programmable Logic Controller)
Smart City
n Smart Grid
n Street/Landscape Lighting Control
n Mine/Manhole Data Transmission
n Highway, Railway, Tunnel Data Communication
n Smart Parking
Smart Agriculture
n Agricultural Irrigation
n Drones
n Remote Control of Water Valves and Pumps
Internet of Things and Other Fields
n Remote Meter Reading
n Remote Control telemetry
n Home Automation telemetry
n Remote Medical Equipment
n Robot Control
n Access Control Systems

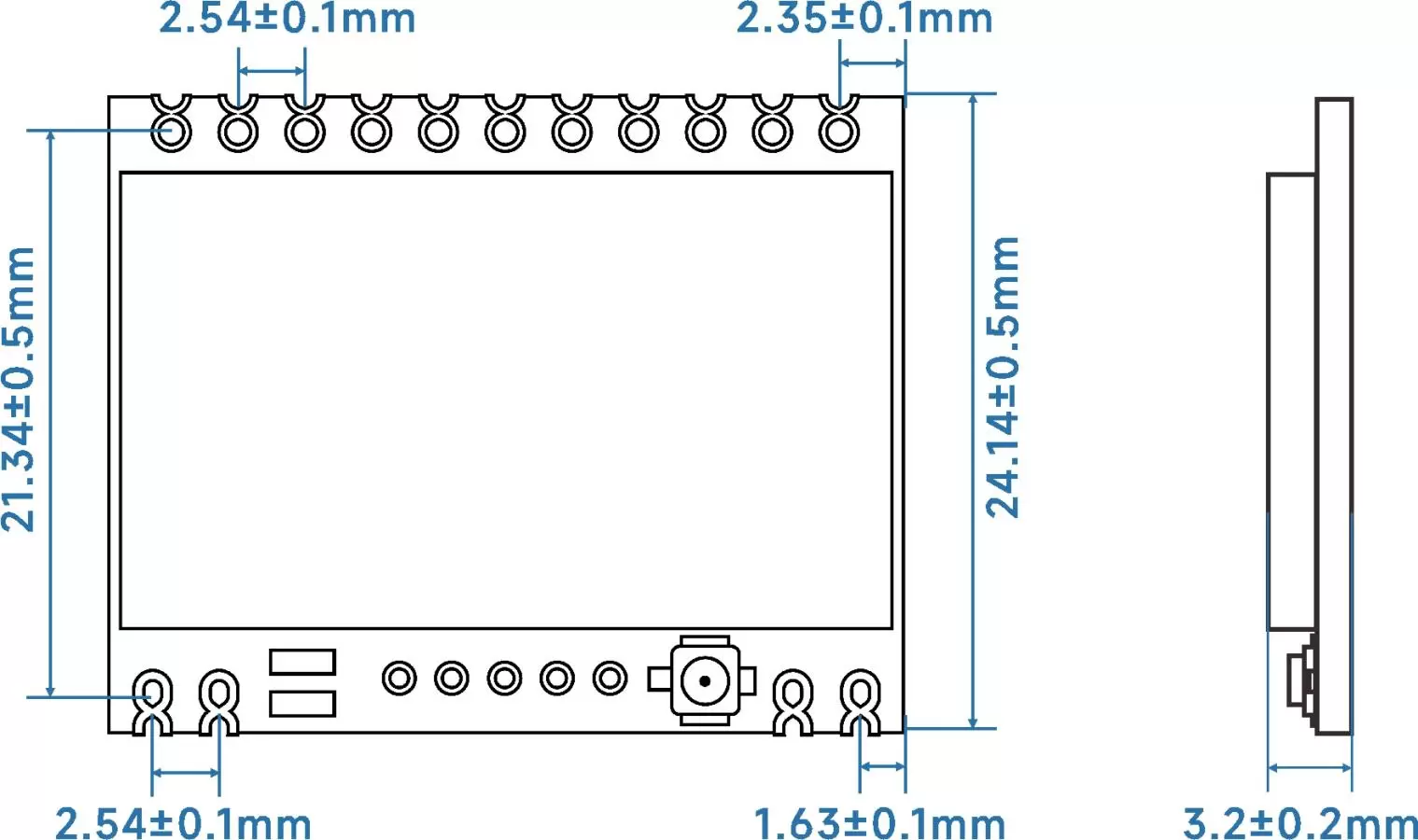

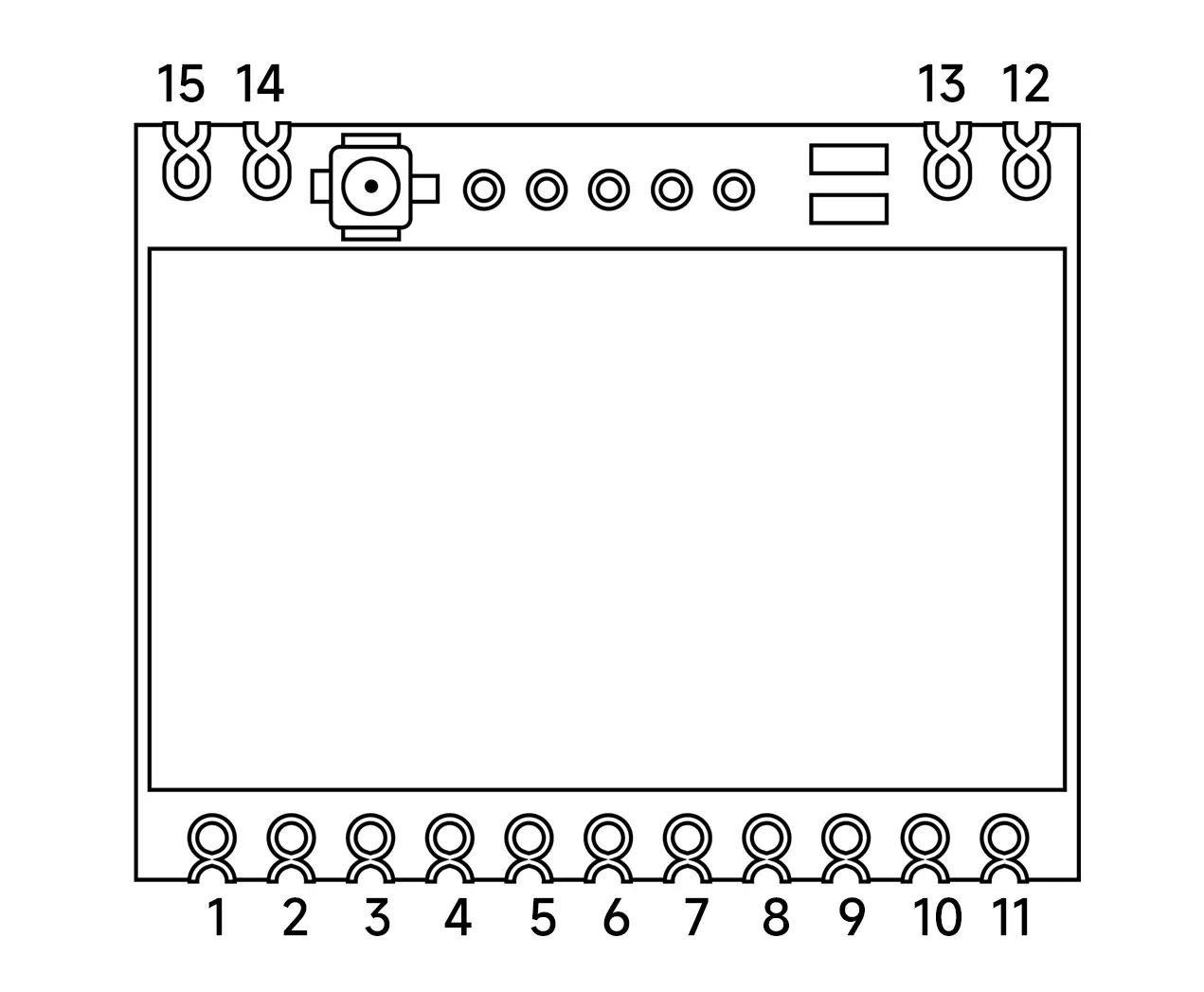

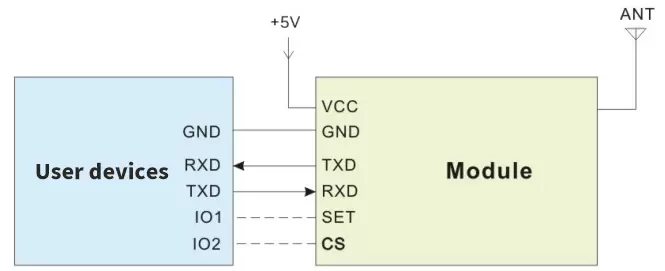

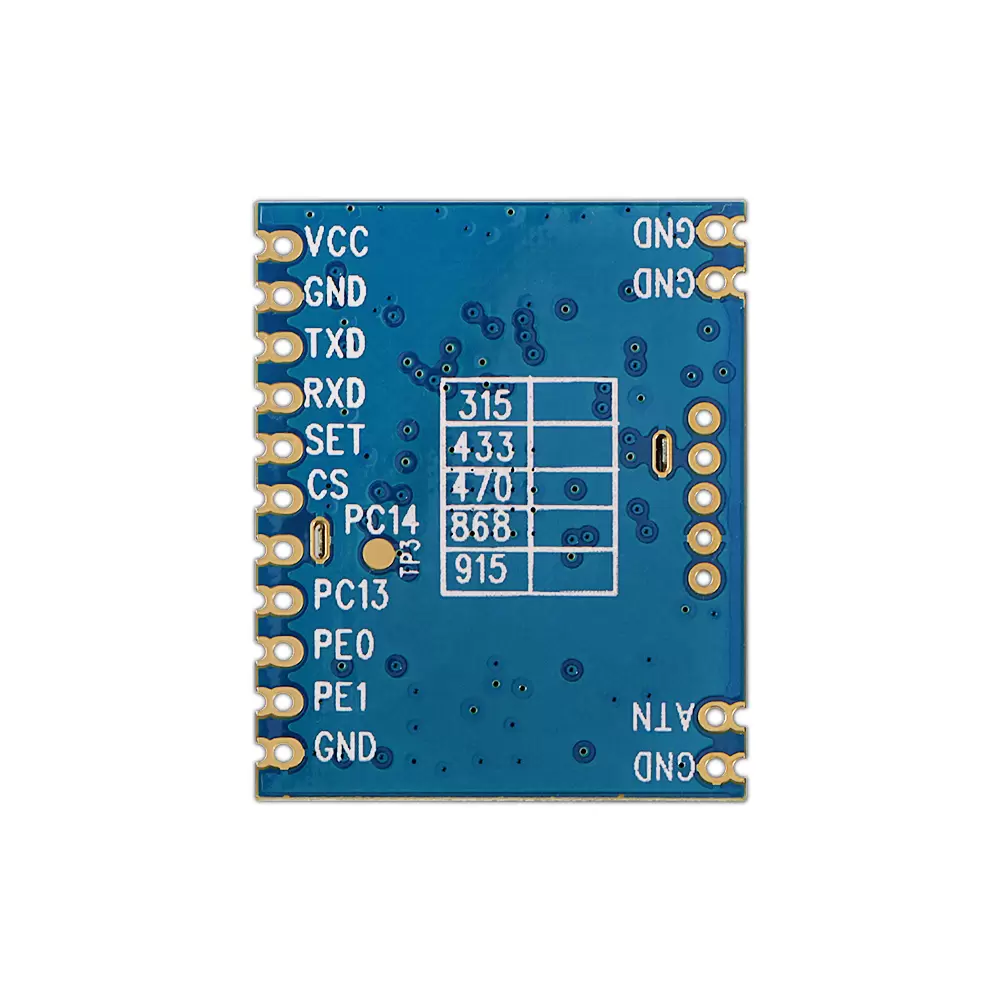

Pin Number | Pin Definition | I/O | Level | Description |
1,10,12,13,15 | GN GND | Connect the negative pole of the power supply, ground wire | ||
2 | PE1 | I/O | 0-3.3V | Connect to the internal microcontroller I/O, expandable functions |
3 | PE0 | I/O | 0-3.3V | Connect to the internal microcontroller I/O, expandable functions |
4 | PC13 | I/O | 0-3.3V | Connect to the internal microcontroller I/O, expandable functions |
5 | PC14 | I/O | 0-3.3V | Connect to the internal microcontroller I/O, expandable functions |
6 | CS | I | 0-3.3V | Module enable (low level sleep, Reserved) |
7 | SET | I | 0-3.3V | Configuration parameter enable (low level enable parameter configuration, default high level output) |
8 | RXD | I | 0-3.3V | Serial communication data reception |
9 | TXD | O | 0-3.3V | Serial communication data transmission |
11 | VCC | Connect the positive pole of the power supply (typically 4V) | ||
14 | ANT | RF signal output, connected to 50 ohm antenna |
