SK100 : Industrial One Way Wireless Switch Module
- SK100 series is industry level remote wireless switch modules, output power range from 100mW to 5W for optional. It provides a single way signal input and a single way control output interface, simple, reliable, and so on. Users can also be combined with a friendly PC interface to configure the modified module's working channel in a wireless way. Making multiple simultaneous communications will not interfere with each other and easy to use. With this module users can easily replace the original wired environment to wireless control, thereby greatly reducing the cost of manual wiring.
- SK100 strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
Note: Below parameters base on 25℃ testing environment. The following is the electrical parameters of SK100-TX module:
| Parameter | Min | Typ. | Max | Unit | Condition |
| Condition | |||||
| Working voltage | 3.3 | 5.0 | 6.5 | V | @100mW,500mW |
| 4.5 | 5.0 | 6.5 | V | @2W | |
| 9 | 12 | 18 | V | @3W | |
| 9 | 12 | 30 | V | @5W | |
| Working temperature | -40 | 25 | +85 | ℃ | |
| Rx Current | |||||
| Standby current | 25 | 30 | 33 | mA | |
| Tx current | 95 | mA | @100mW | ||
| 350 | mA | @500mW | |||
| 900 | mA | @2W | |||
| 600 | mA | @3W | |||
| 1.8 | A | @5W | |||
Note: Below parameters base on 5V power supply/ 25℃ testing environment.The following is the electrical parameters of SK100-RX module:
| Parameter | Min | Typ | Max | Unit | Condition |
| Condition | |||||
| Working voltage | 4.5 | 5.0 | 6.0 | V | |
| Working temperature | -40 | 25 | +85 | ℃ | |
| Current Consumption | |||||
| Rx current | 25 | mA | |||
| Standby current | < 5 | uA | |||
| RF parameters | |||||
| Sensitivity | -121 | dBm | |||
| Interface | I/O,Uart |
| Channel | 1 channel,4 channel |
| Communication | One-way |
| Open distance (km) | 1.5 |
Features of Wireless Switch Module SK100
- Power of SK100-TXis optional (100mW~5W)
- 40 channels for option
- Parameters set wireless by PC
- Working mode is optional (Please inform when you place order)
- GFSK modulation
- Antenna matches automatically and Bi-directional switch control
- Sensitivity up to -121 dBm
- Working temperature: -40 ~ +85 °C
Application of Wireless Switch Module SK100
- Remote switch control
- Security system
- Home automation remote sensing
- Wireless remote telemetry
- Pump wireless control
- Access Control System

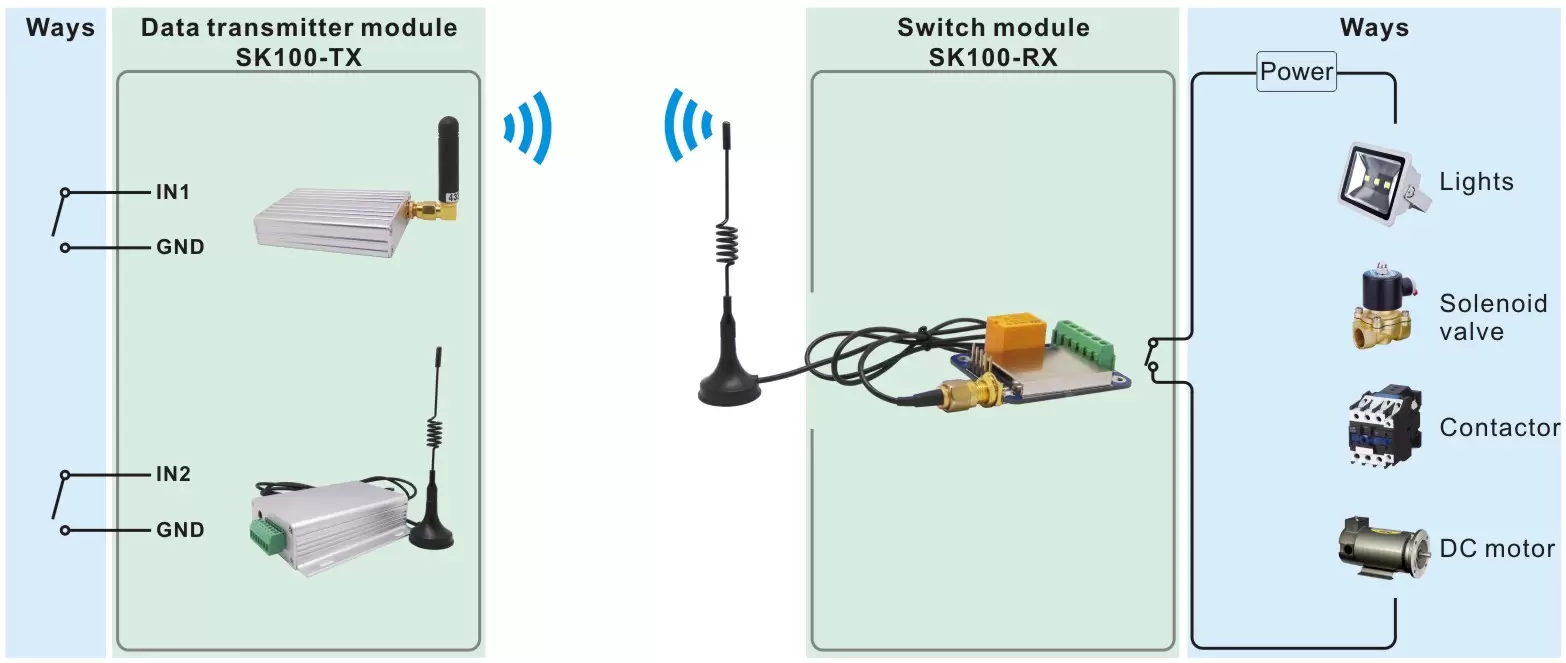

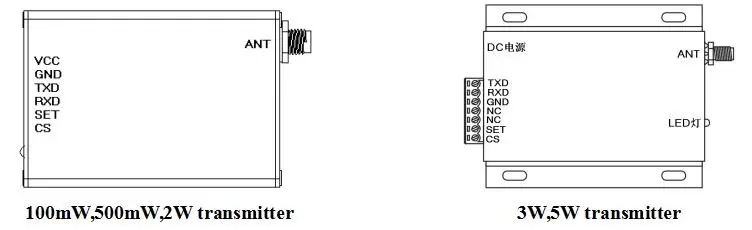

SK100-TX transmitter:
100mW,500mW,2W transmitter
3W,5W transmitter
| NO. | Definition | Description |
| 1 | VCC | Connected to the positive power supply |
| 2 | GND | Connected to ground |
| 3 | TXD | Serial transmit data / Configuration mode |
| 4 | RXD | Serial receive data / Configuration mode |
| 5 | SET | Configuration mode enable（Configurable under low level,default high level） |
| 6 | CS | Module working Enable（Pull Low to make the module enter into sleep mode, Leave open or connect high level make the module enter into normal working mode） |
SK100-RX Receiver:
| NO. | Definition | Description |
| 1 | VCC | Power Positive |
| 2 | GND | Power negative |
| 3~4 | OPEN | Contact of relay open |
| 5~6 | CLOSE | Contact of relay close |
| 7 | VCC | Configuration parameter mode, power supply port |
| 8 | GND | |
| 9 | TXD | Configuration parameter mode, Serial communication port |
| 10 | RXD | |
| 11 | SET | Parameter set pin, low level into the configuration mode |

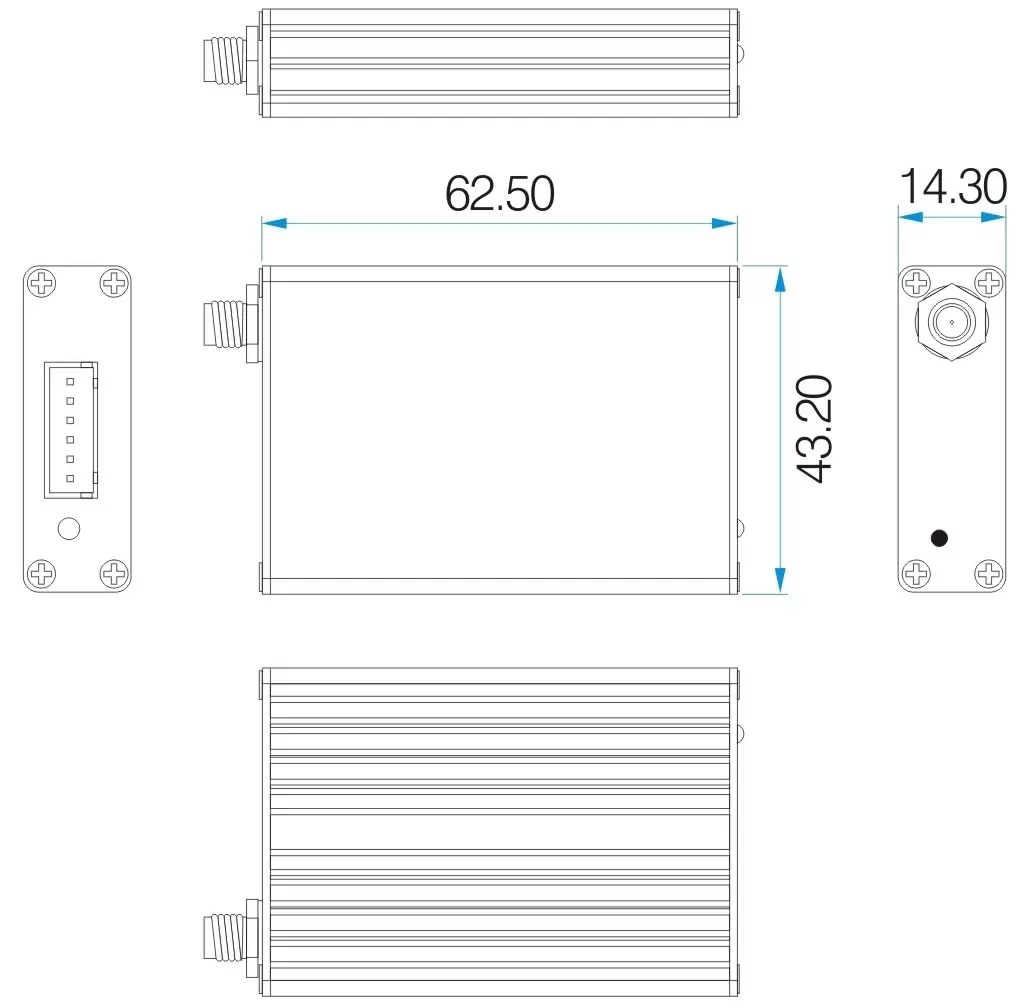

Transmitter (100mW/ 500mW / 2W)

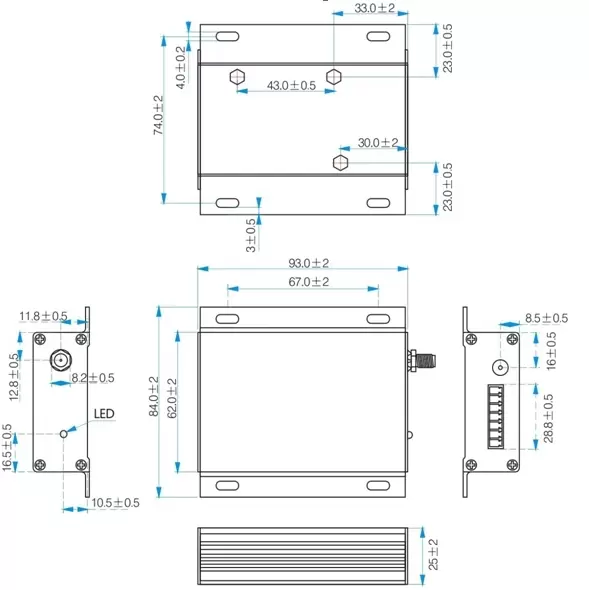

Transmitter (3W / 5W)

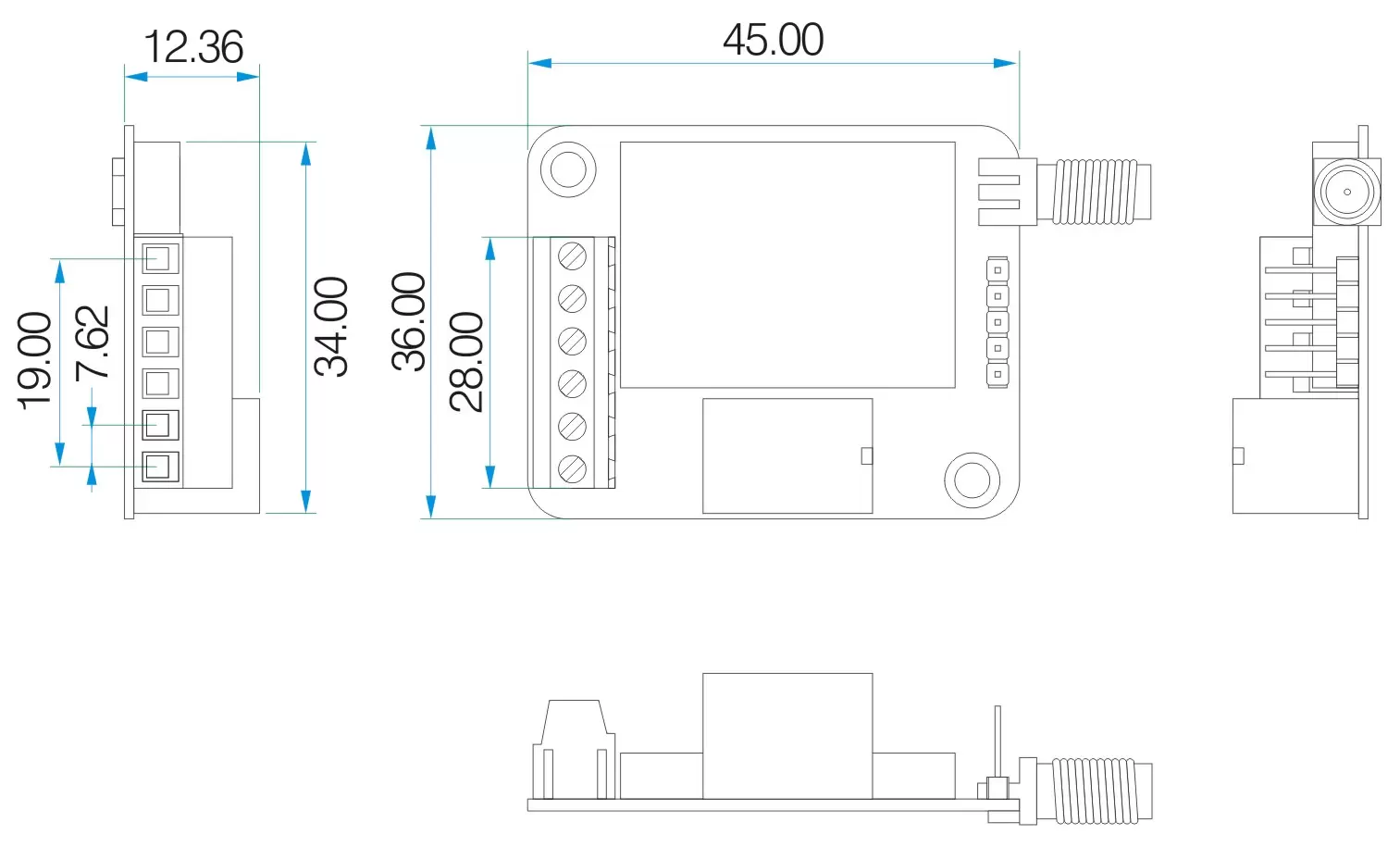

Receiver
