LoRa module Application: Sport Skipping System

This project includes the skipping device and the centralized display terminal. The key part of the skipping rope is embedded in NiceRF's SX1276 LoRa module LoRa1276-C1. When the athlete skips , the data can be transmitted to the performance monitoring receiving system in real time without manual recording.

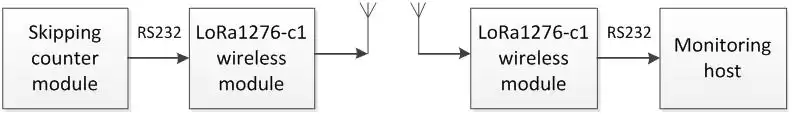

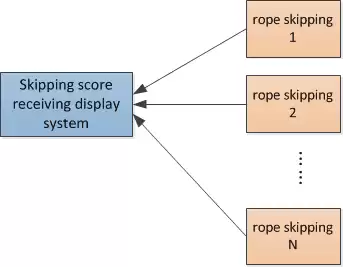

Sport Skipping system block diagram

Software control flow block diagram

Application Description: The skipping counting module sends the data wirelessly through the LoRa module LoRa1276-C1, and is received by the receiving terminal LoRa1276-C1, and then the data is transmitted to the monitoring host for processing.

Main features:

1. Electronic screen real-time display

2. Accurate counting and fast data transmission

3. One-click online, long wireless distance

4. Low power consumption and long use time

Skipping product

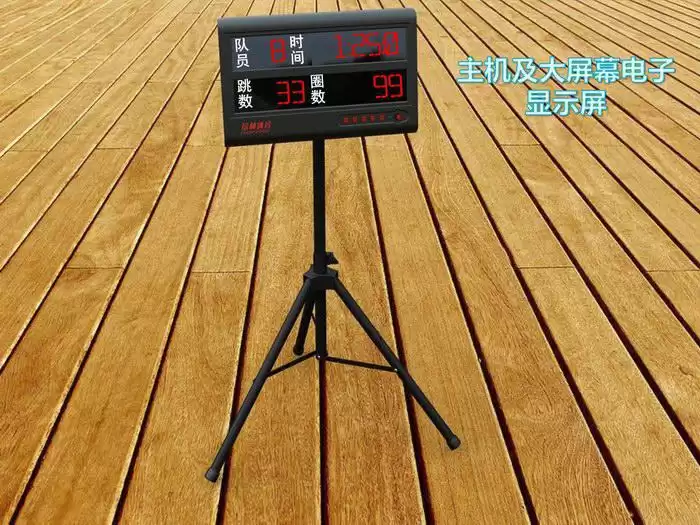

Data Reception Display Device: (Picture from Partner Website)

More information, please contact NiceRF(Email: sales@nicerf.com).
