SW433-XPXM : 433MHz High Gain Small Sucker Antenna
SW433-XPXM, small sucker antenna, designed specially for 433MHz wireless communication, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Sucker Antenna SW433-XPXM
- Frequency Range: 433±10 MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

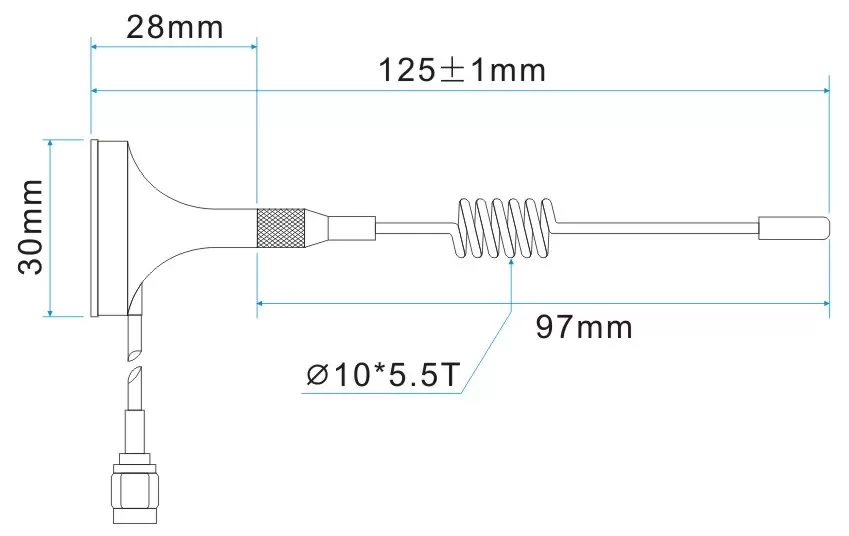

- Height: 126 MM
- Interface form: SMA-J
- Cable length: 1~6m optional Antenna
- Color: black
| Frequency | 433MHz |
| Type | Magnetic |
| Gain | 3dBi |
| Size (mm) | 100~150 |

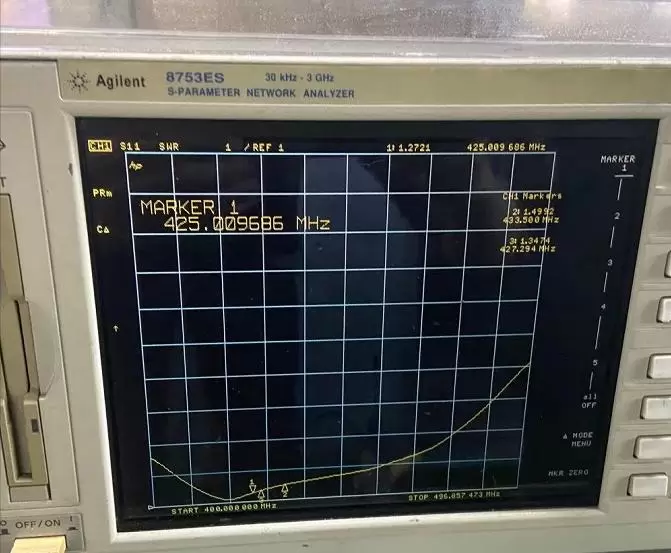

Antennas have been tested under wireless simulated environment by Network Analyzer.
Frequency：434 MHz RL:26.13dB SWR：1.161
