SW433-ZB165 : 433MHz Long Range Straight Rod Antenna
SW433-ZB165, a straight rod antenna for high power, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Rod Antenna SW433-ZB165
- Frequency Range: 433±10 MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

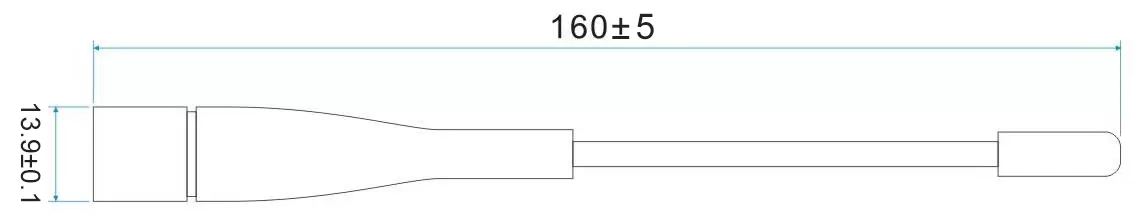

- Height: 160±5 MM
- Interface form: SMA
- Lead wire: none
- Antenna Color: black
- Weight: 20 g
| Frequency | 433MHz |
| Type | Rod |
| Gain | 3dBi |
| Size (mm) | > 150 |

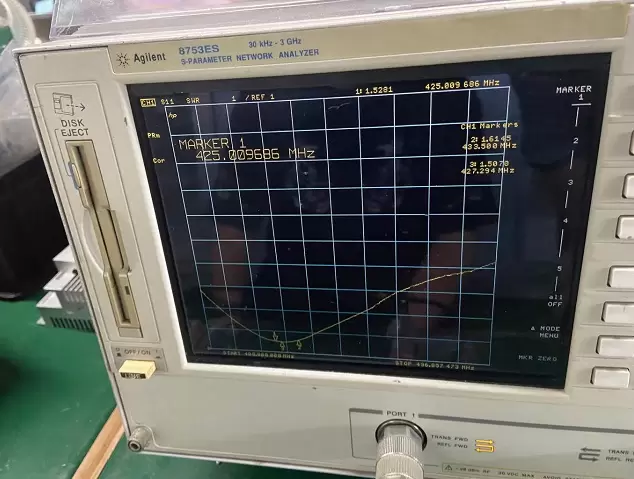

Antennas have been tested under wireless simulated environment by Network Analyzer
Frequency：434 MHz RL:26.13dB SWR：1.161
