SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna
SW150-ZT128DN : 150MHz Straight Rod Antenna

SW150-ZT128DN : 150MHz Straight Rod Antenna

Straight rod antenna SW150-ZT128DN is designed specially for 150MHz wireless communication. It has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter of Rod Antenna SW150-ZT128DN

  • Frequency Range: 150±5 MHz
  • VSWR: ≤ 1.5
  • Gain: 3.0 dBi
  • Input impedance: 50 Ω
  • Max power: 10 W
  • Polarization: vertical polarization
  • Height: 128±2 mm
  • Interface form: SMA
  • Lead wire: none
  • Antenna Color: black
  • Weight: 25 g
  • Holster: biggest diameter Φ 14 mm
Frequency Others
Type Rod
Gain 3dBi
Size (mm) 100~150

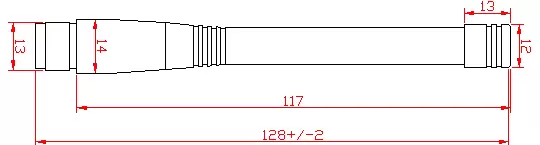

Mechanical sizes of rod antenna SW150-ZT128DN

Antennas have been tested under wireless simulated environment by Network Analyzer.

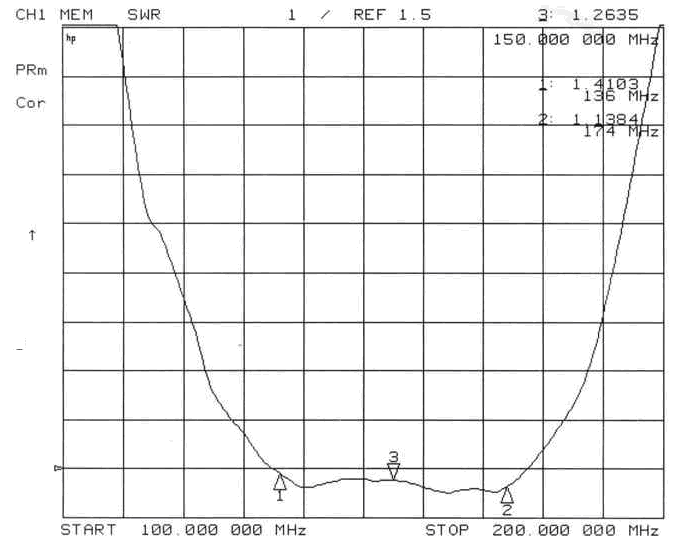

VSWR Charts of rod antenna SW150-ZT128DN
