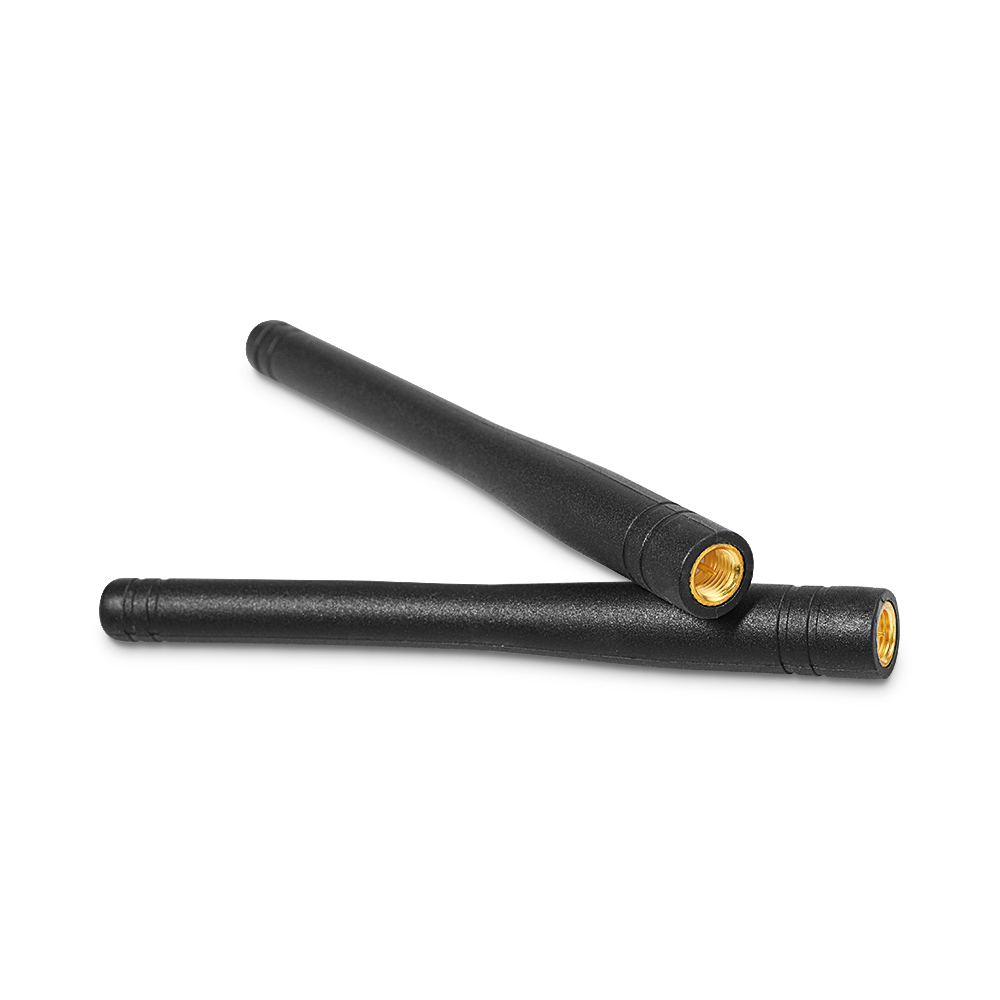

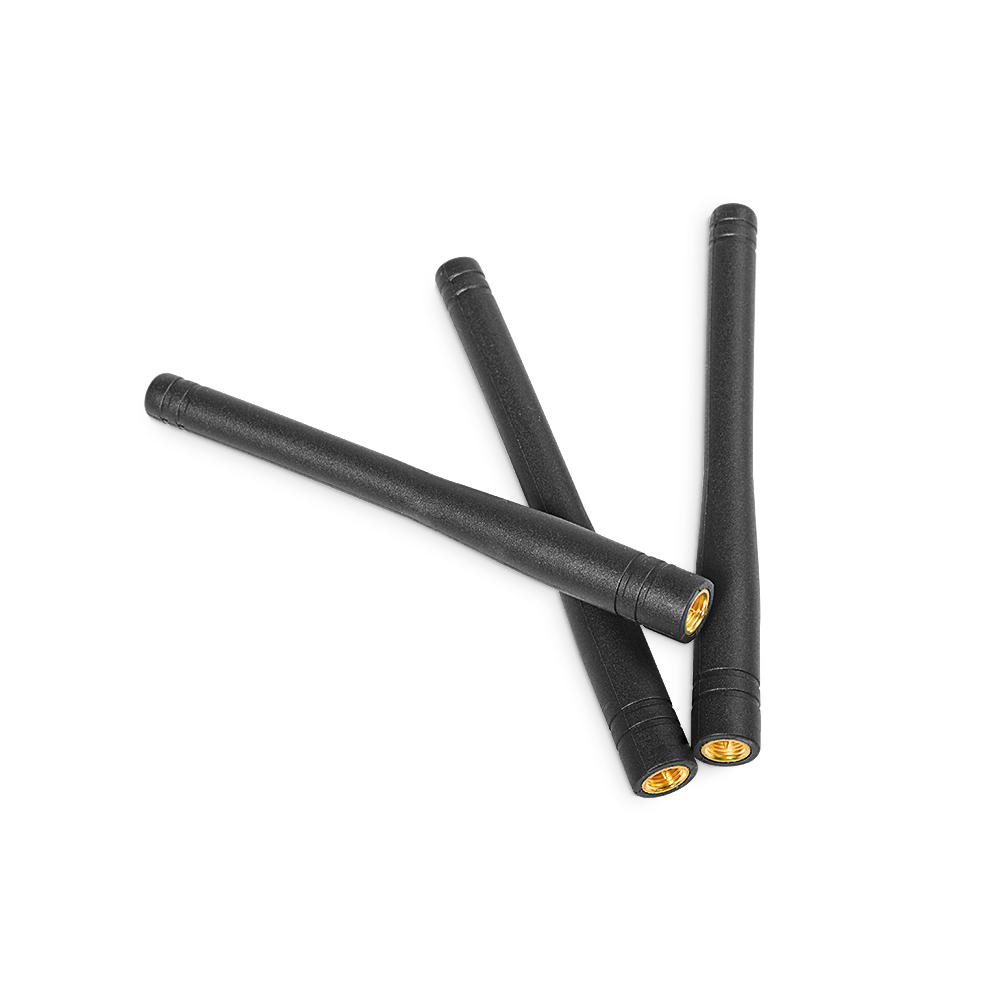

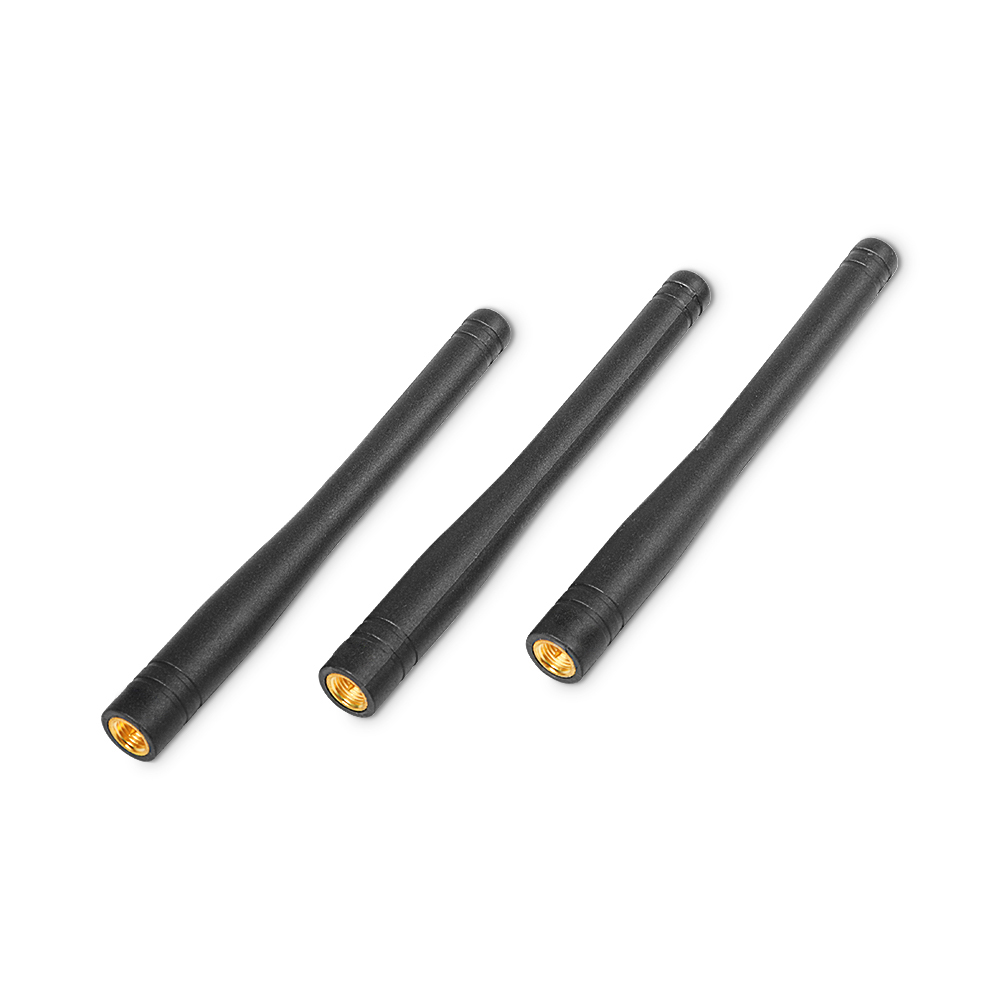

SW520-ZT100 520MHz Gold-Plated Straight Rod Antenna
SW520-ZT100 Gold-Plated Straight Rod Antenna: Compact Design with Excellent VSWR Performance, Ingenious Structure, Easy Installation, Stable Functionality, and Superior Vibration Resistance and Anti-Aging Properties.
Frequency Range: 520±20 MHz
Polarization: Vertical

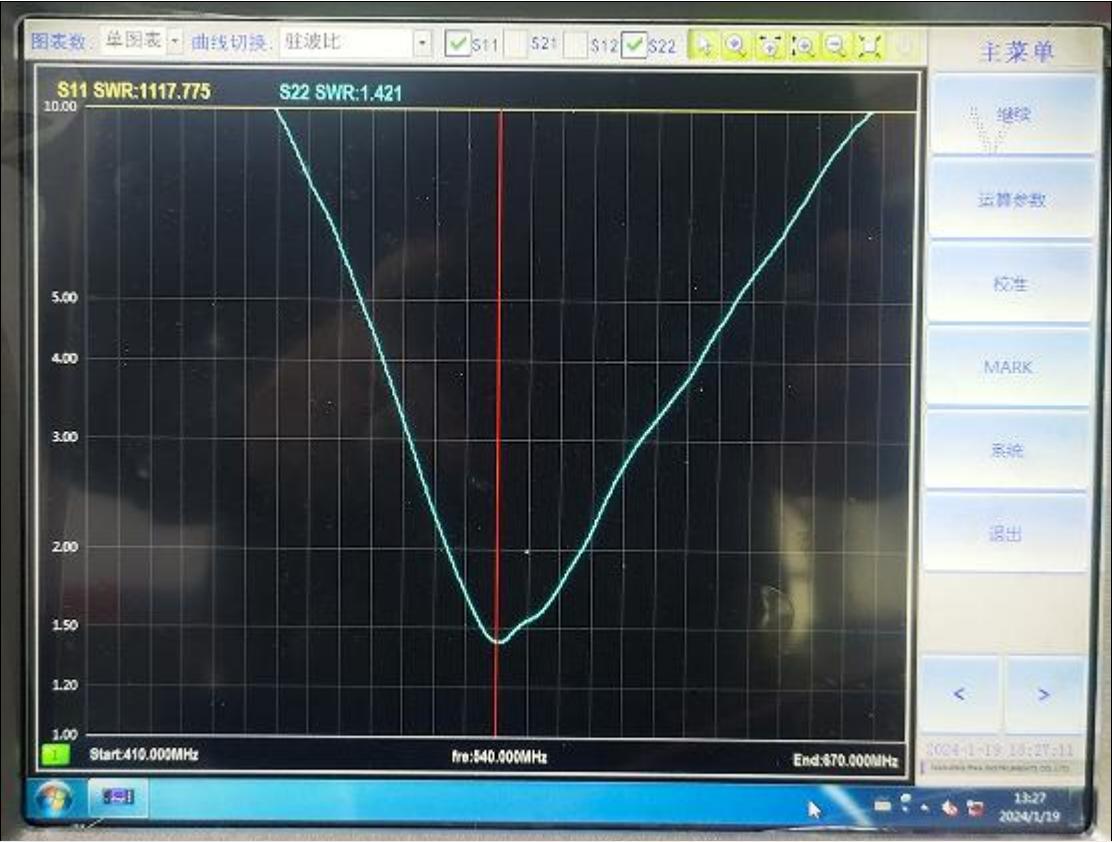

VSWR: ≤ 1.5
Gain: 2.15 dBi
Input impedance: 50 Ω
Power Capacity: 100 W

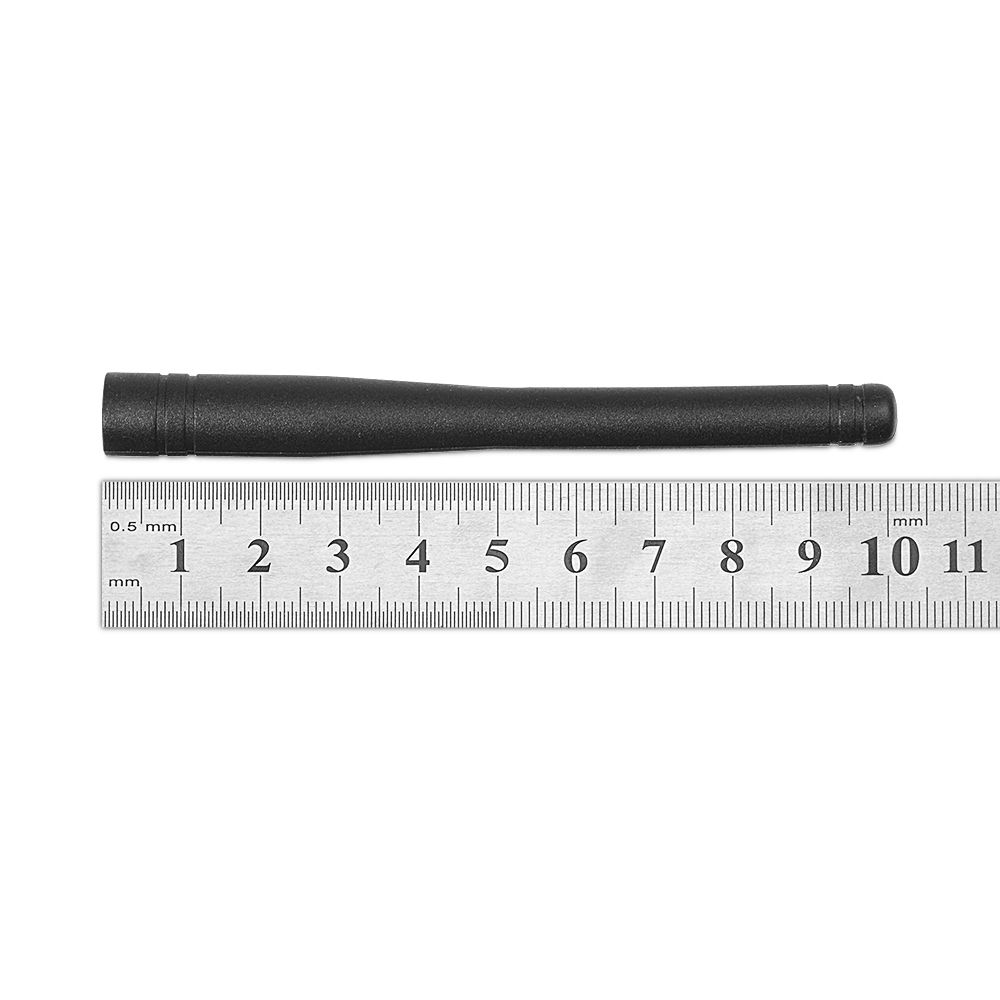

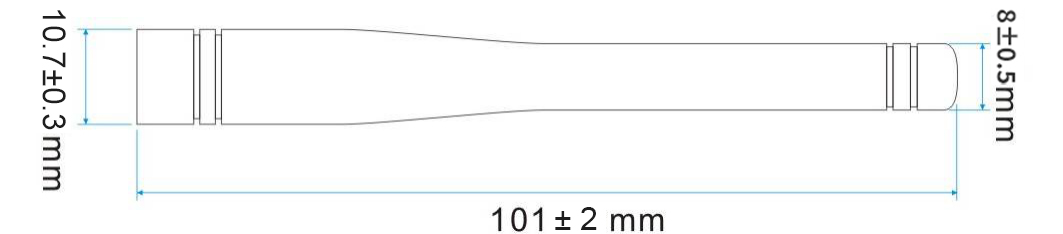

Height: 101±2 mm
Cable: None
Interface form: SMA-J (customizable)
Antenna Color: Black
Weight: 9 g range:－40～＋60 ℃
