SW915-TH06 : 915MHz Copper Spring Antenna
SW915-TH06, a copper spring antenna, is designed specially for 915MHz wireless communication. It has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency Range: 915±10 MHz
- VSWR: ≤ 2.0
- Gain: 2.15 dBi
- Input impedance: 50 Ω
- Max power: 5 W
- Height: 6.1±0.5 mm
- Wire diameter：0.5mm
- Interface form: welding directly
- Antenna Color: copper
- Weight: 1 g
| Frequency | 915MHz |
| Type | Helical |
| Gain | 2.15dBi |
| Size (mm) | < 10 |
| Material & Technology | Copper |

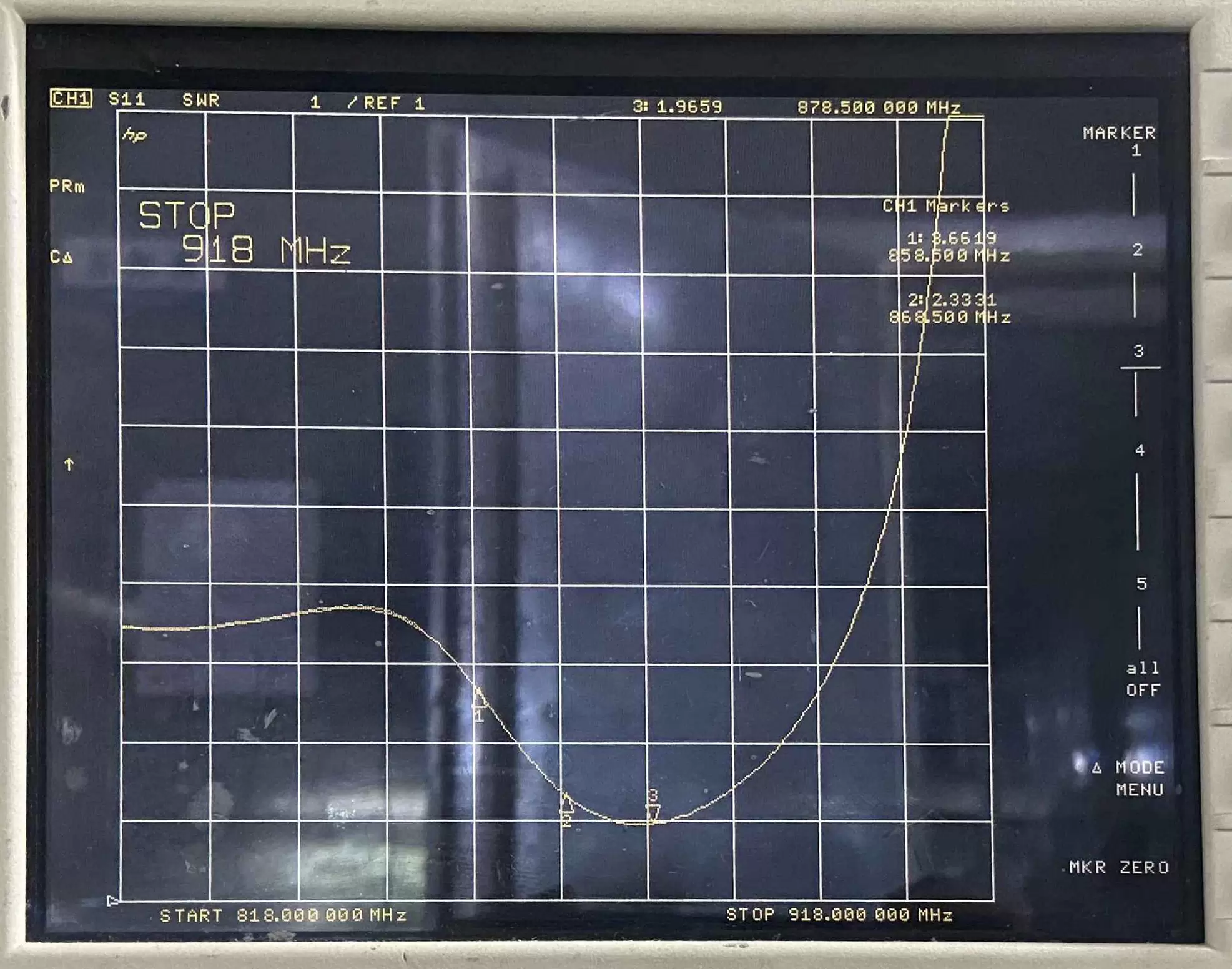

Antennas have been tested under wireless simulated environment by Network Analyzer.
