SW490-WT36 : 490MHz UHF Elbow Rubber Rod Antenna
Type: Rod
Frequency: 470/490 MHz
Gain: 0.5~2.15dBi
Size(mm): <50
Material&Technology: Others
HOME > PRODUCTS > RF ANTENNAS > SW433-WT36 : 433MHZ ELBOW ROD ANTENNA
SW433-WT36 : 433MHz Elbow Rod Antenna
SW433-WT36, an elbow rod antenna, designed specially for 433MHz wireless communication. It has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Rod Antenna SW433-WT36
- Frequency Range: 433±5 MHz

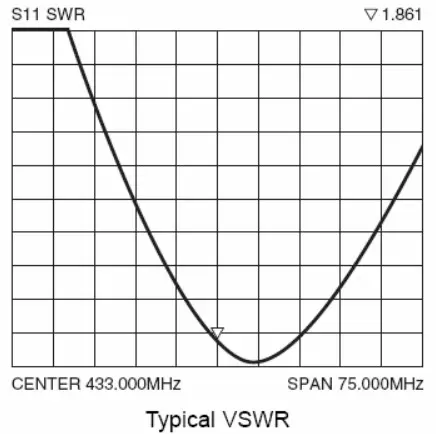

- VSWR: ≤ 1.5
- Gain: 2.5 dBi
- Input impedance: 50 Ω
- Max power: 10 W
- Polarization: vertical polarization

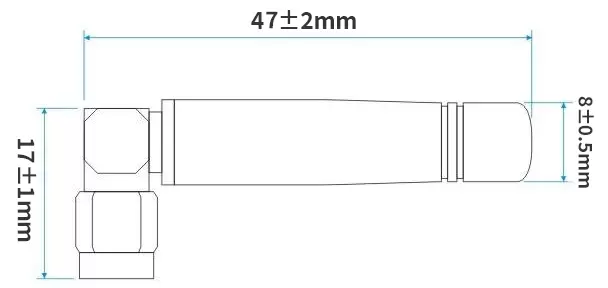

- Height: 47±2 mm
- Interface form: SMA
- Lead wire: none
- Antenna Color: black
- Weight: 7 g
| Frequency | 433MHz |
| Type | Rod |
| Gain | 2.5dBi |
| Size (mm) | < 50 |
Antennas have been tested under wireless simulated environment by Network Analyzer.
