SW433-ZD115 : 433MHz UHF Folding Rod Antenna
Type: Rod
Frequency: 433 MHz
Gain: 0.5~2.15dBi
Size(mm): 100~150
Material&Technology: Others
HOME > PRODUCTS > RF ANTENNAS > SW2400-ZD115 : 2.4GHZ FOLDING ROD ANTENNA
SW2400-ZD115 : 2.4GHz Folding Rod Antenna
SW2400-ZD115 is a folding rod antenna designed specially for 2.4GHz wireless communication, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.
Technical Parameter of Rod Antenna SW2400-ZD115
- Frequency Range: 2400±100MHz
- VSWR: ≤ 1.5
- Gain: 3.0 dBi
- Input impedance:50 Ω
- Max power: 10 W
- Polarization: vertical polarization

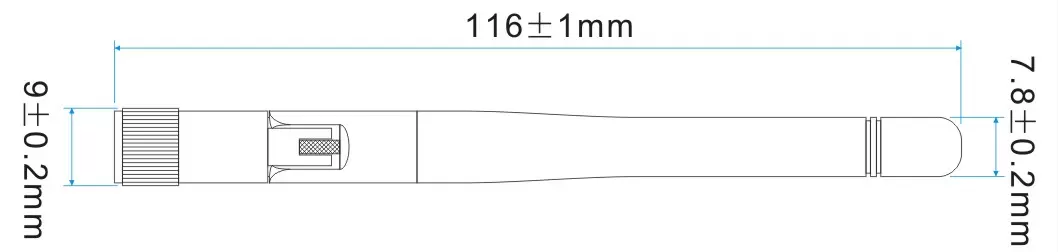

- Height:116±1 mm
- Interface form: SMA
- Lead Wire: none
- Antenna Color: black
- Weight: 12 g
| Frequency | 2.4GHz |
| Type | Rod |
| Gain | 3dBi |
| Size (mm) | 100~150 |
Antennas have been tested under wireless simulated environment by Network Analyzer.
