Large-scale wireless sensor monitoring and alarm system

Advantages of sensor monitoring and alarm system:

1. Ultra-low power consumption

2. Up to 255 nodes with 1 gateway without data collision

3. OTA & Serial firmware upgrade for node and gateway

4. Wake up in the air

5. OTA parameter modification

6. Multiple interfaces such as SPI, I2C, GPIO, etc., with strongexpandability

7. Quickly customize various functions

8. Accurate calculation of battery life

9. Lost Link indicator

10. Time synchronize between node and gateway

11. RTC for gate

12. RTC for node with low power consumption

13. Time synchronize between nodes

14. Multi-sensors and expand easily

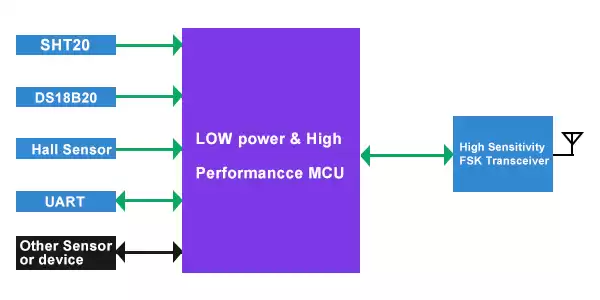

                                                                    (IOT-N010 and IOT-THS010 Block Diagram)

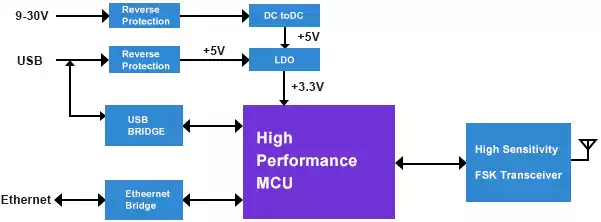

                                                                      (IOT-G010 Block Diagram)

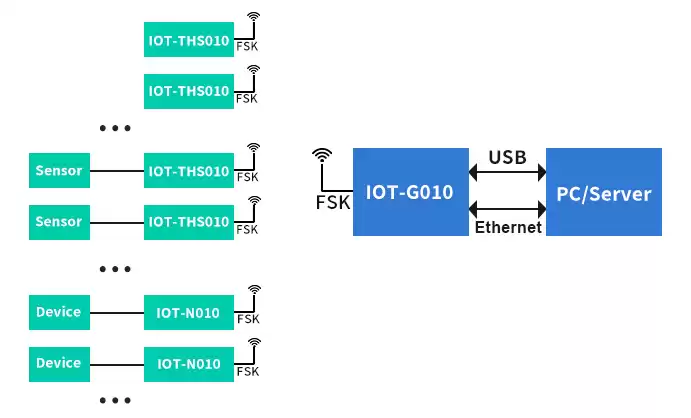

                                                                           (System Block Diagram)
