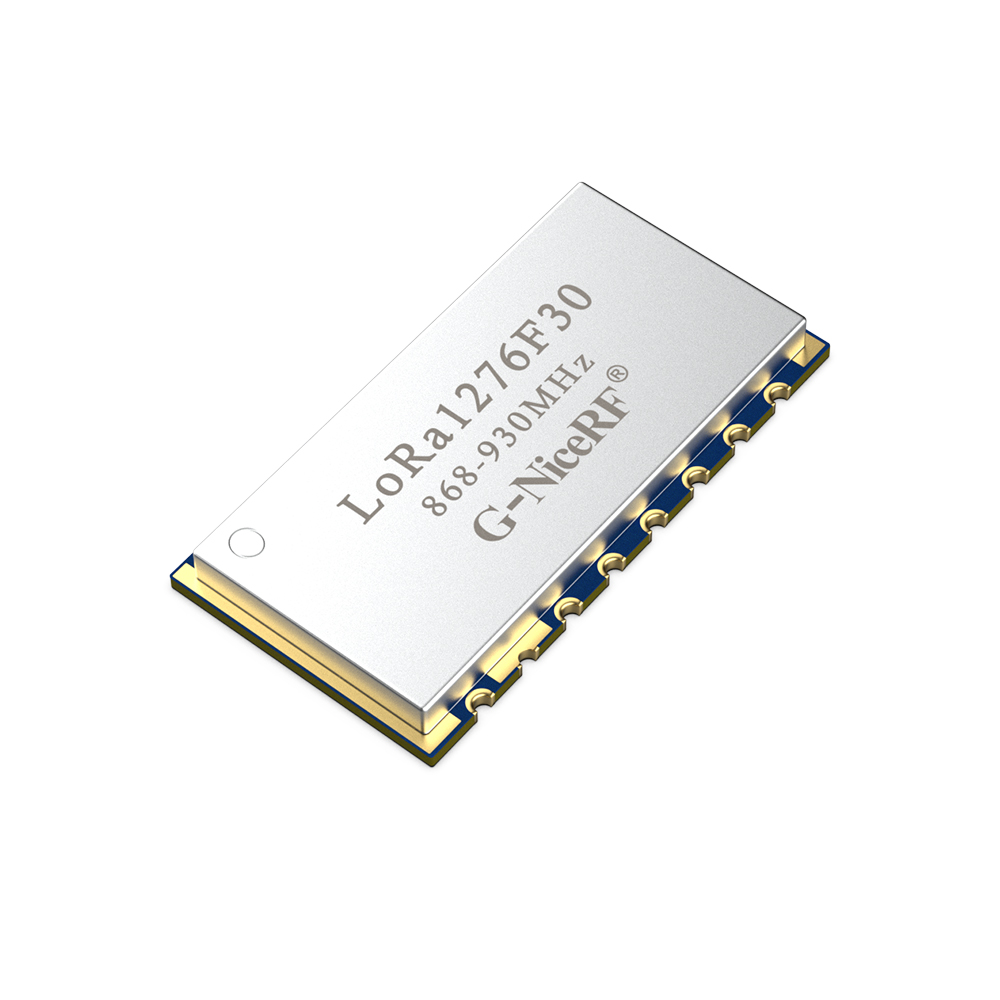

  • LoRa1276F30 is a 500mW high power LoRa module, which integrates Semtech RF transceiver chip SX1276. It adopts LoRa Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance.
  • The LoRa module LoRa1276F30 strictly uses lead-free process for production and testing, and meets RoHS and REACH standards.
Parameter Min. Typ.  Max. Unit Condition
Working Condition
Working voltage range 3 5 6.5 V
Temperature voltage -40   85
Current Consumption
RX current   < 13   mA @5V
TX current   400 450 mA @27dBm@868 MHz
Sleep current   < 10   uA
RF Parameter
Frequency range 848 868 888 MHz @868MHz
900 915 940 MHz @915MHz
Data rate 1.2   300 Kbps FSK
0.018   17.353 Kbps LoRa
Output power 21   27 dBm
Receiving sensitivity   -122   dBm @FSK data=1.2 Kbps  Fdev=50 KHz
  -139   dBm @LoRa BW=62.5 KHz  SF = 12 CR=4/5
Interface SPI
Chip SX1276
Frequency 868MHz,915MHz
Modulation LoRa
Output Power 500mW

Features of LoRa Module LoRa1276F30

  • Frequency Range: 868/915MHz
  • Sensitivity up to -139 dBm
  • Maximum output power: 27dBm
  • 13mA@receiver mode
  • Sleep current <10uA
  • Data transfer rate:@FSK,1.2-300kbps @LoRa,0.018-37.5kbps
  • LoRa ,MSK,GFSK Modulation mode
  • 127 dB Dynamic Range RSSI
  • Packet engine up to 256 bytes with FiFo and CRC
  • Hopping frequency
  • Operating Temperature Range:-40 ~ + 85 °C
  • Built-in temperature sensor and low battery indicator
  • 3.0-6.5 V Power supply
  • Excellent blocking immunity

Applications of LoRa Module LoRa1276F30

  • Remote control
  • Remote meter reading
  • Home security alarm and remote keyless entry
  • Industrial control
  • Home automation remote sensing
  • Individual data records
  • Toys control
  • Sensor network
  • Tire pressure monitoring
  • Health monitoring
  • Wireless PC peripherals
  • Tag reading and writing

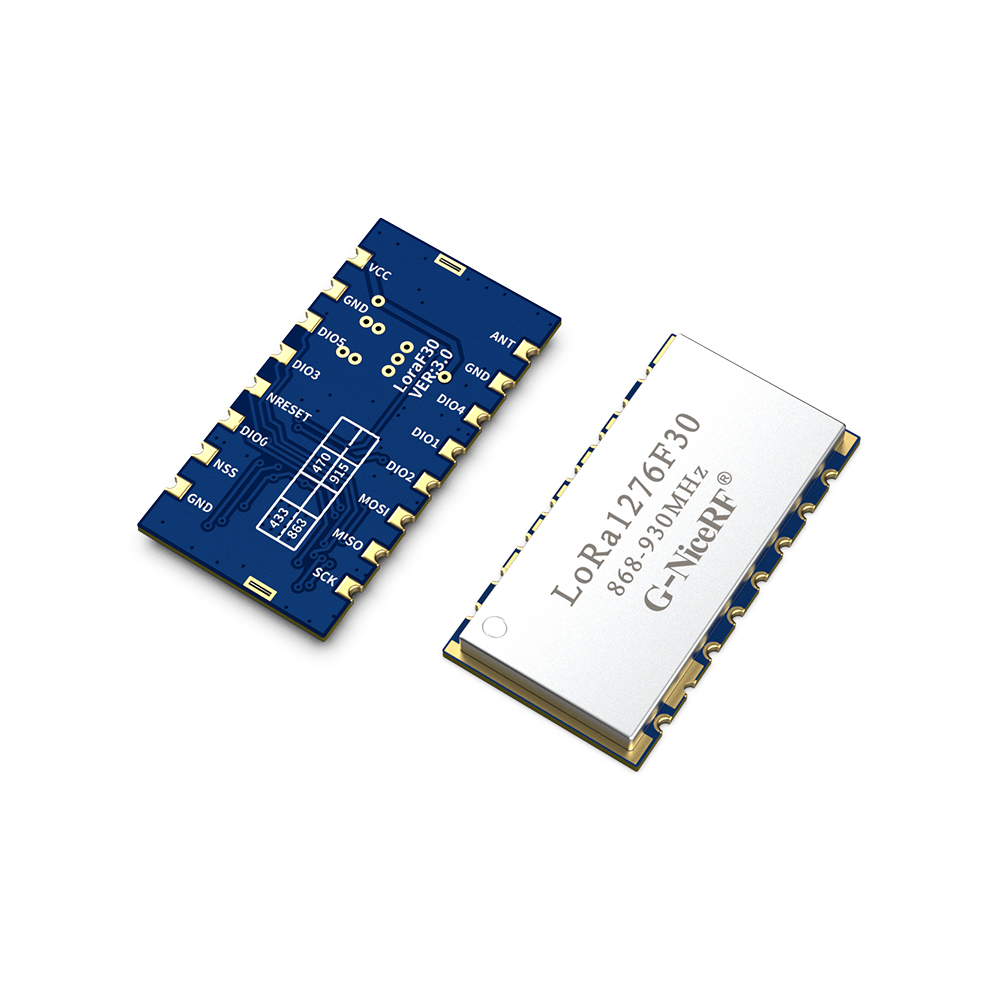

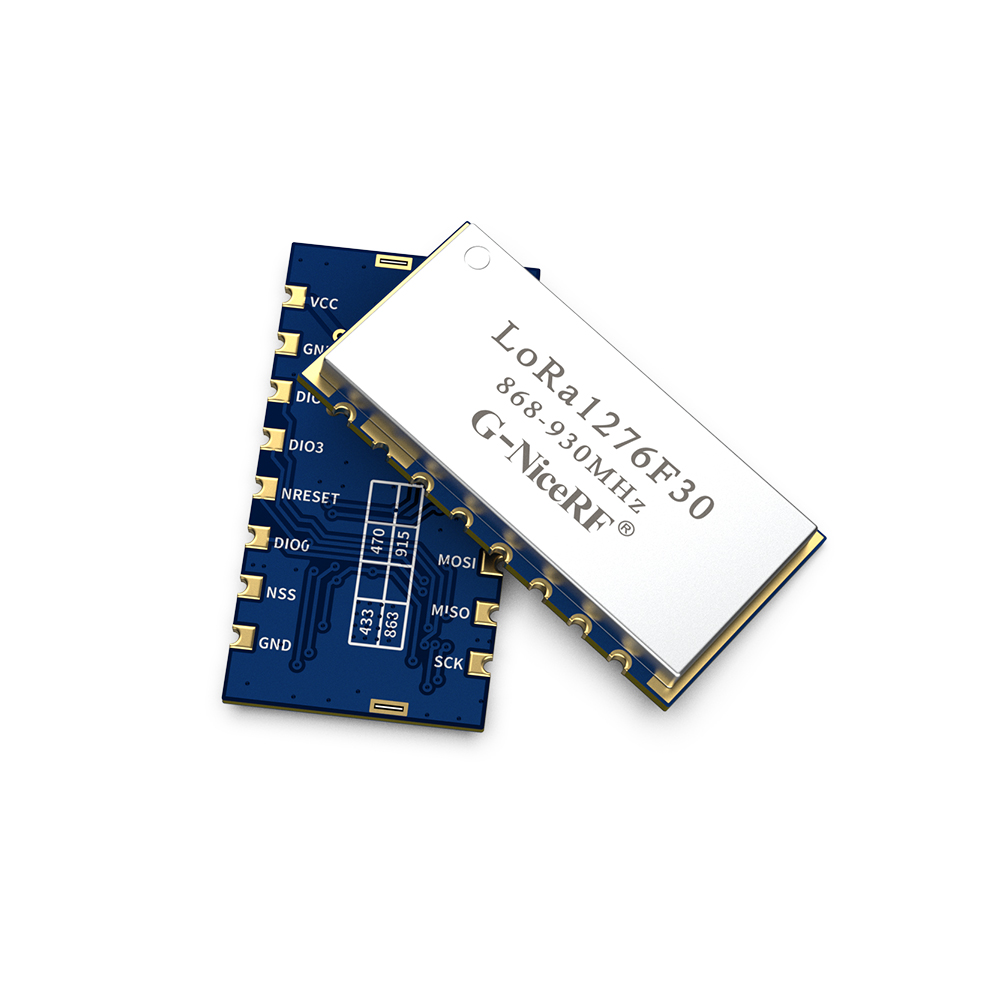

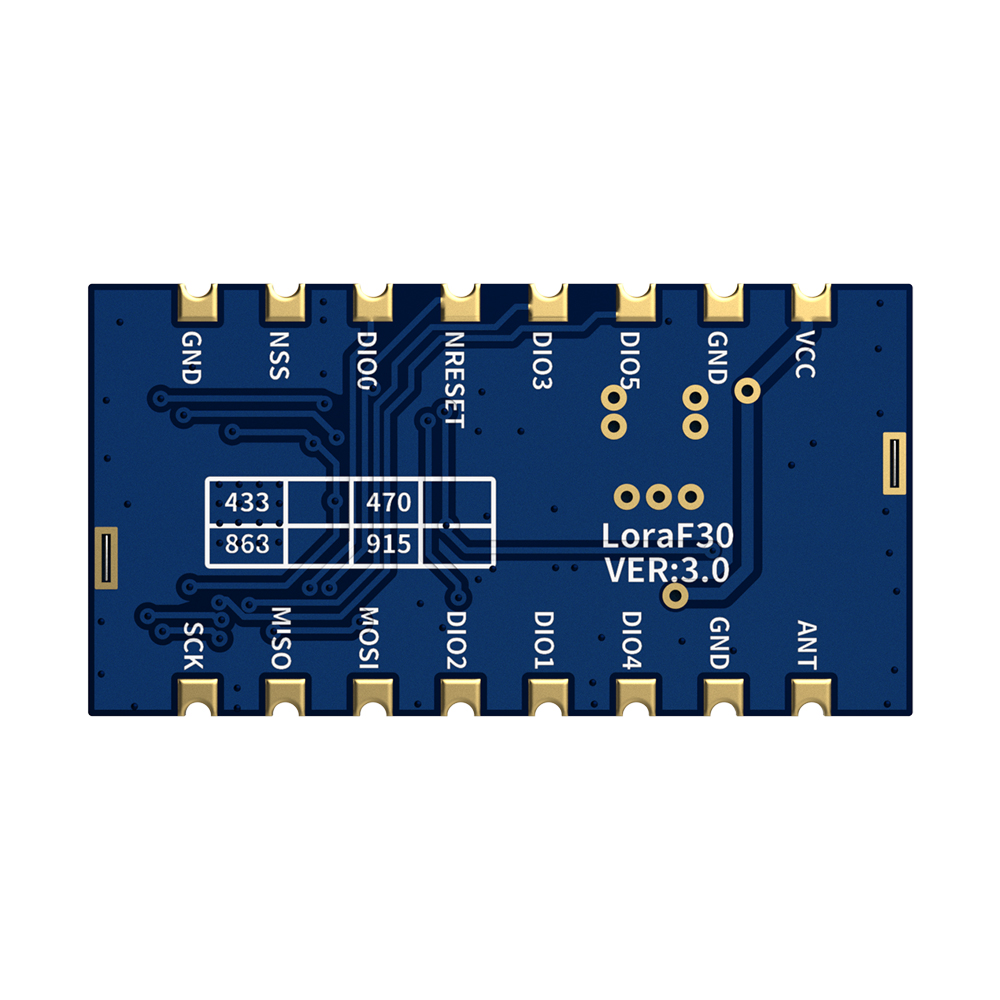

Pin NO.Pin nameDescription
1VCCConnected power supply
2GNDpower ground
3DIO5Digital I/O
4DOI3Digital I/O
5NRESETReset input
6DIO0Digital I/O
7NSSSPI enable
8GNDpower ground
9SCKSerial clock for SPI interface
10MISOSPI Output for SPI data
11MOSISPI Input for SPI data
12DIO2Digital I/O
13DIO1Digital I/O
14DIO4Digital I/O
15ANT GNDAntenna ground
16ANTConnect with 50 ohm coaxial antenna

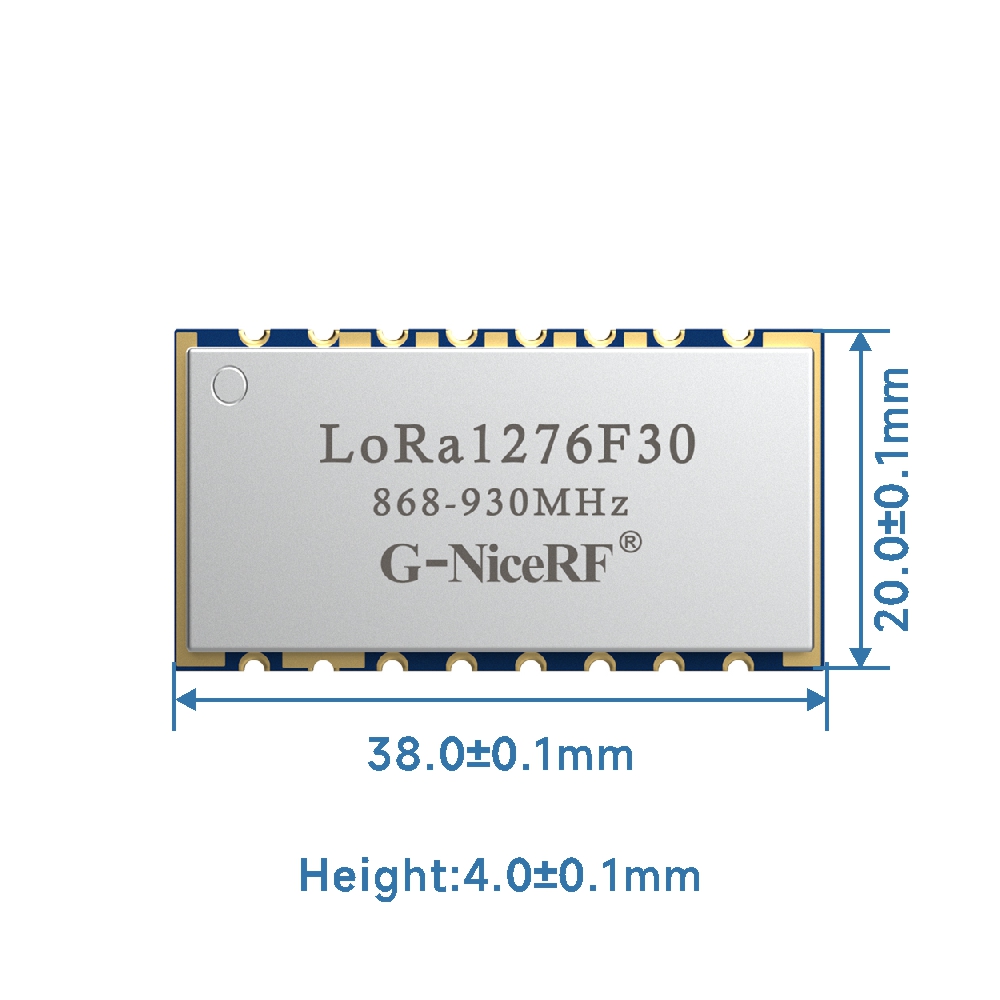

Mechanical dimensions of LoRa Module LoRa1276F30
