RF2401Pro : nRF24L01+ FCC ID & IC ID Certified 2.4GHz With Original Nordic

RF2401Pro is a high integrated 2.4 GHz transmitter and receiver module, which adopts Nordic’s RF chip nRF24L01+.
RF2401Pro uses lead-free process for production and testing strictly and has obtained many certifications such as FCC ID, IC ID and ROHS.
This module has obtained FCC ID and IC ID certifications, FCC ID is 2AD66-RF2401PRO.

Download

Parameter	Min.	Type.	Max.	Unit	Conditions
Operation Conditions
Operating voltage range	1.9	3.3	3.6	V
Operating temperature range	-40		85	℃
Current Consumption
RX Current		< 14		mA
TX Current		12		mA	@0dBm
Sleep Current		<1		uA
RF Parameters
Frequency range	2400		2480	MHz
Data rate	250		2000	Kbps	GFSK
Maximum output power		0		dBm
RX sensitivity		-94		dBm	@data=250kbps

Features of 2.4 GHz transmitter and receiver module RF2401Pro

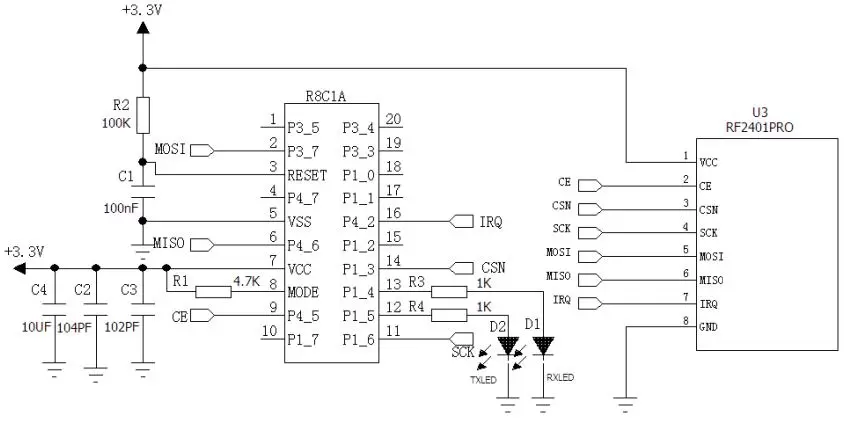

Typical application circuit of 2.4 GHz Transmitter And Receiver Module RF2401Pro Using nRF24L01+ chip

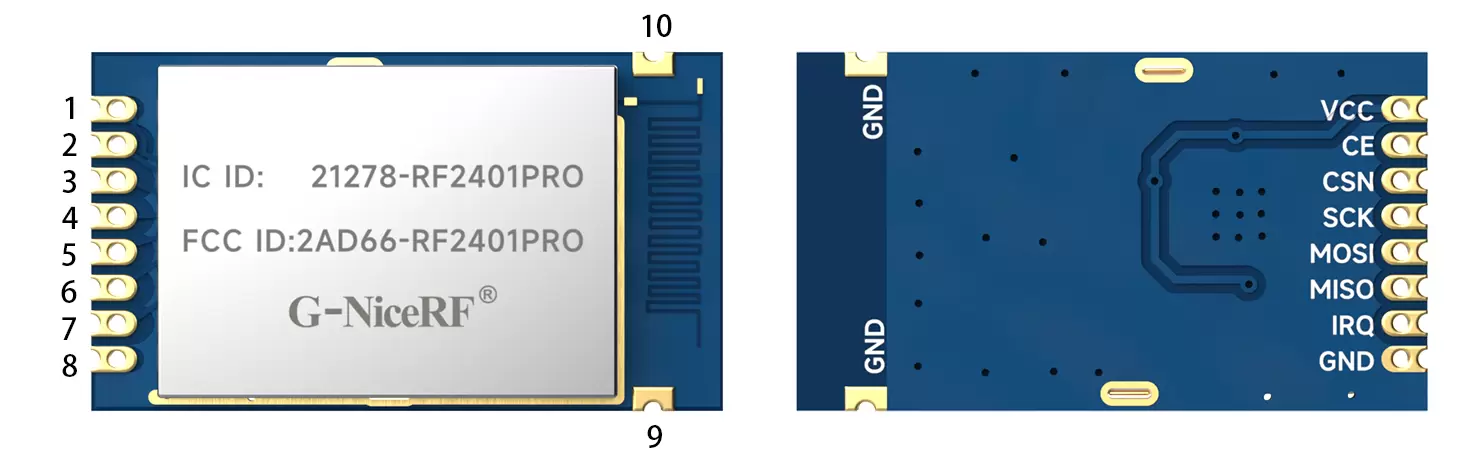

Pins of 2.4 GHz Transmitter And Receiver Module RF2401Pro Using nRF24L01+ chip

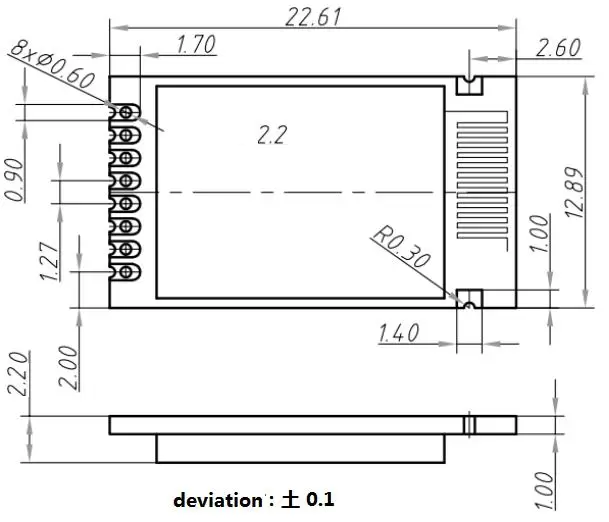

Mechanical sizes of 2.4 GHz Transmitter And Receiver Module RF2401Pro Using nRF24L01+ chip
