STX883Pro : 433MHz High Power CE-RED & FCC ID Certified ASK Transmitter Module

STX883Pro : 433MHz High Power CE-RED & FCC ID Certified ASK Transmitter Module

STX883Pro : 433MHz High Power CE-RED & FCC ID Certified ASK Transmitter Module

STX883Pro : 433MHz High Power CE-RED & FCC ID Certified ASK Transmitter Module

STX883Pro : 433MHz High Power CE-RED & FCC ID Certified ASK Transmitter Module

STX883Pro : 433MHz High Power CE-RED & FCC ID Certified ASK Transmitter Module

STX883Pro : 433MHz High Power CE-RED & FCC ID Certified ASK Transmitter Module

STX883Pro : 433MHz High Power CE-RED & FCC ID Certified ASK Transmitter Module

STX883Pro : 433MHz High Power CE-RED & FCC ID Certified ASK Transmitter Module

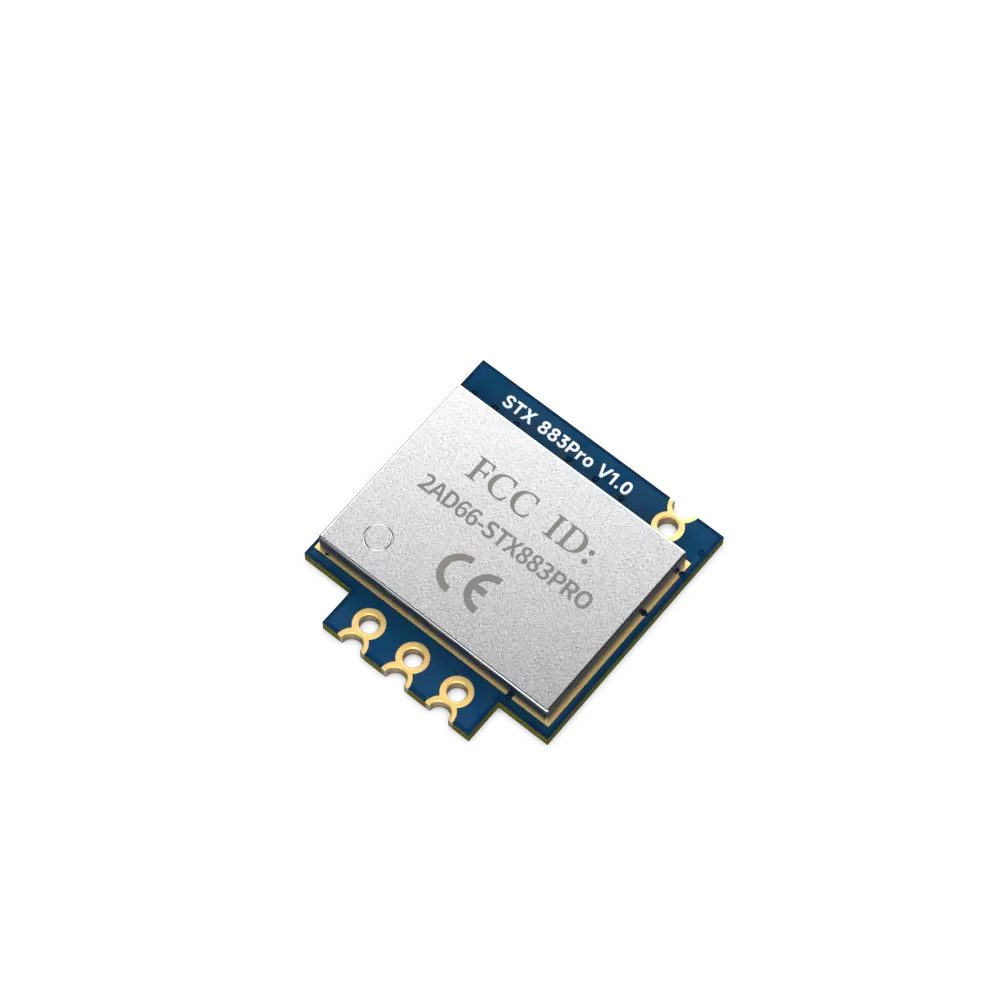

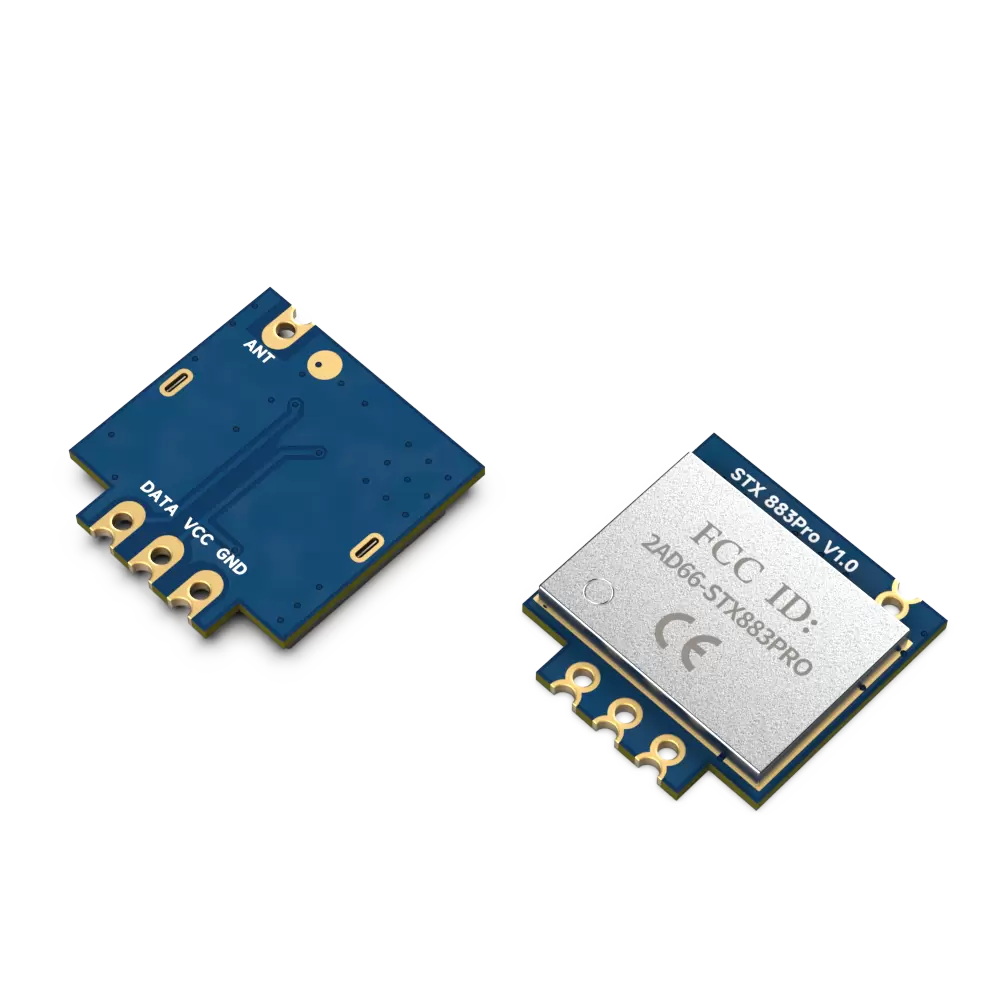

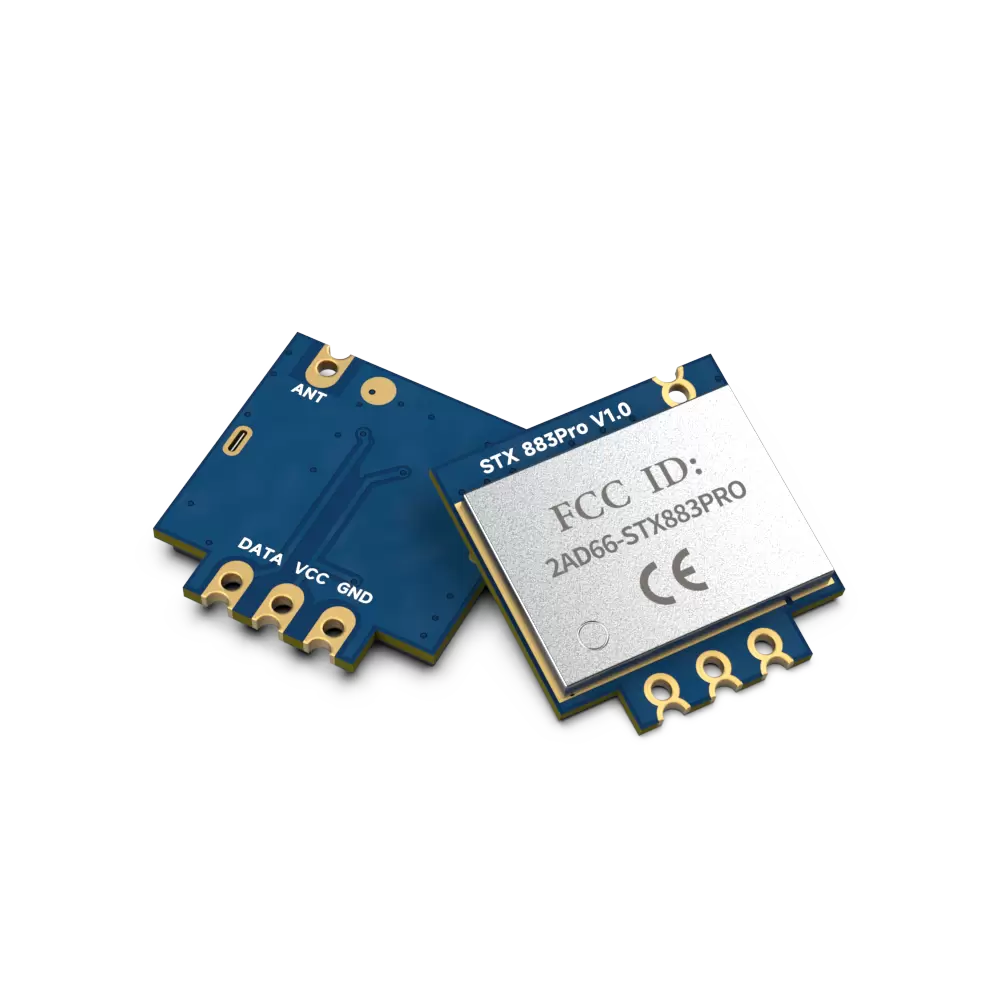

STX883Pro is a ultra-thin small size, low-harmonic 433MHz ASK transmitter module that can be certified with FCC ID/CE-RED/IC ID etc. It adopts a chip design, which greatly improves the stability of the product. The data port of the module can be directly connected to the microcomputer, so that the development of wireless products is more convenient and faster.
The STX883Pro ASK transmitter module has obtained CE-RED and FCC ID certifications.

Contact us

DOWNLOAD

Parameter	Min.	Typ.	Max.	Unit	Condition
Operation Conditions
Working voltage range	1.2	3.0	5	V
Temperature voltage	-20	25	70	℃
Current Consumption
TX current		<20		mA	@3.3V,10dBm
Sleep current		≤0.01		uA	When @DATA is low
RF Parameter
Frequency range	433.82	433.92	434.02	MHz	@433MHz
Transmit power		10		dBm	@3.3V
Data rate	0.1		5	Kbps

Modulation	ASK
Frequency	433MHz
Certification	FCC IC, CE-RED

Features of 433MHz ASK Transmitter STX883Pro

Frequency range: 433MHz
ASK modulation mode
Long range
Stable and reliable frequency
FCC/ CE/ICID certification

Applications of 433MHz ASK Transmitter STX883Pro

Remote control door
Wireless security alarm
Wireless consumer products
Wireless data transmission

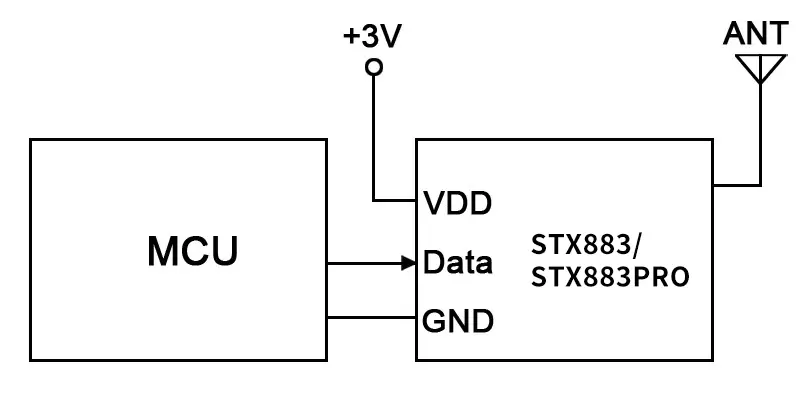

Typical application circuit

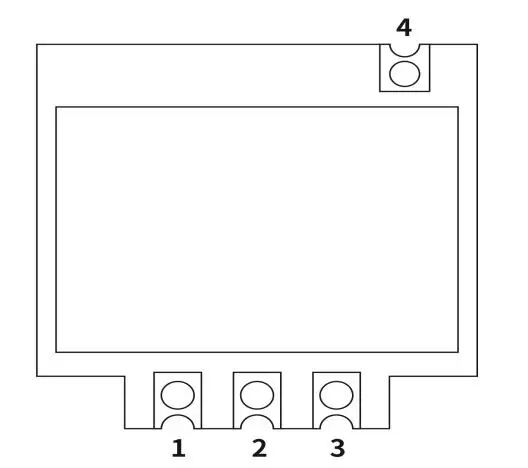

Pins of 433mhz ask transmitter module STX883Pro

PIN DEFINITION

Pin NO.	Pin name	Description
1	GND	Power ground
2	VCC	Connect the power supply positive
3	DATA	Data input
4	ANT	Antenna input

MECHANICAL DIMENSIONS
