LoRaP30Pro : 30W 433MHz Serial Port Digital Transmission RF Modem, Extended Range With ESD Protection
- LoRaP30Pro is rf modem and designed for 30W output power and is available in TTL/RS232/RS485 levels. It is widely used in wireless remote transmission control.
- The advantages of this digital radio station are wide voltage 9-30V, ultra-long distance, dual antennas, high-end appearance.
- It has built-in hardware anti-crash self-reset circuit to resist strong external interference signals. Built-in overcurrent and overvoltage reverse connection protection circuit.
- LoRaP30Pro strictly uses lead-free process for production and testing, and meets RoHS and Reach standard.
| Parameters | Min. | Typ. | Max. | Unit | Condition |
| Working Condition | |||||
| Voltage range | 12 | 24 | 30 | V | |
| Operating Temperature | -40 | 25 | +85 | ℃ | |
| Current Consumption | |||||
| Rx current | < 23 | mA | @24V | ||
| Tx current | < 4 | A | @ 45dBm, 24V | ||
| RF Parameters | |||||
| Frequency range | 414.92 | 433.92 | 453.92 | MHz | @433MHz |
| Data rate | 91 | 656 | 17353 | bps | @LoRa |
| Output power | 30 | / | + 45 | dBm | |
| Sensitivity | -139 | dBm | @91bps | ||
| Interface | TTL,RS232,RS485 |
| Network | MESH |
| Frequency | 433MHz |
| Modulation | LoRa |
| Output Power | 30W |
Features of RF Modem LoRaP30Pro
- AES128 data encryption
- No blind zone and distance limitation
- LBT（Listen Before Talk）Features
- Diversified serial port parameters
- Operating voltage range: 12~ 30V
- Hop level in MESH mode
- CRC encryption optional
- Up to 40 communication channels in the same frequency band
- LoRamodulation mode, MESH self-organizing network mode
- Built-in hardware reset protection circuit
- TTL/RS232/RS485Level
- Sensitivity up to -139 dBm
- Maximum output power>30W（+45dBm）
- Working temperature：-40 ~ +85 °C
Applications of RF Modem LoRaP30Pro
- Remote control
- Remote meter reading
- Industrial data collection
- Home automation telemetry
- Wireless data communication
- Access control system

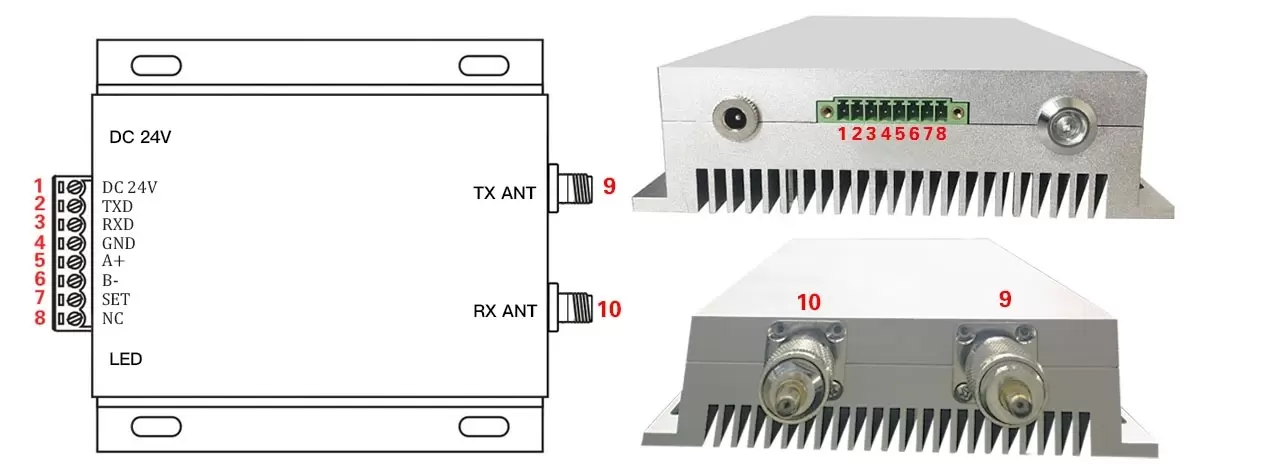

| Pin No. | Definition | Description |
| 1 | VCC | Connected to the positive power supply (typical 24V) |

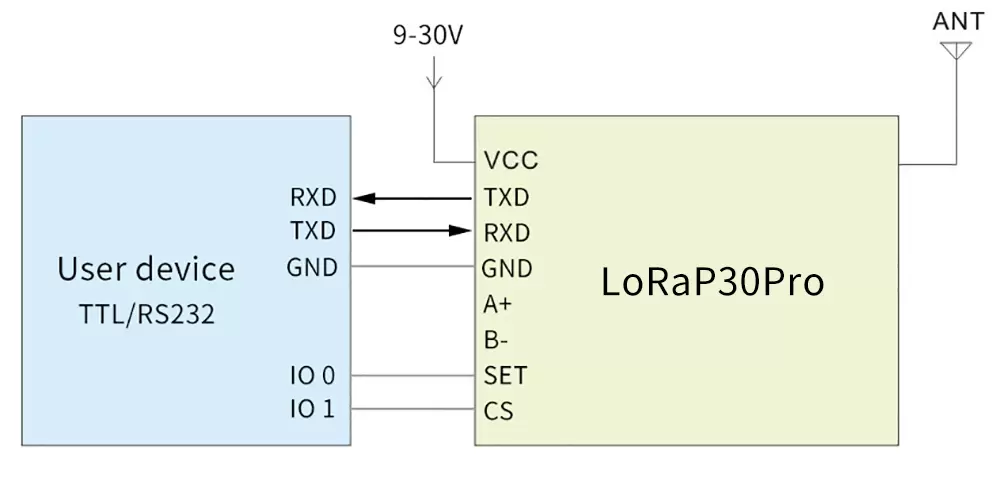

| 2 | TXD | Serial data receiving pin of the product (@ interface is TTL/RS232 level) |
| 3 | RXD | Serial data receiving pin of the product (@ interface is TTL/RS232 level) |
| 4 | GND | Connected to ground |

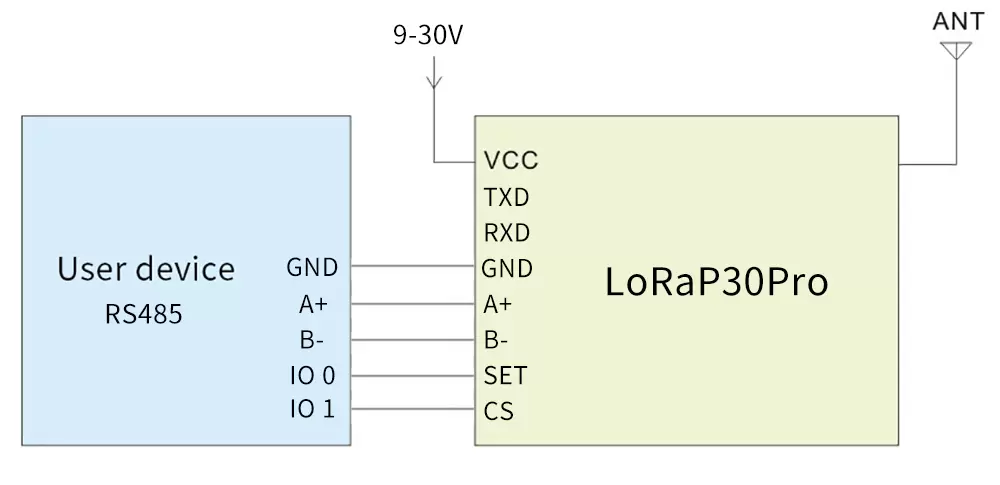

| 5 | A+ | 485 interface A+ of the connected device (@ module interface is 485 level) |
| 6 | B- | 485 interface B- of the connected device (@ module interface is 485 level) |
| 7 | SET | Configuration parameter enable (set low to enable parameter configuration, default high level output) |
| 8 | CS | Module enable (low sleep, default high output) |
| 9 | TX ANT | Transmitting antenna interface |
| 10 | RX ANT | Receiving antenna interface |
