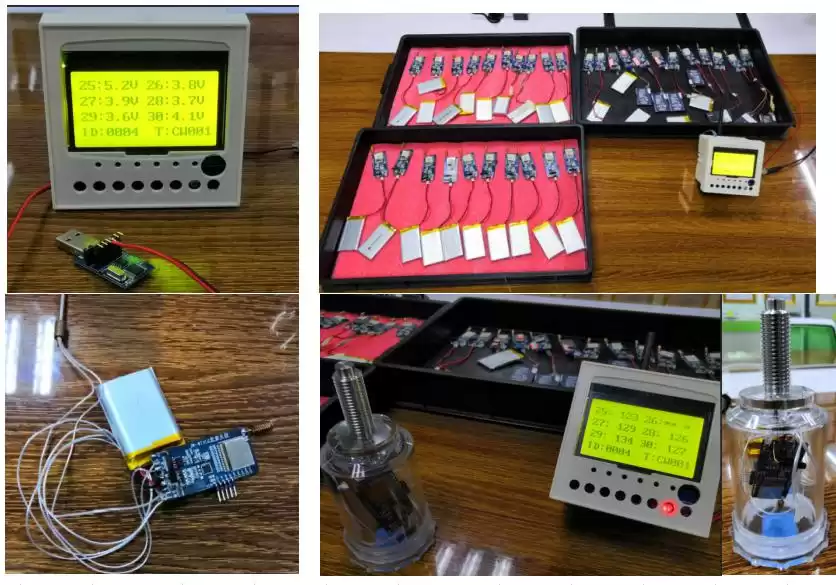

Sensor Monitoring System: Multi-point data acquisition RF Application

The Sensor Monitoring System include: Node, Gateway, PC software.

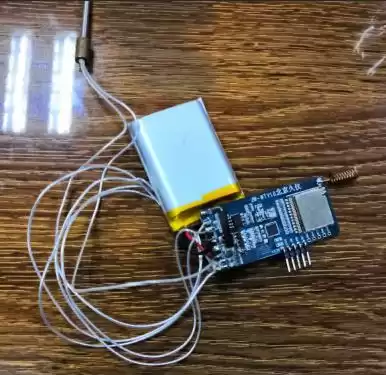

Feature of Node:

1. Temperature measuring ( 0～500c degree), resolution 0.1c degree ( 0～100c degree),1c degree ( 100～500c degree)

2. Upload the status wireless at variable time interval

3. Low power consumption ( 5 year/1000mA )

4. Reset wirelessly

5. Alarm for lost link

6. Alarm for abnormal temperature value

7. Configurable time upload interval

8. Parameters setting wirelessly

9. Reliable algorithm to avoid confliction when communicate wirelessly

10. Transmission distance: More than 1.2km in open aera

11. Frequency: 868MHz

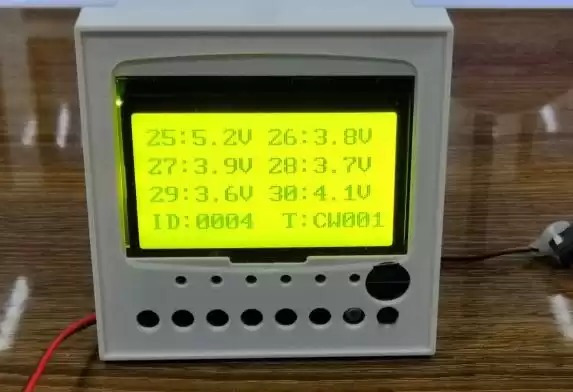

Feature of Gateway

1. LCD display, page turning automatically or manually

2. RS485 interface

3. Frequency: 868MHz

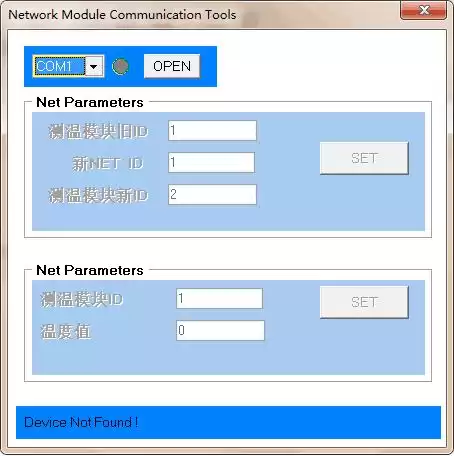

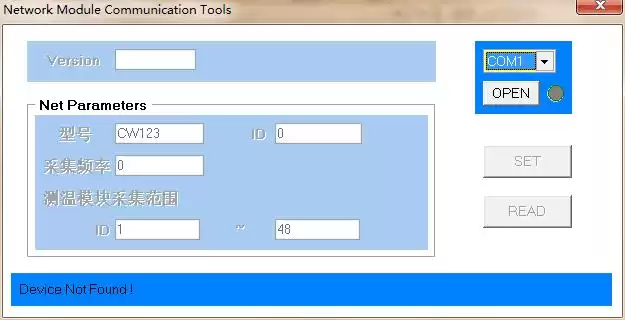

PC Software
