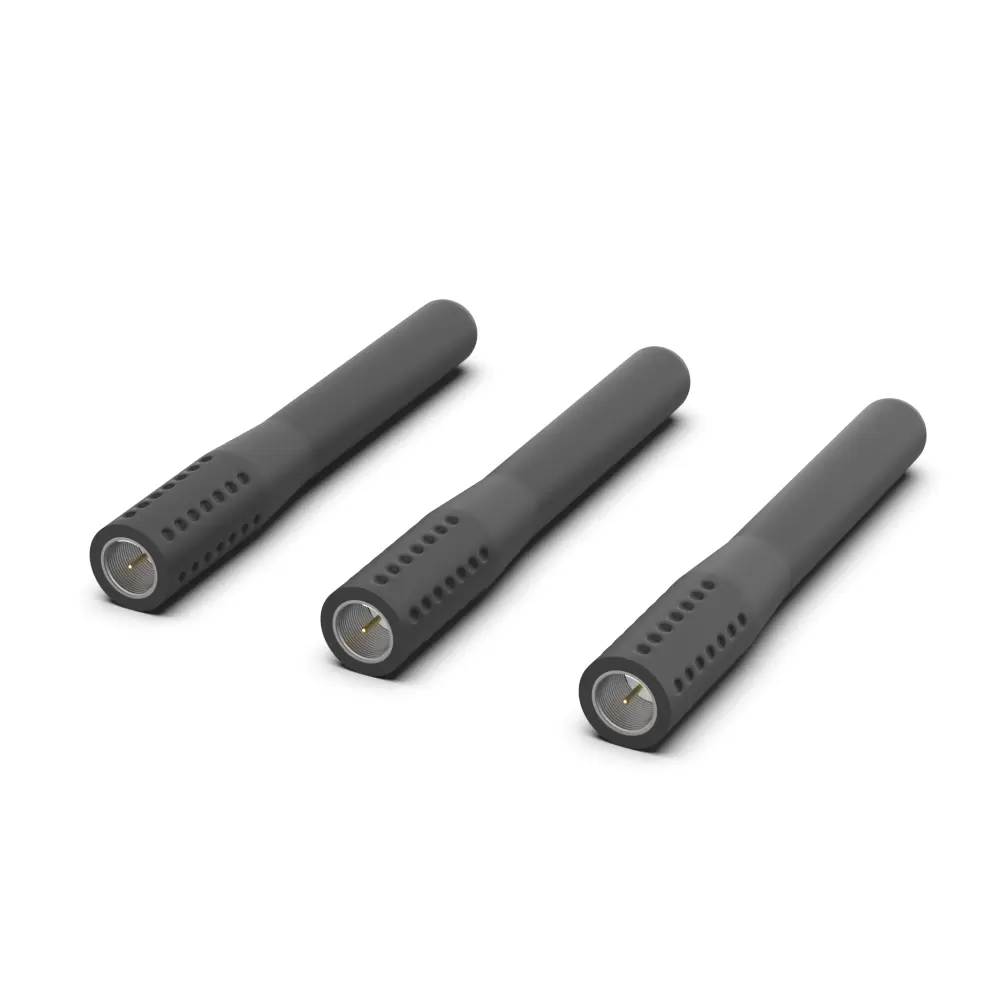

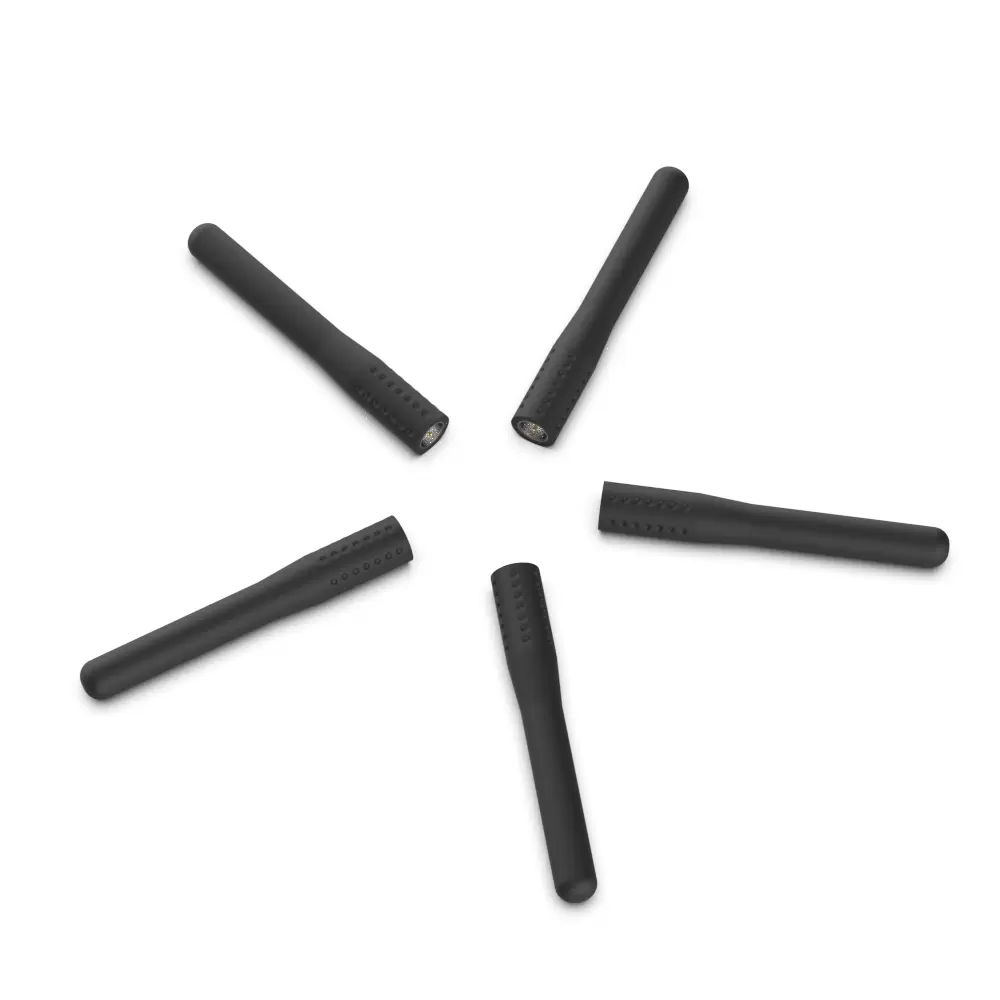

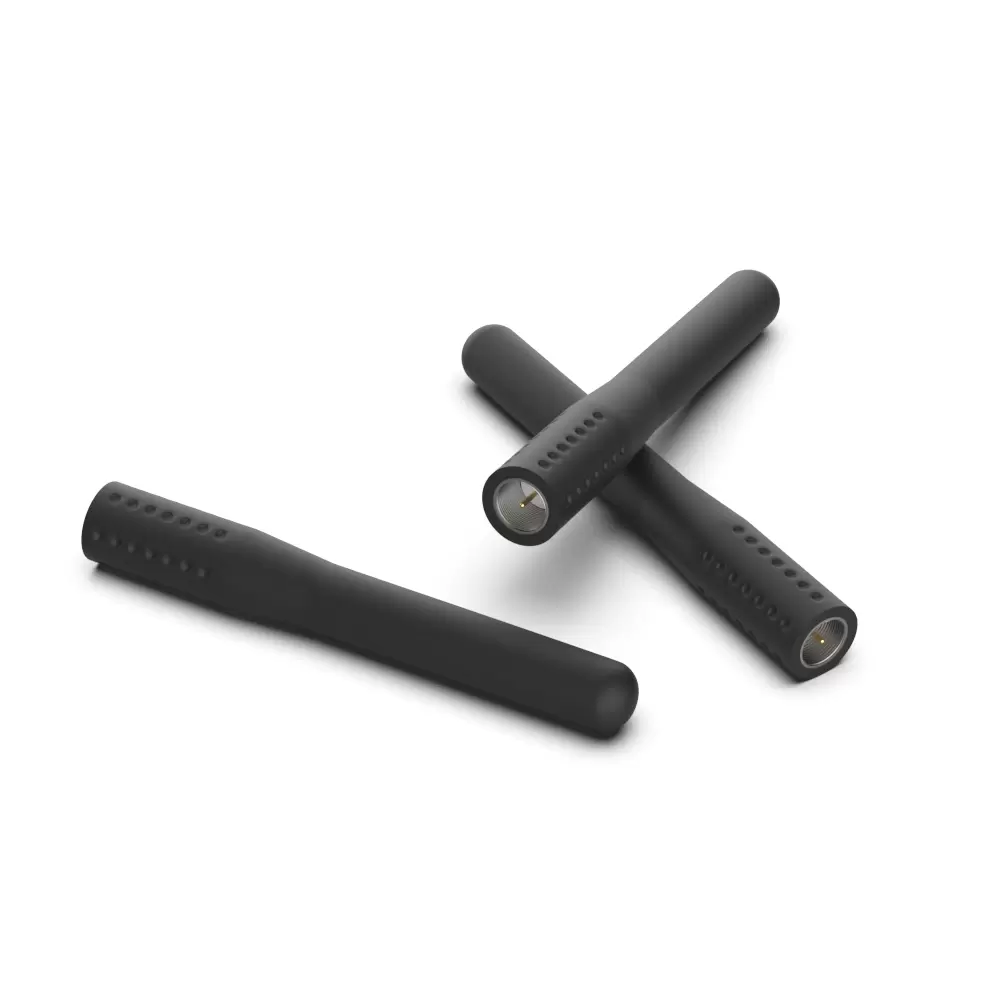

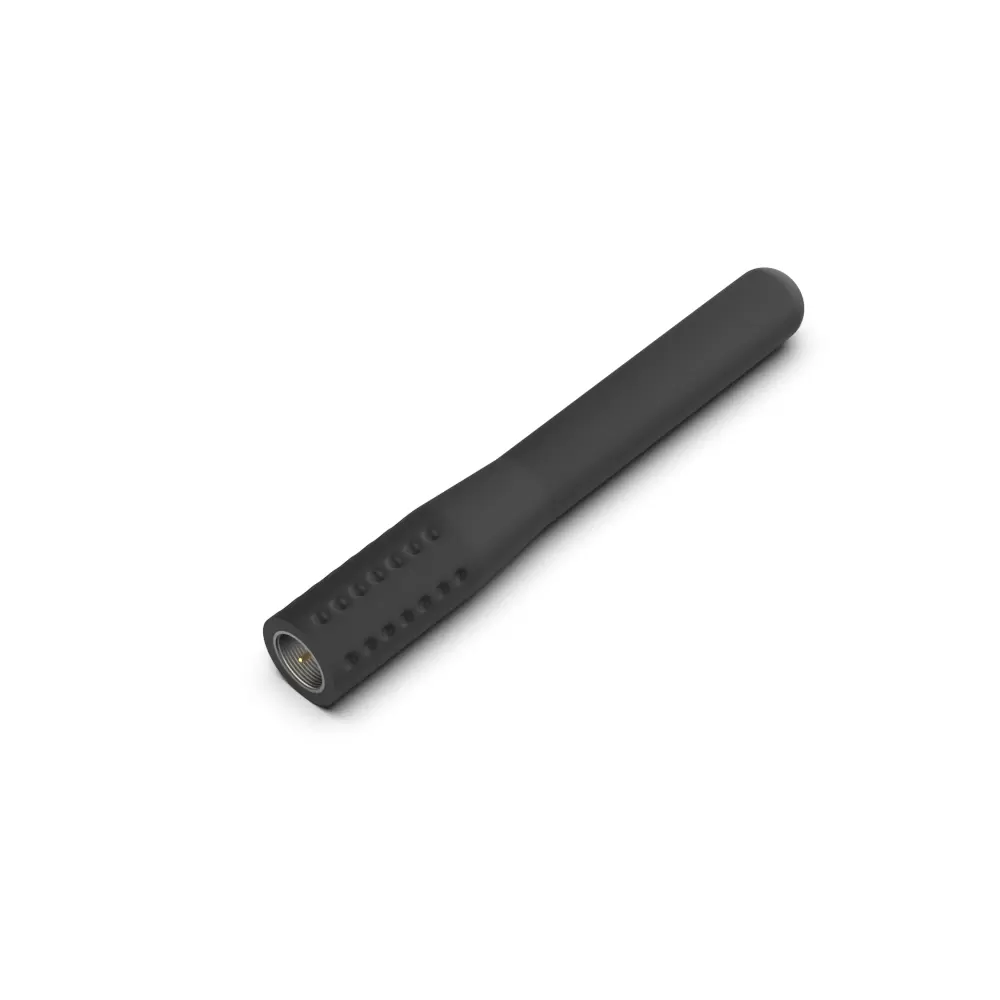

SW-UHF80：400-470MHz Straight Rod Antenna
SW-UHF80 straight rod antenna is specially designed for the UHF band walkie-talkie system by our company. The working frequency range is 400-470MHz. The antenna has good standing wave ratio performance, easy installation, stable performance, good anti-vibration and anti-ageing ability.
n Frequency range: 400-470 MHz

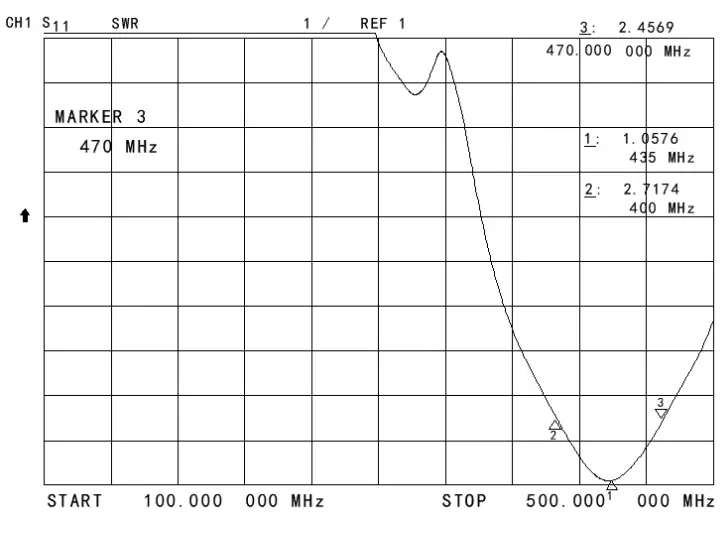

n Voltage standing wave ratio: > 1.5
n Gain: 2.15 dBi
n Input impedance: 50 Ω
n Power capacity: 5W
n Polarization: Vertical polarization

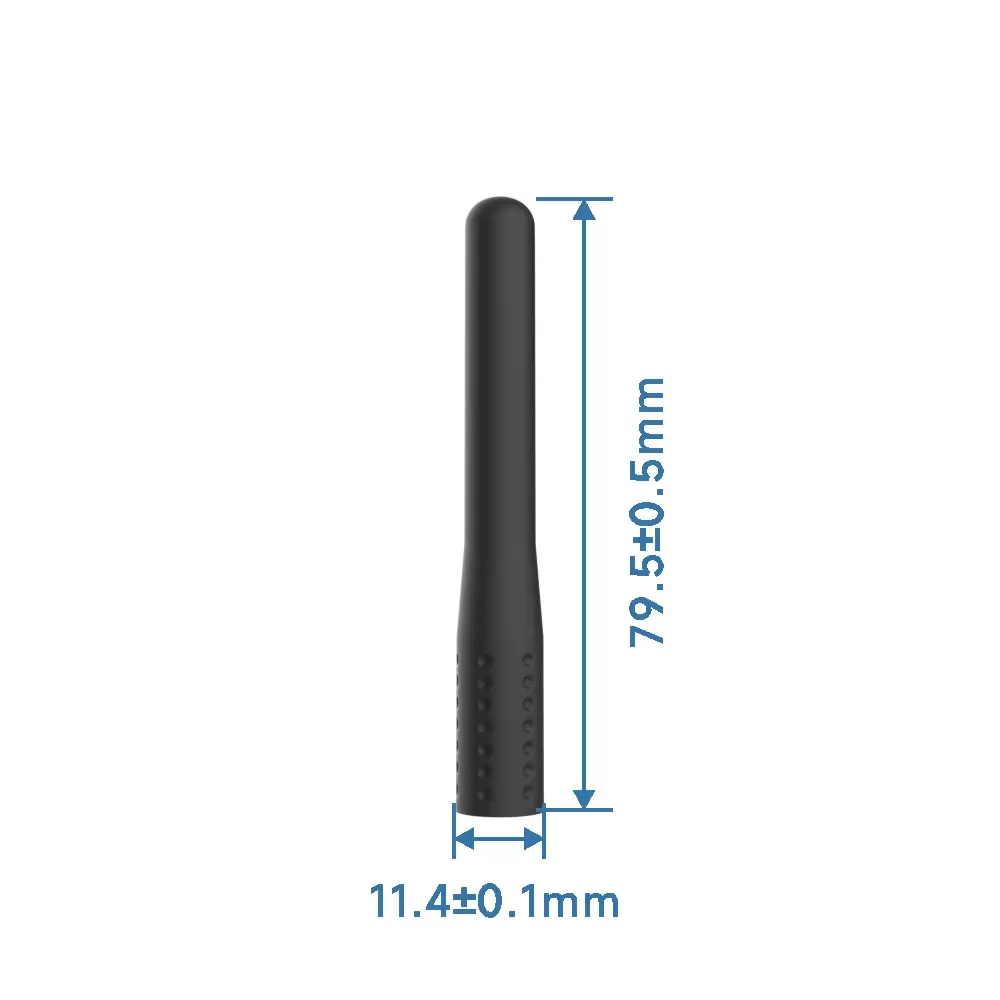

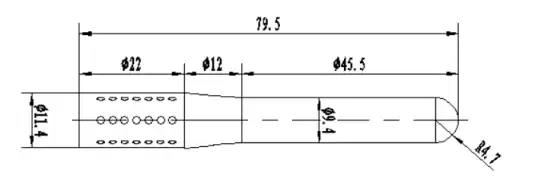

n Height: 79.5±2 mm
n Interface form: SMA-K
n Lead-out cable: None
n Antenna color: Black
n Weight: 8 g
