SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna
SW915-XP1M : 915MHz Small Sucker Antenna

SW915-XP1M : 915MHz Small Sucker Antenna

SW915-XP1M, small sucker antenna, designed specially for 915MHz wireless communication, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter

  • Frequency Range: 915±10 MHz
  • VSWR: ≤ 1.5
  • Gain: 3.0 dBi
  • Input impedance: 50 Ω
  • Max power: 10 W
  • Polarization: vertical polarization
  • Height: 288±3 mm
  • Interface form: SMA-J(customizable)
  • Lead wire: 1M (customizable)
  • Color: black



2.4 GHz High Gain RF Antenna - Omni Antenna - SW2400-WT100

Frequency 915MHz
Type Magnetic
Gain 3dBi
Size (mm) > 150

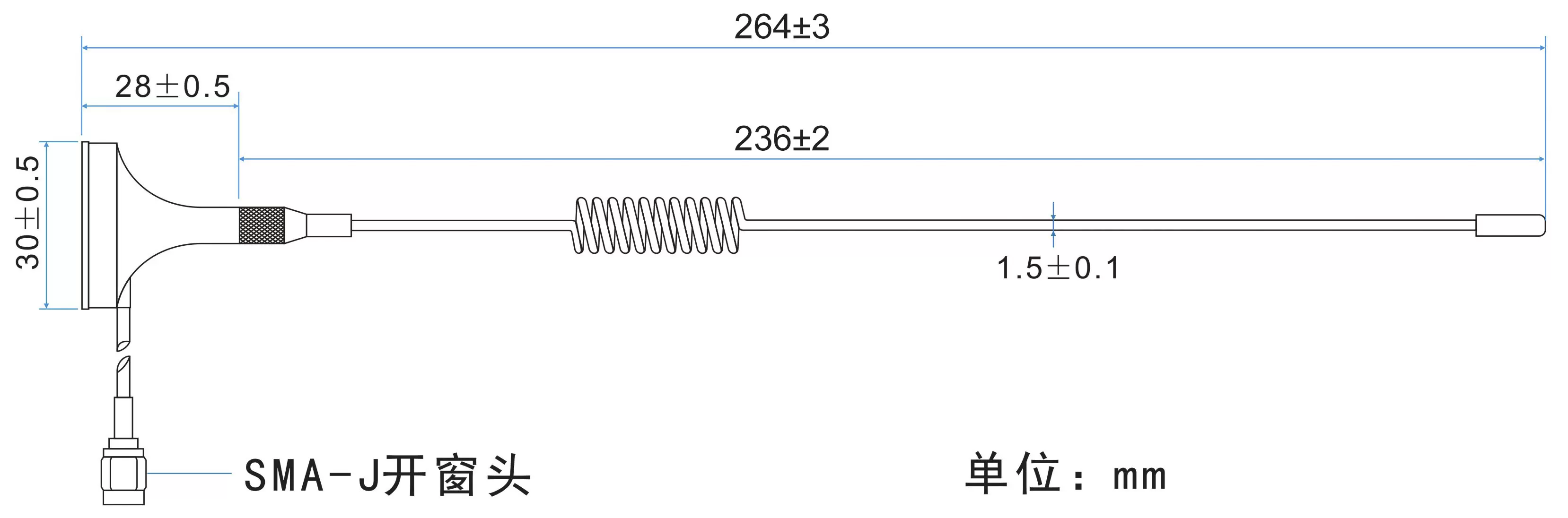

Mechanical size of sucker antenna SW915-XPXM

Antennas have been tested under wireless simulated environment by Network Analyzer.

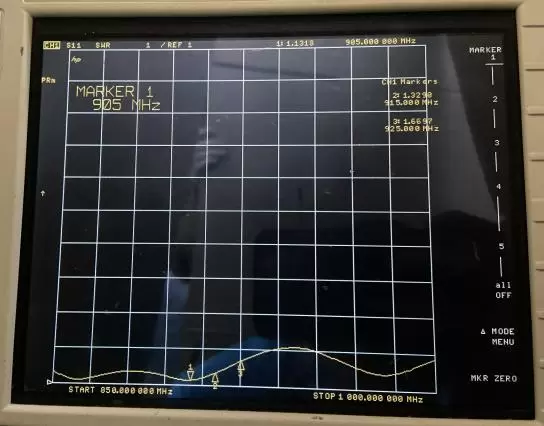

VSWR Charts of sucker antenna SW915-XPXM
