SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna
SW915-ZT48 : 915MHz Straight Rod Antenna

SW915-ZT48 : 915MHz Straight Rod Antenna

SW915-ZT48, a straight rod antenna, designed specially for 915MHz wireless communication and Meter Reading Communication System, it has good VSWR, ingenious structure, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter

  • Frequency Range: 902~928 MHz
  • VSWR: ≤ 2.0
  • Gain: 2.15 dBi
  • Input impedance: 50 Ω
  • Max power: 10 W
  • Polarization: vertical polarization
  • Height: 48mm
  • Interface form: SMA
  • Lead wire: none
  • Antenna Color: black
  • Weight: 10 g
Frequency 915MHz
Type Rod
Gain 2.15dBi
Size (mm) < 50

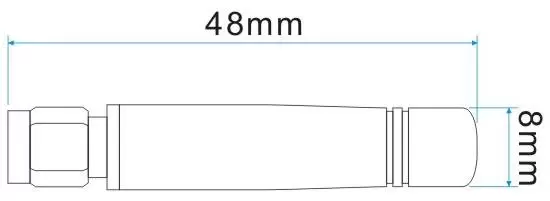

Sizes of 915MHz rod antenna SW915-ZT48



Antennas have been tested under wireless simulated environment by Network Analyzer.

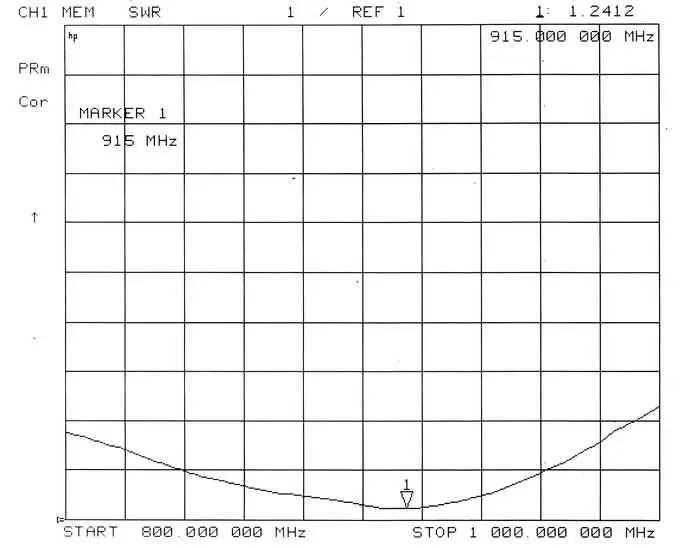

VSWR Charts of 915MHz rod antenna SW915-ZT48
