SW490-WT36 : 490MHz UHF Elbow Rubber Rod Antenna
SW490-WT36 is an rod antenna with right angle connector. It is a dedicated antenna which is designed for a wireless communication system (433MHz).It has good VSWR, easy installation, stable performance and good anti-vibration and anti-aging ability.
Technical Parameter
- Frequency range:490(+/-5) MHz
- VSWR: <= 1.5
- Input impedance: 50 Ω
- Maximum power: 10 W
- Gain: 2.5 dBi
- Polarization: vertical polarization
- Weight: 7 g

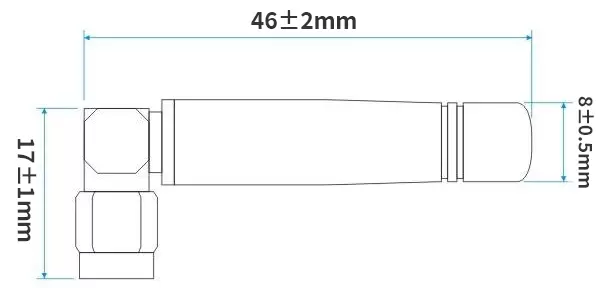

- Height: 46±2mm
- Lead wire: none
- Antenna color: black
- Interface form: SMA-JW
| Frequency | 470/490MHz |
| Type | Rod |
| Gain | 2.5dBi |
| Size (mm) | < 50 |

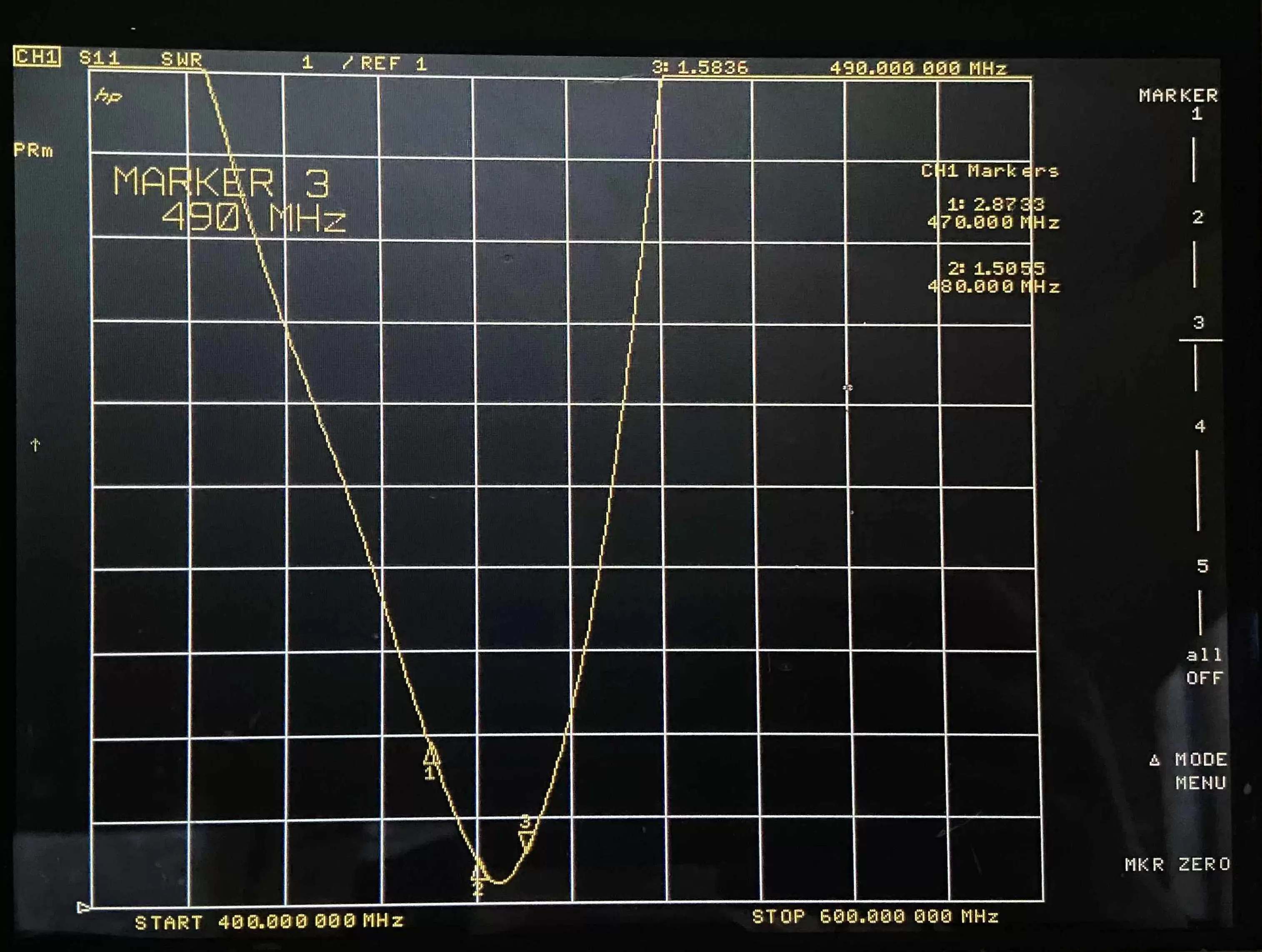

Antennas have been tested under wireless simulated environment by Network Analyzer.
